Air Cooled Band Heater

Short Description:

Heating & Cooling System is 60% open by perforated metal sheet which ensures maximum surface exposure for better cooling. The heater band is covered with Blower cover for mounting the Blower. Advantages of air cooled over liquid cooled operation includes lower cost, easy replacement, low maintenance, no leakage problem and uniform temperature control.


  • FOB Price: US $15- 150 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 7-15 days
  • Product Detail

    Product Tags

    Specification

    Item Name

    Air Cooled Band Heater

    Item No.

    PM-ACBH

    Voltage

    110 V ~ 650 V, 1 or 3 phase

    Wattage

    Customized

    Maximum wattage density

    5 w/sq cm

    Types:

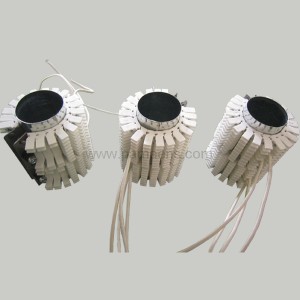

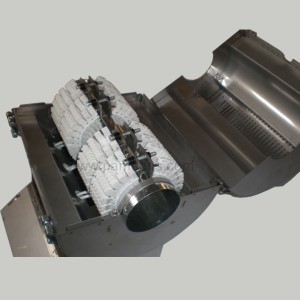

    Air cooled ceramic heater, Air cooled ceramic heater with ceramic fins, Air cooled ceramic heater with copper fins, Air cooled ceramic heater with nickel plated copper fins, Air cooled ceramic heater with aluminum fins

    Fins width

    45mm, 60mm & 75mm

    Sheath temperature

    600°C

    Max. operating temp:

    500°C

    Wattage tolerance

    +/- 5%

    Certificates

    CE, RoHs

    Packaging

    Fumigation free wooden case

    Material

    Core

    Cr20Ni80

    Fins material

    Copper, nickel coated copper, ceramic, aluminum etc

    Shroud

    Stainless steel 304

    Accessories Information

    Connection

    Connection box

    High temperature wire

    Fiber glass wire, stainless steel braided wire, Armour cable etc

    Air cooling fans

    Optional

    Introductions of Air Cooled Band Heater

    Heating & Cooling System is 60% open by perforated metal sheet which ensures maximum surface exposure for better cooling. The heater band is covered with Blower cover for mounting the Blower. Advantages of air cooled over liquid cooled operation includes lower cost, easy replacement, low maintenance, no leakage problem and uniform temperature control.                                         Additionally, Heating & Cooling Systems do not require an expensive cooling tower or heat exchange system, extensive plumbing systems and labor for installation. These factors along with the benefit of being maintenance free make Air Cooled Band Heaters an economical and practical source for your extrusion heating and cooling application.

    The feature of Air Cooled Band Heater

    To heat and cool the barrel

    Low Maintenance

    Easy Replacement

    Improves Quality of finished products

    Space Saving

    Increases Productivity

    Available with Various Diameter, Length, Voltage, Wattage and Configurations.

    Perforated heater with fins to provide faster cooling.

    The applications of Ceramic Band Heater

    Plastic Extrusion

    Injection Molding

    Blow-Molding

    Pressure Molding

    Structural Foam

    Food Industry

    Container Pipe and Tank Heating

    Packaging

    Chemical, Oil & Gas Industries

    Attributes of Air Cooled Band Heater

    These Fins are available in width of 45 mm, 60 mm & 75 mm.

    Aluminum Fins take 25% & Copper fins takes 35% less time to reach set temperature of 350° C than standard Fins.

    Aluminum Fins take 30% & Copper fins takes 35% less time for cooling from 350° C to 100° C than standard Fins.

    If working temperature requirement is around 300° to 350° C, it is recommended to use Aluminium Fins as it is cost wise economical.

    Aluminum & Copper cooling fins have a maximum operating temperature of 450° C.

    These fins can also be used in mounting between heaters as cooling fins.

    RFQ

    1. Diameter and width

    2. Voltage & wattage

    3. Fins type

    4. Wire length if have

    5. Position of thermocouple holes if have

    6. Polished or un polished

    7. Quantity
