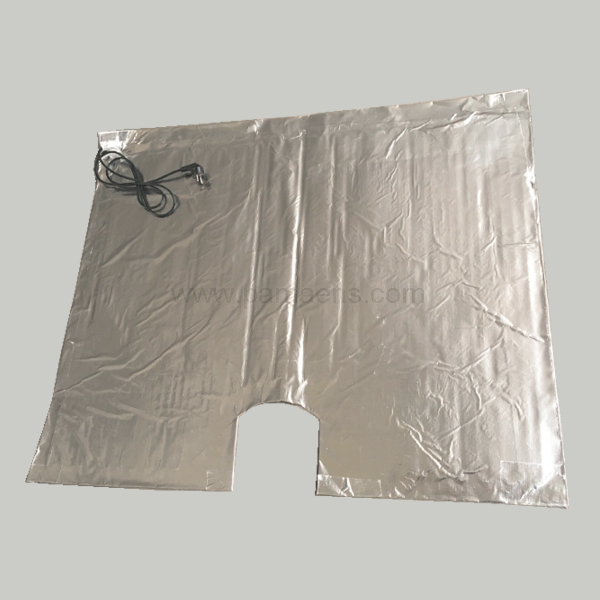

Aluminum Foil Heater

Specification

Item Name

Aluminum Foil Heater

Item No.

PM-AFH

Voltage

110V, 120V, 220V, 230V, 240V

Wattage

500-3000W

Wattage density

400w-3000w per square meter

Dimensions

1.2 X 1 meter, 1 x 1 meter, 1.1 x 1 meter etc

Max. Operation Temp:

120 Deg C

Min. Operation Temp:

-20 Deg C

Standard Thickness

5-30 mm

Certificates

CE

Packaging

Carton box / Fumigation free wooden cas

Material

Internal layer

High temperature resistance glass fiber reinforced aluminum foil

Middle layer

High quality heating wire and aramid fiber (AFRP) insulation

External layer

High temperature resistance glass fiber reinforced aluminum foil

Accessories Information

Thermal switch

80 / 90 / 100 / 110 Deg C

Power cord

one to three meters with customized plug

Introductions of Aluminum Foil Heater

Heating with an IBC Aluminum Foil Heater is an effective and low cost method to heat the contents from the bottom inside an IBC container.
Foil Heaters are manufactured to individual specification for use in a variety of intermediate bulk containers (IBC containers).
Unlike normal IBC aluminum foil heaters produced with a paper inner, our IBC alu heaters are produced with a full body aluminum construction, making our aluminum heaters more stable, durable and capable of withstanding the weight from a fully loaded IBC container.
The aluminum foil heater is very easy to install and to use – simply remove the bulk container from the IBC frame and install the heater in the very bottom on the frame. Insert the container on top of the alu heater, fill the container and you are all set to heat the contents. This also makes the heater ideal for heating while transporting the IBC container.
The aluminum foil heater is equipped with a thermal switch, which limits the heater to a maximum of 50/60°C or 70/80° or 90/100° depending on the thermal switch installed and power density.

The Applications of Aluminum Foil Heater

Defrost or freeze protection of refrigerator or ice box

Freeze protection of plate heat exchangers

Temperature maintenance of heated food counters in canteens

Anti-condensation of electronic or electric control boxes

Hermetic compressors heating

Anti-condensation of bathrooms mirrors

Anti-condensation of refrigerated display cabinets

Domestic appliances, medical……

Advantages of Aluminum Foil Heater

1. Heating up time is short

2. Maximum temperature could be controlled

3. Heating from bottom, prevent the material at bottom from frozen or crystal

4. Good flexibility

5. Low cost and reusable

RFQ

1. Size

2. Voltage & Wattage

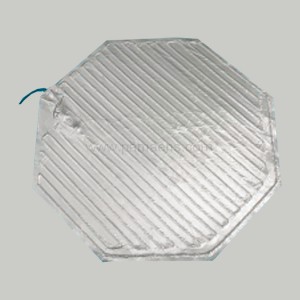

3. Square or octagon

4. What’s the initial temperature of the material

5. What’s the target temperature of the material

6. Plug type (optional)

7. Quantity
