Customized IR Heater with Long Lifetime

Short Description:

PAMAENS Infrared Radiation Ceramic Heaters are efficient, robust heaters which provide long wave infrared radiation. The ceramic heaters and infrared heaters are used in a diverse range of industrial and engineering applications such as thermoforming heaters, packaging and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas. Ceramic elements include ceramic trough elements, ceramic hollow elements, ceramic flat elements, and ceramic infrared bulbs.


  • FOB Price: US $3-15 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 5-15 days
  • Product Detail

    Product Tags

    High Performance IR Heater

    IR Heaters are working under temperature 300°C to 700°C (572°F – 1292°F) producing infrared wavelengths in the range of 2 to 10 micron, which is in the most suitable distance for plastics and many other materials absorb, which makes infrared ceramic heater the most efficient infrared radiant emitter on the market.

    A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.

    Our IR Heaters are designed to produce maximum output in form of heat energy. They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against any damage.
    Longer service life is achieved since the resistance of the heaters is made to remain constant over the whole temperature range. The glaze used in this heater has excellent radiation properties therefore the radiation efficiency is also very high.



    Construction and material of IR Heater

    Insulator: High thermal shock resistance ceramic material

    Resistance wire: High quality Ni80Cr20

    Glaze Layer: good radiation metal oxide materials with moderate additives to increase radiation intensity and enhance the suitability of the glaze.



    Features of IR Heater

    1.     Radiation feature: The monochromatic radiation rate of our infrared ceramic heater reaches 90%, and the reverse radiation rate is larger than 83%.

    2.     Thermal response time: Less than 20 minutes from the room temperature to the set temperature

    3.     Durability: The surface keeps smooth after five times heating and cooling exchanges.

    4.     The radiation surface temperature uniformity: ≤15

    5.     Power error: ≤5%

    6.     Cold insulation resistance: 500V mega meter >2m

    7.     Thermal insulation resistance: 500V megameter >0.5m

    8.     The service life of >3000 hours



    Applications of IR Heater

    In Thermoforming & Vacuum Forming Machines

    In PVC Pipe Belling / Socketing Machines

    In Hot Stamping Machines

    As Heat Therapy Equipment

    In Shrink Packaging



    Products Showcase of IR Heater

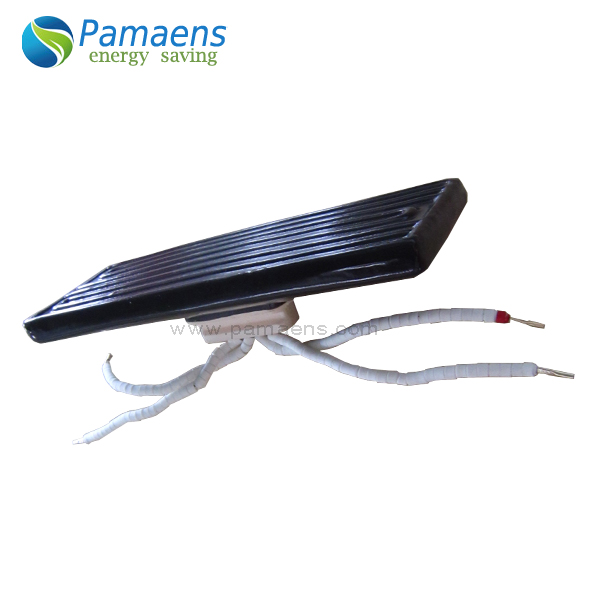

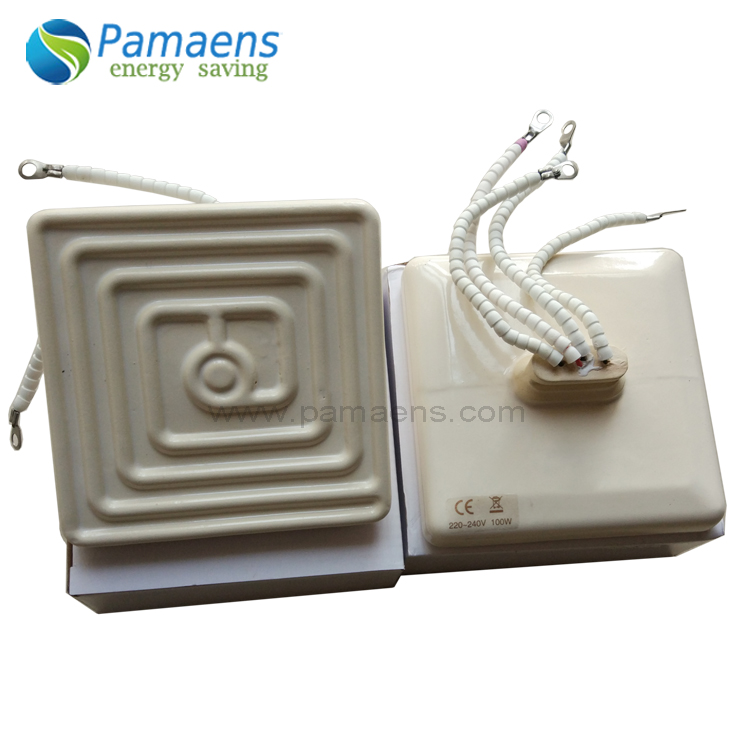

    Infrared ceramic heater-31 Infrared ceramic heater-32
    Infrared ceramic heater-30 Infrared ceramic heater-37
    Infrared ceramic heater-38 Infrared ceramic heater-33
    Infrared ceramic heater-26 Infrared ceramic heater-21



    PACKAGE:

    Standard export carton packing with separate blister inner package.

    DELIVERY TIME:

    3-15 days after confirming order,detail delivery date should be decided according to
    production season and order quantity.

    4


    Company Information
    Factory-1

    Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, R&D and manufacturing heaters, plastic machinery parts and energy saving products. We have strong R&D team, many of our engineers have more than ten years experience on manufacturing heaters, and we have strict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.


    Certifications

    HTB1aRbiXm8YBeNkSnb4q6yevFXau



    Order Guidance of IR Heater



    Length and width of the heater

    Shape of the heater: Hollow, Trough, Flat, ceramic bulb

    Voltage & Power

    Built-in thermocouple type, J type or K type (optional)

    Quantity


    FAQ

    How can I get the sample to check your quality?

    After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.

    What can I get the price?

    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

    What is your term of delivery?

    We accept EXW, FOB or C&F Shanghai, DDU etc. You can choose the one which is the most convenient or cost effective for you.

    What about the lead time for the mass production?

    Our production time is 10-20 days depends on the order quantity and the season you place the order.
