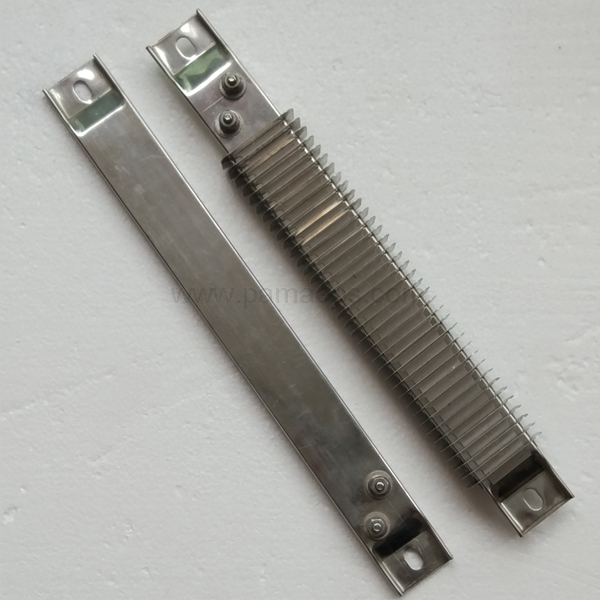

Finned Strip Heater

Short Description:

Finned Strip Heaters are constructed of specially selected high quality materials, beginning with the high temperature alloy resistance wire uniformly coiled and spaced over the width of the heated length of the strip heater. This controlled coil process and replacement assures uniform heat distribution over the entire active surface of the heater. Special care is taken to secure the stud-type terminal to the high-temperature alloy resistance contact.


  • FOB Price: US $15- 45 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 5-15 days
  • Product Detail

    Product Tags

    Specification

    Item Name

    Finned Strip Heater

    Item No.

    PM-FSH

    Voltage

    24-480 V

    Wattage

    Customized

    Section size:

    11 x 32 mm

    Length

    Customized

    Max. Sheath temperature resistance

    1000°C

    Max. operating temp:

    800°C

    Length tolerance

    +/- 1 mm

    Wattage tolerance

    +/- 5%

    Voltage tolerance

    +/- 5%

    Certificates

    CE, RoHs

    Packaging

    Carton box / fumigation free wooden case

    Material

    Core

    Cr20Ni80, high quality Swedish resistance wire is avalible

    Insulation

    steatite ceramics

    Sheath material

    SS304 / SS316L / Incoloy 800

    Accessories Information

    Installation hole size and position

    Customized

    Connection

    Terminals, wires, 90 deg C connectors

    Surface treatment

    Polished and unpolished

    Introductions of Finned Strip Heater

    Finned Strip Heaters are constructed of specially selected high quality materials, beginning with the high temperature alloy resistance wire uniformly coiled and spaced over the width of the heated length of the strip heater. This controlled coil process and replacement assures uniform heat distribution over the entire active surface of the heater. Special care is taken to secure the stud-type terminal to the high-temperature alloy resistance contact.

    The coiled resistance wire is embedded in a special refractory Material that possesses excellent heat transfer characteristics and superior insulation properties. The entire heater assembly is encased in either stainless or chrome steel sheath and is compressed under high pressure. The completed assembly is heated under controlled conditions to bake and semi vitrify the refractory for a rigid, vibration resistant, heavy-duty heating unit.
    Finned Strip Heater can be finned to improve heat transfer. The fins are specially designed to provide maximum surface contact for good heat dissipation into the finned cross sections, thus resulting in rapid heat transfer to the air.

    The feature of Finned Strip Heater

    High heat transfer rates and fast heat up

    Ceramic construction for higher temperatures

    Long life

    Large selection of lengths, sizes and terminations

    Low expansion characteristics

    3-Phase available

    Distributed wattage available

    The applications of Finned Strip Heater

    Our Ceramic Strip heaters provide a dependable, versatile and efficient heat source for a wide range of applications, such as:

    Heating air

    Injection and Extrusion dies

    Food tables and platens

    RFQ

    Dimensions

    Voltage

    Capacity

    Terminal position

    Installation hole size and position

    Operation temperature
