Specification |
|
|
Item Name |
|
|
Item No. |
PM-FCH |
|
Voltage |
24-480 V |
|
Wattage |
Customized |
|
Cross section size |
⌀1.8, 3.0 x 3.0, 3.30 x 3.30, 3.5 x 3.5, 4 x 4, 4.20 x 2.20, 4.20 x 2.50 etc |
|
Dimensions |
Customized |
|
Intermittent operating max. temp: |
1500°F (815°C) |
|
Continuous operating temp: |
1200°F (649°C) |
|
Coil diameter tolerance |
-0.1mm to -1mm |
|
Length tolerance |
+/- 1 mm |
|
Wattage tolerance |
+/- 5 w |
|
Cold part length |
Could be customized |
|
Certificates |
CE, RoHs |
|
Packaging |
Separate packing with carton box / fumigation free wooden cas |
|
Material |
|
|
Core |
Cr20Ni80, high quality Swedish resistance wire is avalible |
|
Insulation |
High purity compacted magnesium Oxide |
|
Sheath material |
SS304, SS316, Inoloy 800 |
|
Cable |
Nylon, metal braided, fiberglass ,silicone rubber, Kevlar |
|
Accessories Information |
|
|
Built in thermocouple |
K type or J type (optional) |
|
Encased cover |
Stainless steel 304 (optional) |
|

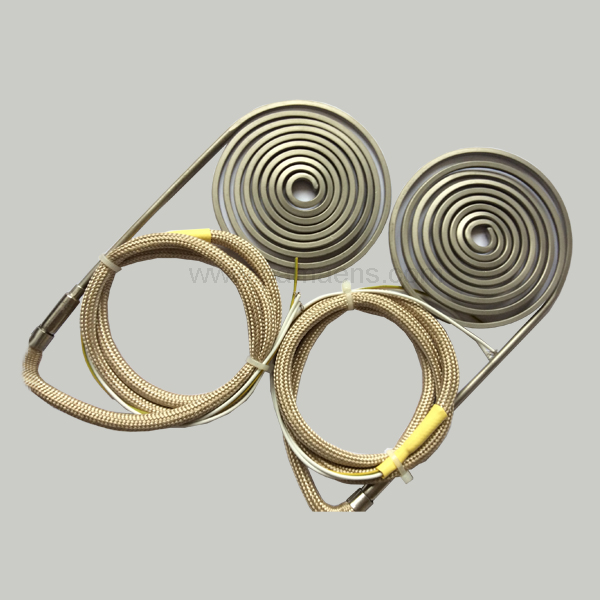

Introductions of Flat Coil Heater |
|
|
Flat coil Heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available. Coil heaters could be coiled, to form coil heaters that are ideal whenever a large amount of heat is required in a confined space. Coil heaters have many applications but are mostly utilized as powerful heating cells inside hot runner nozzles in plastic injection molding. |
|
|
The feature of Flat Coil Heater |
|
|
Intermittent operating temperatures to 1500°F (815°C) |
|
|
Continuous operating temperatures to 1200°F (649°C) |
|
|
Rapid heating and cooling due to low mass construction |
|
|
Heating elements sealed from contamination |
|
|
Stainless steel sheath for corrosion resistance |
|
|
Optional internal thermocouple for temperature control |
|
|
The applications of Flat Coil Heater |
|
|
Injection molding machine nozzle |
|
|
Hot Runner Nozzles & Bushings |
|
|
Packaging machineries |
|
|
Hot runner Injection moulds. |
|
|
Injection & Blow Molding Machine Nozzles. |
|
|
PET preform & Thin wall container Moulds |
|
|
Hot runner Manifolds. |
|
|
RFQ |
|
|
1. Diameter |
|
|
2. Length |
|
|
4. Voltage & wattage |
|
|
5. What type of lead wire and it’s length |
|
|
6. Quantity |
|
