Specification |
|
|
Item Name |
IBC Heater Jackets |
|
Item No. |
PM-THJ |
|
Voltage |
90-250v, 380v |
|
Wattage |
Standard is 4500w, but could be customized |
|
Wattage density |
100w-3000w per square meter |
|
Dimensions |
4400 x 1100 mm, could be customized |
|
Heating zones: |
One two three heating zones desigh is available |
|
Max. Operation Temp: |
260 Deg C or 500 Deg F |
|
Min. Operation Temp: |
-50 Deg C or -58 Deg F |
|
Standard Thickness |
5-30mm |
|
Certificates |
CE |
|
Packaging |
Carton box / Fumigation free wooden cas |
|
Material |
|
|
Internal layer |
Silicone coated glass fiber cloth / Oxford cloth |
|
Middle layer |
High quality heating wire and aramid fiber (AFRP) insulation |
|
External layer |
Silicone coated glass fiber cloth / glass fiber reinforced aluminum cloth |
|
Accessories Information |
|
|
Digital adjustable thermostat |
0-190 deg C |
|
Power cord |
one to three meters with customized plug |
|
Insulation cover for lip |
1200 x 1000 mm |
|

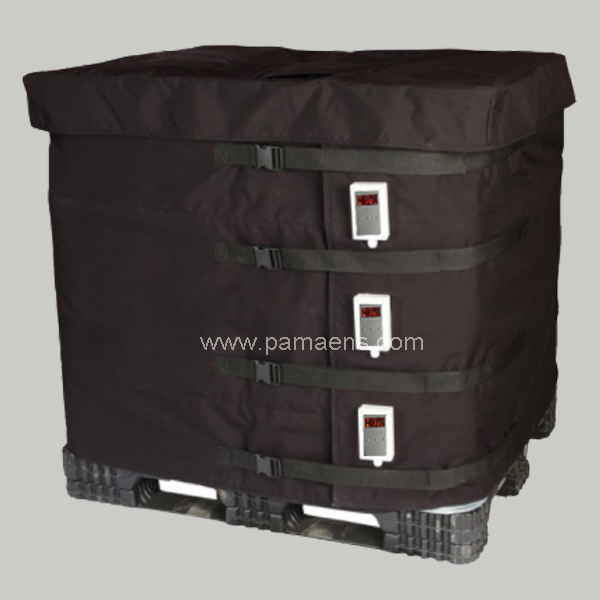

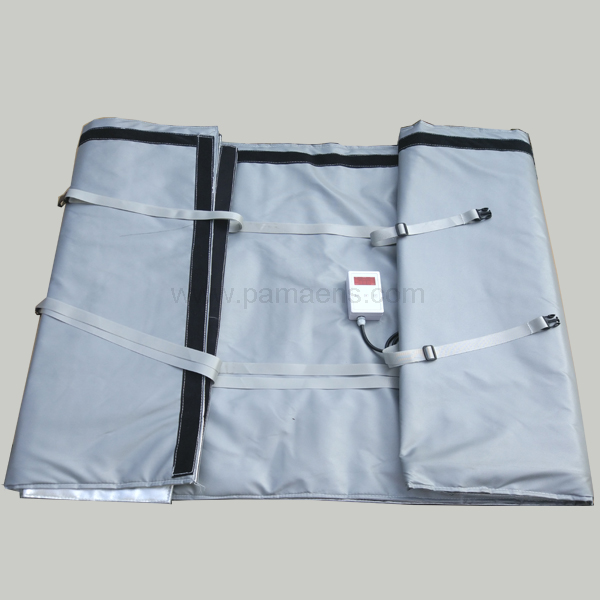

Introductions of IBC Heater Jackets |
|
|
IBC Heater Jackets are full coverage heating soluction, that can be used indoor- and outdoor,which is also called as tote heater. It is often used to heat the contents stored in the intermediate Bulk Container (IBC).It can speed up the flow inside the bulk container and reduce the viscosity of the contents, which make it easy to empty a container and save waste contents. It can raise and maintain the temperature of the contents with thermostats or digital temperature controller.The wrap-around design of IBC heater blanket can reduce the heat loss and save energy, it makes the heater very efficient. |
|
|
The feature of IBC Heater |
|
|
A.Thickened the thermal insulation layer make the heating blanket has better thermal insulation, and faster heating up. |
|
|
B. Smoothly lied resistant wire makes the heating blanket heating Uniform. |
|
|
C. High temperature resistance flame retardant fabrics are used. |
|
|
D. The heating blanket is designed with connection and fixation device, by which the heating area could extend easily. |
|
|
E. Different with insulation surface, the temperature tolerance of heating surface is more than 260℃. |
|
|
F. The heating blanket is built in temperature control in case of burning of the heating blanket by abnormal use. |
|
|
G. Several temperature probes are layout uniformly, making sure the uniform heating. |
|
|
Advantages of IBC Heater Jackets |
|
|
1. Integrated type |
|
|
2. Custom size and shape |
|
|
3. Full coverage heating and insulation, high thermal and heating efficiency |
|
|
4. Good flexibility |
|
|
5. Uniform heating |
|
|
6. Built-in overheat switch to prevent accidental burning of heated body |
|
|
7. Large range, high power, fast heating. |
|
|
8. High insulation performance of all material |
|
|
9. Easy to install and remove, safer and adjustable |
|
|
RFQ |
|
|
1. Dimension of the tank |
|
|
2. Voltage & Wattage |
|
|
3. What kind of material inside the tank |
|
|
4. What’s the initial temperature of the material |
|
|
5. What’s the target temperature of the material |
|
|
6. Plug type (optional) |
|
|
7. Quantity |
|
