Infrared Heater Ceramic 120 x 120 mm

Short Description:

PAMAENS Infrared Heater Ceramic are efficient, robust heaters which provide long wave infrared radiation. The ceramic heaters and infrared heaters are used in a diverse range of industrial and engineering applications such as thermoforming heaters, packaging and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas. Ceramic elements include ceramic trough elements, ceramic hollow elements, ceramic flat elements, and ceramic infrared bulbs.


  • FOB Price: US $3-15 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 5-15 days
  • Product Detail

    Product Tags

    High Performance Infrared Heater Ceramic 120 x 120 mm

    PAMAENS Infrared Heater Ceramic are efficient, robust heaters which provide long wave infrared radiation. The ceramic heaters and infrared heaters are used in a diverse range of industrial and engineering applications such as thermoforming heaters, packaging and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas. Ceramic elements include ceramic trough elements, ceramic hollow elements, ceramic flat elements, and ceramic infrared bulbs.

    A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.

    Our Infrared Heaters are designed to produce maximum output in form of heat energy. They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against any damage.
    Longer service life is achieved since the resistance of the heaters is made to remain constant over the whole temperature range. The glaze used in this heater has excellent radiation properties therefore the radiation efficiency is also very high.

    Product Details:

     Infrared ceramic heater-26

    Infrared Ceramic Bulb

    45x60mm
    60x70mm
    75x104mm
    80x77mm
    90mmx106mm
    125mmx100mm

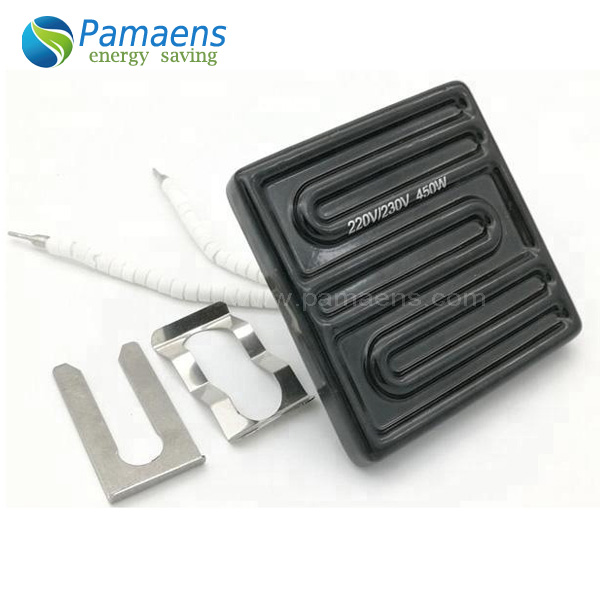

    Infrared ceramic heater-28

    Flat Infrared Ceramic Heater

    60*60mm

    120mmx60mm

    122mmx60mm

    120mmx120mm

    122mmx122mm

    240mmx60mm

    245mmx60mm

    240mmx80mm

    300mmx300mm

    With K or J type Thermocouple

    Provided Customized Service

    Infrared ceramic heater-27

    Curved Infrared Ceramic Heater

    60*60mm

    120mmx60mm
    122mmx60mm

    120mmx120mm
    122mmx122mm
    240mmx60mm
    240mmx80mm

    245mm*60mm
    With K or J type Thermocouple
    Provided Customized Service


    Technical Data:
    Infrared Heater Ceramic 120 x 120 mm
    Material
    High Quality Ceramic
    Max operating temp
    800ºC
    Voltage
    110V-480V or as customer’s demand
    Wattage
    1.5w-10000w
    Shape
    Flat/Curved/Bulb
    Resistance wire element
    High Quality Nickel chrome wire
    Melting point
    1350ºC
    Max wattage
    6.5w/CM2
    Useful wavelength range
    2 to 10 µm
    Average operating life
    Up to 20,000 hrs depending on conditions
    Cold areas
    Depends on length and diameter 5-25mm
    Internal thermocouple
    K or J type
    Recommended radiation distance
    100 mm to 200 mm
    Application:

    Plastics:

    • Thermoforming

    • Vacuum forming

    • Curing extruded parts

    • Drying Ceramic

    • Laminating

    Electronics:

    • Preheat PCBs

    • IR reflow ovens for SMT

    Paper:

    • Speed drying coated paper

    • Adhesive activation

    Textiles:

    • Drying dyed/printed fabric

    • Curing latex coatings

    Ceramic:
    • Drying glazes/pigments
    Thin Film Deposition:
    • Vacuum coating substrates
    Wood/Furniture:
    • Heating bonded/painted/plastic
    coated components
     • Drying same components

    Food:

    • Warming

    • Baking

    Paint:

     • Drying lacquers/finishes
    • Baking lacquers/finishes

    Packaging:

    • Heat shrink

    • Forming

    Printing:

    • Ink drying



    Different Colors For Reference:

    Features:

    1.Long life – They have a long service life due to an embedded heating coil
    2.Very accurate – They can be controlled with an accuracy of 1°C due to an integrated thermocouple.
    3.Suitable for food sector – The surface is clean and does not oxidize.
    4.Suit various applications – They are available in many sizes, wattages and operating voltages.
    5.Quick mounting or replacement – They have a simple fastening system.
