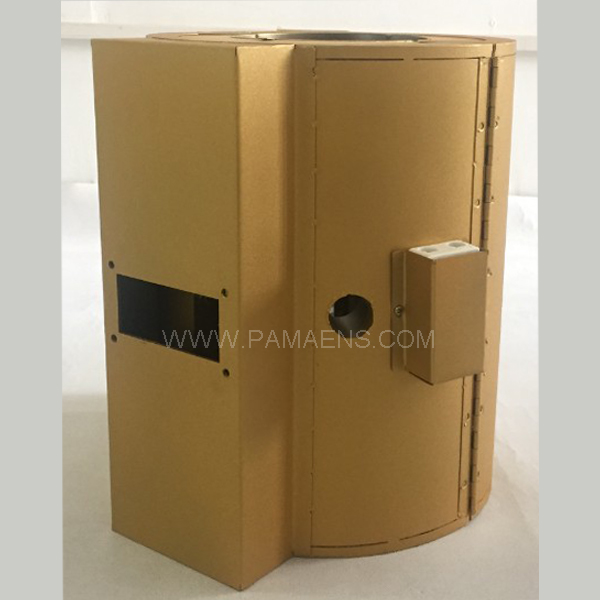

Nano Band Heater

Short Description:

Nano Band Heater is one of the best heating solutions for plastic machines which has better structure and higher heating efficiency than the traditional band heater such as ceramic or mica band heaters. Infrared energy saving band heater is called nano infrared heating band, far infrared energy heating band, nano band heater etc.


  • FOB Price: US $30- 99 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 7-15 days
  • Product Detail

    Product Tags

    Specification

    Item Name

    Nano Band Heater

    Item No.

    PM-NBH

    Voltage

    110-480 V

    Wattage

    Customized

    Thickness

    More than 45 mm

    Dimensions

    Customized

    Max. operation temp.

    800°C

    Diameter tolerance

    +/- 1 mm

    Width tolerance

    +/- 1 mm

    Wattage tolerance

    +/- 5 w

    Cold part length

    Could be customized

    Certificates

    CE, RoHs

    Packaging

    Separate packing with carton box / fumigation free wooden cas

    Material

    Heating element

    High quality halogen heating elements

    Insulation

    Aero gel insulation blanket or glass fiber insulation blanket

    Sheath material

    SS304/SS316

    Accessories Information

    Connection

    connection box, ceramic block

    Cable

    Nylon, metal braided, fiberglass ,silicone rubber, Kevlar (optional)

    Introductions of Nano Band Heater

    Nano Band Heater / Energy Saving Infrared Band Heater is one of the best heating solutions for plastic machines which has better structure and higher heating efficiency than the traditional band heater such as ceramic or mica band heaters. Infrared energy saving band heater is called nano infrared heating band, far infrared energy heating band, nano band heater etc.

    Energy saving nano heaters changed the traditional heating mode, which heat the barrel directly by infrared radiation, rather than heating conduction from the resistance wire to the heater than to the barrel like traditional heaters, and the heat losing badly during the process. The heating efficiency of our infrared energy-saving band heater is as high as 99.8%, which is much higher than traditional heaters, the heating efficiency of which is only around 60%.

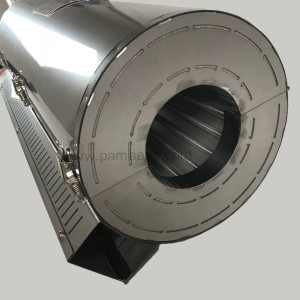

    The construction of our infrared energy-saving band heater is infrared heating tube insulated by aerogel insulation and covered by stainless steel 304 shroud. Aero gel blanket is the insulation materials with smallest heat conductivity coefficient, which could reduce heat losing obviously.

    As the infrared heating tube heat the barrel directly, and the aero gel insulation stopped heating loosing efficiently, the surface temperature of our infrared energy-saving band heater could be as low as 35-50 deg c.

    The feature of Nano Band Heater

    Low surface temperature, the surface temperature could be as low as 35-50 deg C.

    High energy-saving rate, the maximum energy saving rate could reach 60%.

    High heating speed, our infrared energy-saving heater could heat the barrel from room temperature to the working temperature rapidly, saving 50% heating-up time

    Long service life, the normal life time of infrared energy-saving band heater is more than 3 years.

    Simple installation, our infrared energy-saving band heater does not change the wiring, which could replace your original heaters directly.

    Wide Applications: injection molding machine, granulator, extruder, drawing machine, blown film machine, blow molding machine, Laminating machine and other plastic machinery and other equipments.

    The applications of Energy Saving Nano Heater

    Injection molding machine

    Granulator

    Extruder,

    Drawing machine

    Blown film machine

    Blow molding machine

    Laminating machine

    Other plastic machinery and other equipments

    The Advantages of Energy Saving Nano Heater

    1.     Improve electro thermal conversion rate – over 99.8% (nano carbon silicon material).

    2.     Improve heat transmission efficiency (zero medium heat radiation, specific wave length infrared radiation).

    3.     Reduce heat loss (aero gel insulation layer).

    4.     Energy-saving rate: 30%-60%.

    5.     Surface temperature is around 50℃- significantly improves workshop environment.

    6.     Simple installation – just like installing normal resistance heaters.

    7.     SUS cover which is stable and long usage life.

    RFQ

    1. Diameter and width

    2. Voltage & wattage

    3. What type of lead wire and it’s length (optional)

    4. Quantity
