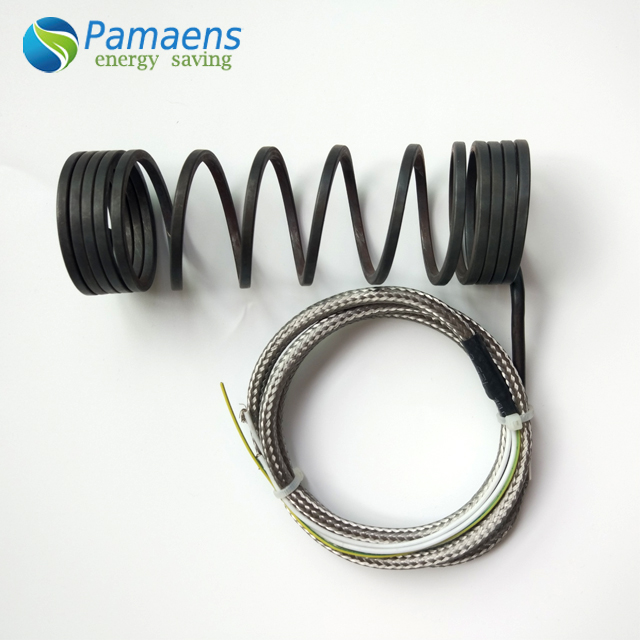

Nozzle Coil heater

Short Description:

Nozzle Coil heaters are called coil heaters or cable heaters too, which are high performance mini tubular heaters that have small rectangular, square or round cross sections that are flexible and can acquire different shapes and configurations. The sheath material of standard spring heater is stainless 304; their heating core is coiled or straight solid Nickel Chrome wire. Coil heaters with thermocouples are also available. Our coil heaters are stainless steel color or deep green with surface treatment.


  • FOB Price: US $15- 45 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 5-15 days
  • Product Detail

    Product Tags

    Introduction of Nozzle Coil heater

    Nozzle Coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.



    Datasheet of Nozzle Coil heater

    Sheath of coil heater: SUS304

    Insulation of coil heater: Compacted magnesium Oxide

    Heating conductor: NiCr8020

    Thermocouple: K type, J type (optional)

    Leads: Stainless steel braided wire, PTFE wire, glass fiber wire ( On demand)

    Voltage: 24V to 415V

    Temperature resistance: Maxi 800 cent degree



    Outlet types of Nozzle Coil heater

    1. Radial type

    2. Tangential type

    3. Azial type



    Standard section size  of Nozzle Coil heater

    Ø 1.8mm, Ø 3.0mm
    Ø 3.3mm,  Ø 4,0 mm
    2.2 x 4.0 mm, 2.0 x 4.2 mm
    2.2 x 4.2 mm,  2.5 x 4.0 mm
    2.5 x 4.2 mm,  2.7 x 4.5 mm
    2.7 x 4.2 mm,  3.0 x 3.0 mm
    3.0 x 4.5 mm,  3.3 x 3.3 mm
    Other size could be customized.



    Standard size of Nozzle Coil heater

    230V Total length straight (incl. cold length)
    2,2 x 4,2 mm
    Ø3,3/3,0×3,0mm
    cold: 65 mm
    Ø 3,0mm
    cold: 65mm
    3,2×3,2mm
    Ø 4,0 mm
    cold:40mm
    2,5×4,0mm
    cold:40mm
    Other types on request
    150 W 265 mm - - -
    175 W - 365 mm 250 mm -
    200 W 315 mm - 300 mm 250 mm
    225 W 345 mm - 350 mm 300 mm
    250 W 400 mm 515 mm 400 mm 350 mm
    290 W 450 mm - 450 mm 400 mm
    330 W - 615 mm 500 mm 450 mm
    350 W 525 mm - - -
    400 W 585 mm 765 mm 600 mm 500 mm
    470 W 665 mm - 700 mm 600 mm
    550 W - - 800 mm 700 mm
    620 W 825 mm - 900 mm 800 mm
    690 W 965 mm - - -
    700 W - - 1000 mm 900 mm
    800 W - - - 1000 mm
    850 W 1165 mm - 1200 mm -
    950 W 1265 mm - 1400 mm 1200 mm
    1000 W - - - -
    1100 W 1465 mm - 1600 mm 1400 mm
    1200 W 1615 mm - 1800 mm 1600 mm
    1400 W 1815 mm - - -
    1600 W 2015 mm - - -
    1800 W - - - -
    2000 W - - - -
    2200 W -



    Product showcase of Nozzle Coil heater

    265w coil heater 265w coil heater
    265w coil heater 265w coil heater
    265w coil heater 265w coil heater
    265w coil heater 265w coil heater


    Our Services

    265w coil heater





    How to order

    You may provide us below specifications:

    1. Diameter
    2. Width
    3. Voltage
    4. Power
    5. Wire length
    6. Thermocouple type, K type or J type (Optional)
    7. Quantity

    Company Information

    Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, R&D and manufacturing heaters, plastic machinery parts and energy saving products. We have strong R&D team, many of our engineers have more than ten years experience on manufacturing heaters, and we have strict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.
