Pin Type Thermocouple

Short Description:

Thermocouples are suitable for measuring over a large temperature range, from −270 up to 3000 °C (for a short time, in inert atmosphere).Applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, other industrial processes and fog machines.


  • FOB Price: US $2- 30 / Piece
  • Min.Order Quantity: 10 Piece/Pieces
  • Supply Ability: 100000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Product Detail

    Product Tags

    Specification

    Item Name

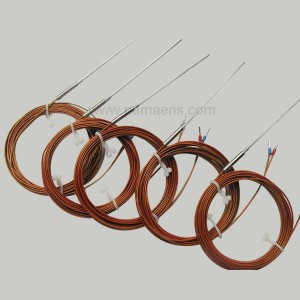

    Pin Type Thermocouple / Needle Thermocouple

    Item No.

    PM-P-TM

    Size

    Customized

    Calibrations of thermocouple

    K, J, E, T, PT100 etc

    Response time

    1-5 s

    Temperature

    0 to 1200 deg C

    Probe material

    Miner coated and stainless steel sheaths

    Probe diameter

    1-3 mm

    Probe length

    Customized

    Accuracy

    Class A or Class B

    Certificates

    CE, RoHs

    Packaging

    Fumigation free wooden case

    Material

    Probe

    SS 304, SS 316L

    Wire

    Fiber glass wire, SS braided wire, Teflon wire, PETF wire, silicone wire etc

    Accessories Information

    Thread or flange

    Customized

    Connection box

    Optional

    Connectors

    Optional

    Introductions of Pin Type Thermocouple / Needle Thermocouple

     Thermocouples are suitable for measuring over a large temperature range, from −270 up to 3000 °C (for a short time, in inert atmosphere).Applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, other industrial processes and fog machines. They are less suitable for applications where smaller temperature differences need to be measured with high accuracy, for example the range 0–100 °C with 0.1 °C accuracy. For such applications thermistors, silicon bandgap temperature sensors and resistance thermometers are more suitable

    The feature of Pin Type Thermocouple / Needle Thermocouple

     Short response time, high accuracy

     Stainless steel braided or hose protection

     K, J, T, E and PT100 calibrations

     Grounded, ungrounded and exposed junctions

     Customized diameter, sheath lengths and lead length

     Epoxy sealed cold ends

     Flexible extensions

     Miner coated and stainless steel sheaths

     Straight, 45° bend or 90° bend

     12 mm and 15 mm locking bayonet caps

    The applications of Pin Type Thermocouple / Needle Thermocouple

    1. Food processing equipment

    2. De-icing

    3. Plating baths

    4. Industrial processing

    6. Medical equipment

    7. Pipe tracing control

    8. Industrial heat treating

    9. Packaging equipment

    10. Liquid temperature measurement

    11. Refrigerator temperature control

    12. Oven temperature control

    Datasheet

    Type

    Temperature range (°C)

    Tolerance class (°C)

    Continuous

    Short-term

    One

    Two

    Low

    High

    Low

    High

    K

    0

    1100

    −180

    1300

    −40 – 375: ±1.5

    −40 – 333: ±2.5

    375 – 1000: ±0.004×T

    333 – 1200: ±0.0075×T

    J

    0

    750

    −180

    800

    −40 – 375: ±1.5

    −40 – 333: ±2.5

    375 – 750: ±0.004×T

    333 – 750: ±0.0075×T

    N

    0

    1100

    −270

    1300

    −40 – 375: ±1.5

    −40 – 333: ±2.5

    375 – 1000: ±0.004×T

    333 – 1200: ±0.0075×T

    R

    0

    1600

    −50

    1700

    0 – 1100: ±1.0

    0 – 600: ±1.5

    1100 – 1600: ±0.003×(T − 767)

    600 – 1600: ±0.0025×T

    S

    0

    1600

    −50

    1750

    0 – 1100: ±1.0

    0 – 600: ±1.5

    1100 – 1600: ±0.003×(T − 767)

    600 – 1600: ±0.0025×T

    B

    200

    1700

    0

    1820

    Not available

    600 – 1700: ±0.0025×T

    T

    −185

    300

    −250

    400

    −40 – 125: ±0.5

    −40 – 133: ±1.0

    125 – 350: ±0.004×T

    133 – 350: ±0.0075×T

    E

    0

    800

    −40

    900

    −40 – 375: ±1.5

    −40 – 333: ±2.5

    375 – 800: ±0.004×T

    333 – 900: ±0.0075×T

    Chromel/AuFe

    −272

    300

    N/A

    N/A

    Reproducibility 0.2% of the voltage.

    Each sensor needs individual calibration.

    RFQ

    Type of thermocouple, such as K type, J type, T type, E type or PT100 etc

    Size of thermocouple

    Type of the extended wire and length

    Thread type if have

    Quantity
