Plastic Extruder Heater

Introduction of Plastic Extruder Heater

Plastic Extruder Heater are specifically designed for high operating temperature applications. The external temperature of a ceramic band is approximately 400°F while the operating temperature can reach approximately 1400°F. Ceramic bands are manufactured with a stainless steel cover and are fiber insulated preventing heat loss making them highly energy efficient and reducing operating costs. The interlocking ceramics make these heaters flexible, less prone to expansion problems and with a good thermal conductivity, the fitting around a barrel is less critical than a Mica band. Ceramic Barrel Heater Bands are easy to install and have a long functional life.



Applications of Plastic Extruder Heater

Plastic Extrusion

Injection Molding

Blow-Molding

Pressure Molding

Structural Foam

Food Industry

Container Pipe and Tank Heating

Packaging

Chemical, Oil & Gas Industries



Specifications of Plastic Extruder Heater

Sheath temperature: up to 1000°F

Maximum watts per square inches are determined by the diameter, width and application.

Manufactured with steatite ceramics

Also available in High Temperature (HT)

HT Ceramic heaters are coiled with Cr20Ni80 wire

Operating temperature for  HT is 1200°F up to a maximum of 1400°F.

Unaffected by expansion of cylinder being heated

Easy to install – open up and wrap around cylinder



Construction of Plastic Extruder Heater
1- or 2-piece construction

Partial coverage

Exterior cover: 24 gauge 3042b stainless steel

A shroud of 26 gauge 3042b stainless steel is placed on inside for protection

Minimum standard diameter: 2″ (consult factory for smaller diameter)

Minimum standard width: 1″ (consult factory for smaller width)

Thickness: 0.5″

Regular gap: 0.375″



Electrical connections of Plastic Extruder Heater

Post terminal

Fiber glass sleeve

Metal braid (SS)

Armour cable (AC)

Teflon leads

Silicone wire

Ground post

Dual voltage

Low profile cap

3 Phase

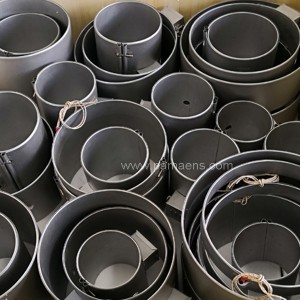

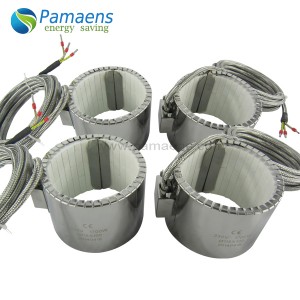

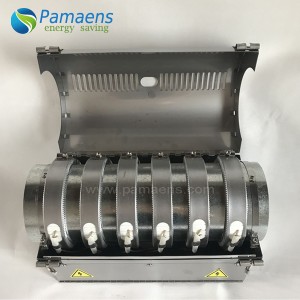

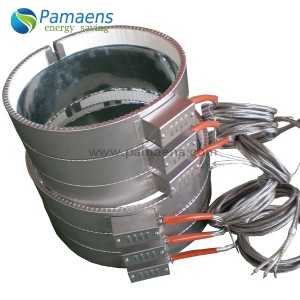

Reference pictures of Plastic Extruder Heater

Fumigation free wooden case or paper box for Plastic Extruder Heater



Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.





Order Guidance of Plastic Extruder Heater

1. Width/diameter and Length
2. Voltage
3. Power
4. Lead wire type and length
5. Quantity

Question and reply you may concern

About us?



We are factory and exporter, own ISO9001 and  Research and development team and QC department.



Do you accept customized?



Yes , we are ready to turn your great design into perfect products, of course, your special design will be completely confidential. At same time, we are good designer ourselves.



How is your shipping?



We could send the goods on your instruction, if you do not want to handle shipping yourself, we could handle shipping for you. Shortest delivery time and lowest freight are our target, so the freight we provided are always the best, because we check many forwarders and get the best freight for you.



Why choose us?



Lowest default rate

One to two year warranty

Best and on time after sale service

You are worried, we would like you to think



How to contact with us?
