Reusable and Removable Thermal Insulation Jackets Customized with Flexible MOQ

Short Description:

Thermal Insulation Jackets have three to eight layers, liner is high silica glass fiber cloth, stainless steel braided cloth, ceramic fiber cloth, glass fiber cloth or high-SI aluminum cloth, and insulating layer is ceramic or glass fiber or aero gel blanket, and the protection layer is silicone coated glass fiber cloth, teflon cloth or stainless steel braided cloth, which is water, oil, acid and alkali proof. The thickness is 5-150 mm, which could be customized, temperature resistance could be as high as 1000 cent degree. Normal lifetime is more than 5 years. And the energy saving rate is 25% to 40%.


  • FOB Price: US $8- 99 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 7-15 days
  • Product Detail

    Product Tags

    Introduction of Thermal Insulation Jackets

    Thermal Insulation Jackets have three to six layers, liner is high silica glass fiber cloth, stainless steel braided cloth, ceramic fiber cloth, glass fiber cloth or high-SI aluminum cloth, and insulating layer is ceramic or glass fiber or aero gel blanket, and the protection layer is silicone coated glass fiber cloth, teflon cloth or stainless steel braided cloth, which is water, oil, acid and alkali proof. The thickness is 5-150 mm, which could be customized, temperature resistance could be as high as 1000 cent degree. Normal lifetime is more than 5 years. And the energy saving rate is 25% to 40%.

    Types of Thermal Insulation Jackets

    A) Cold insulation type

    B) Low temperature insulation type (below 300℃);

    C) Standard type (300—600℃).

    D) High temperature insulation type (above 600 C).



    Features of Thermal Insulation Jackets

    • Thermal conductivity: 0.035 W/M•K- 0.045 W/M•K±0.005 (Normal temperature)
    • Temperature tolerance: high temperature tolerance: 1000-280℃, low temperature tolerance 70℃
    • Inflaming retarding: non flammable (Fireproof A class, GB8624-2006, German standard DIN4102, A1 class)
    • Density: 110-220Kg/m
    • Thickness: 5-150MM
    • Moisture absorption rate:<5%

    Application of Thermal Insulation Jackets

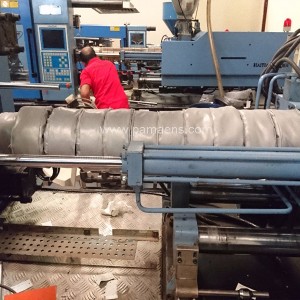

    • Barrel heater on injection molding machine, extruder etc.
    • Molds and dies
    • Flange, Pipe, Valve
    • Exhaust Elbow
    • Heater exchanger
    • Exhaust pipe of engine
    • Any other applications needed to reduce heat loss
    Advantage of Thermal Insulation Jackets
    • Minimize heat loss by 20%-40%
    • The surface temperature can be lowered to 40℃, and thus safe to touch by hands
    • We support customized design to ensure 100% fit your application
    • Easy to install by buckles
    • Water and oil proof, multi-layer protection, anti-corrosion, easy to clean, easy to bend, pollution free and neat out looking.
    • Dimension, cut/hole sizes and positions are required for quotation. Drawings and pictures are preferred.

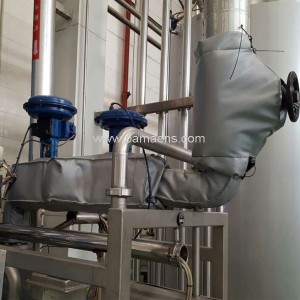

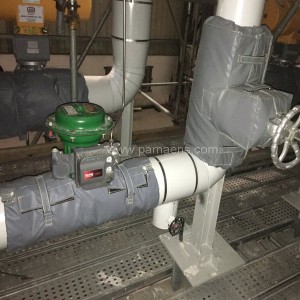

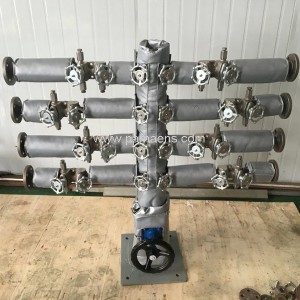

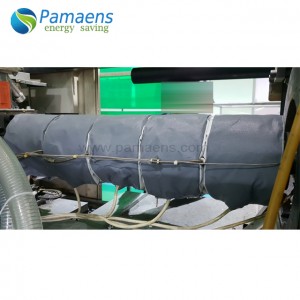

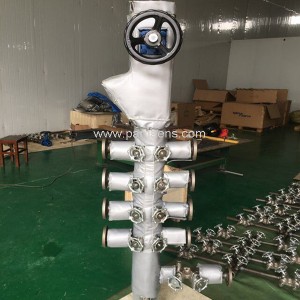

    Projects Show Case
    insulation jacket boiler

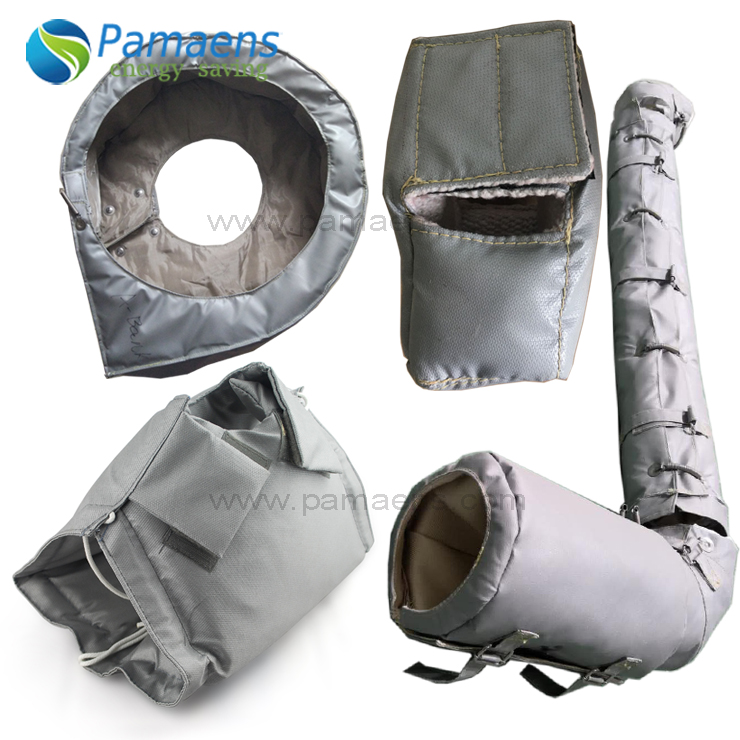

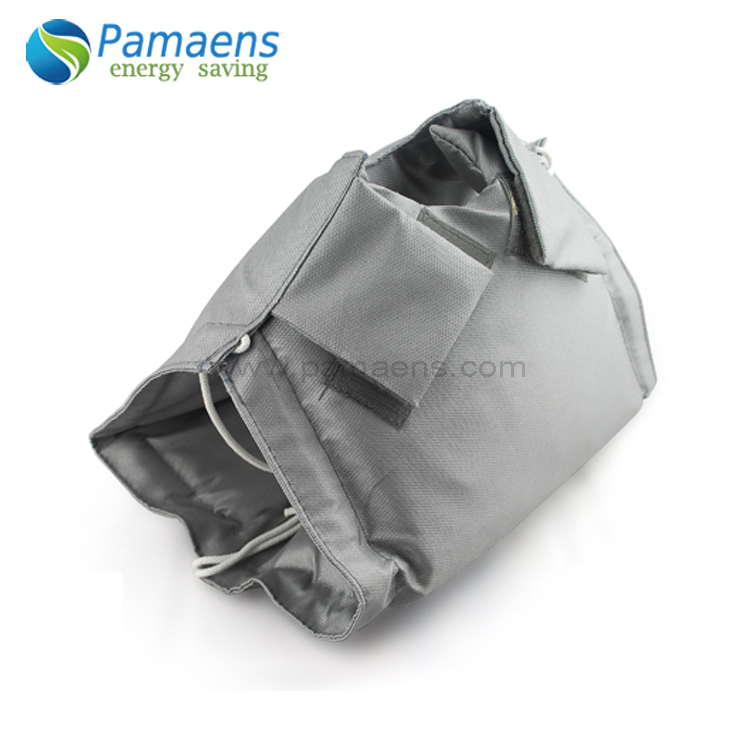

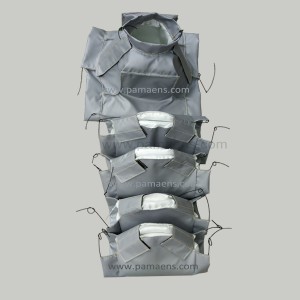

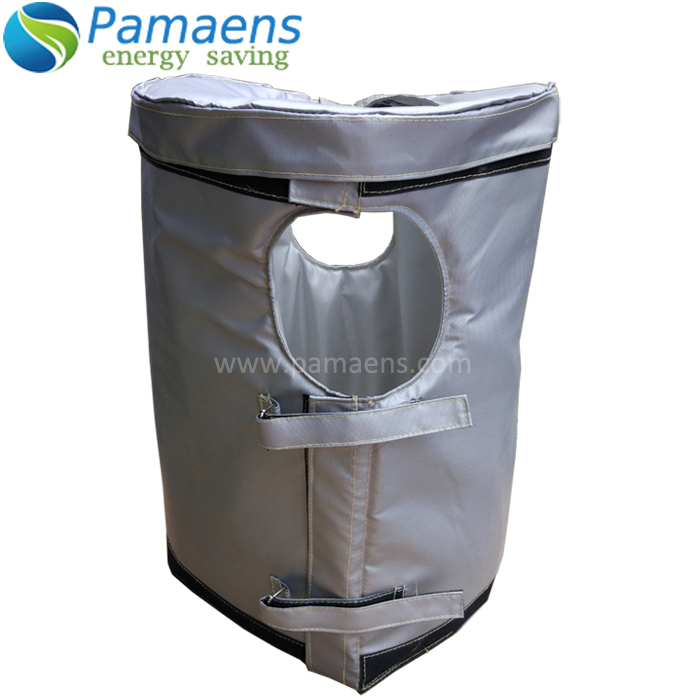

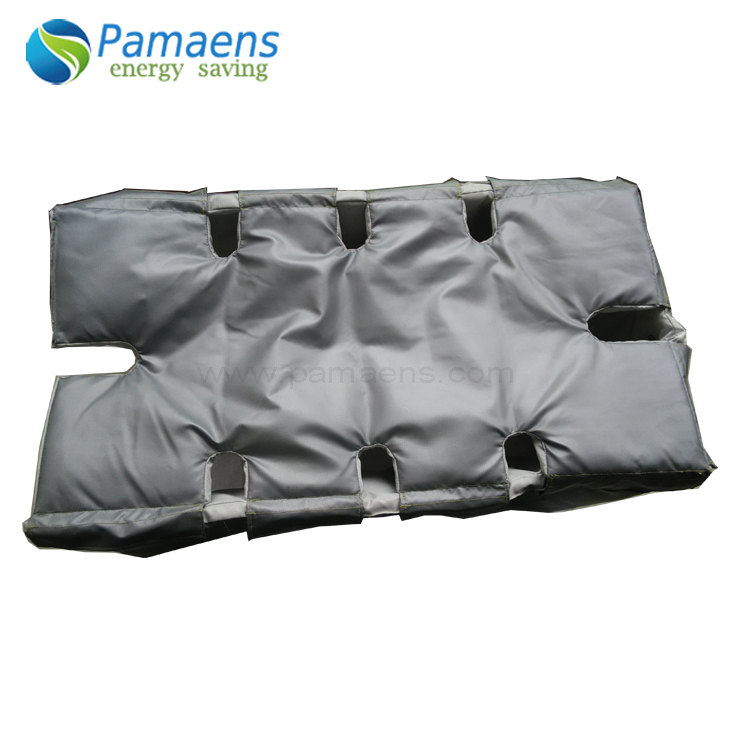

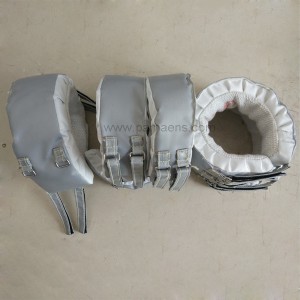

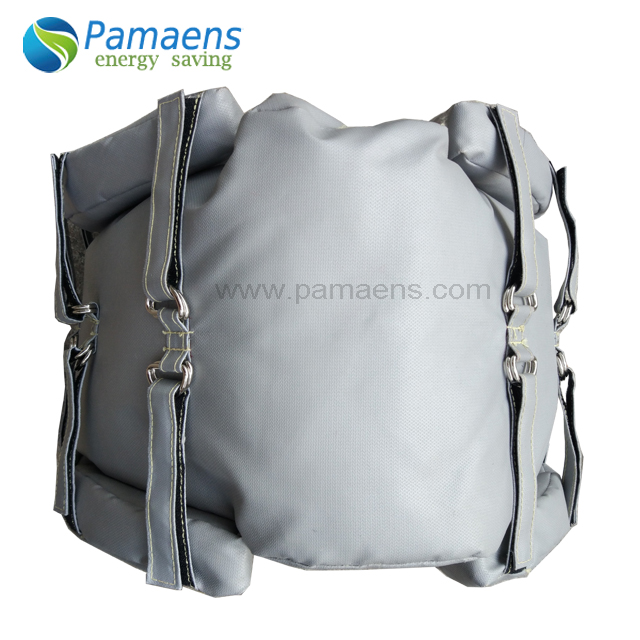

    Products show case
    insulation jacket boiler insulation jacket boiler
    insulation jacket boiler insulation jacket boiler

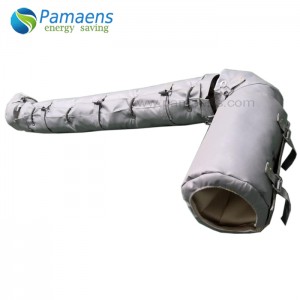

    insulation jacket boiler Insulation jackets-110
    Insulation jackets-155 Insulation jackets-151

    Packaging & Shipping

    insulation jacket boiler

    Our Services

    insulation jacket boiler

    Company Information

    Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.



    insulation jacket boiler

    Factory-1

    Inquiry of Thermal Insulation Jackets
    You provide us the sizes, shape, working temperature of object which Thermal Insulation Jackets will be applied.
    Questions and replies you may concern
    About us?
    We are factory and exporter, own ISO9001 and  Research and development team and QC department.
    Do you accept customized?Yes , we are ready to turn your great design into perfect products, of course, your special design will be completely confidential. At same time, we are good designer ourselves.How is your shipping?We could send the goods on your instruction, if you do not want to handle shipping yourself, we could handle shipping for you. Shortest delivery time and lowest freight are our target, so the freight we provided are always the best, because we check many forwarders and get the best freight for you.

    Why choose us?

    1. Lowest default rate

    2. One to two year warranty

    3. Best and on time after sale service

    4. You are worried, we would like you to think
