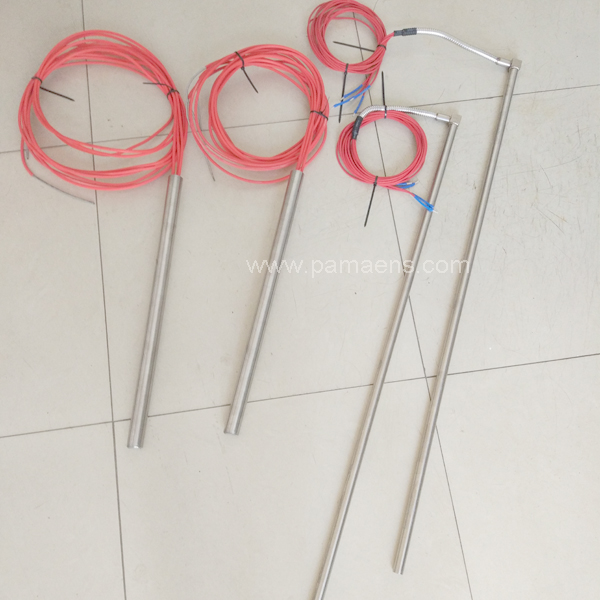

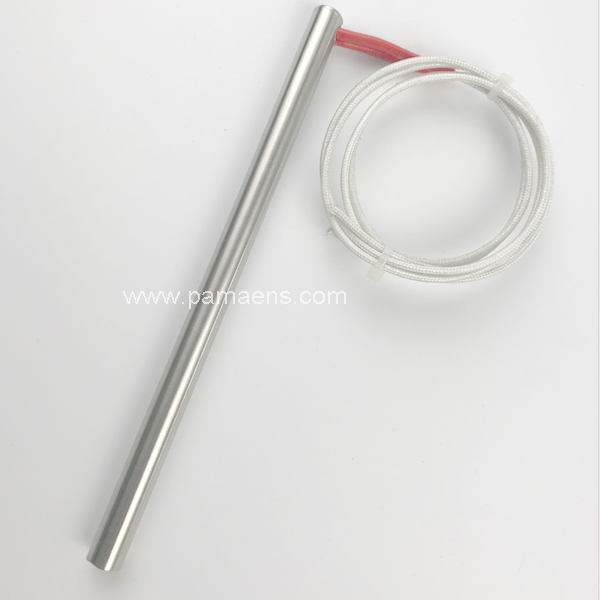

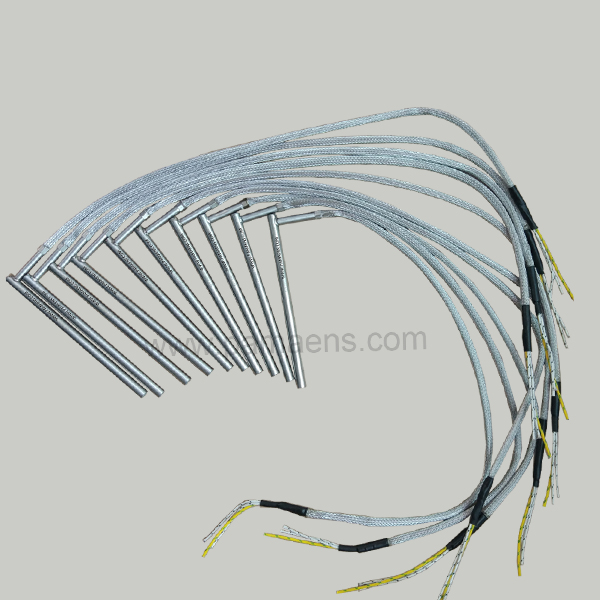

Right Angle Cartridge heater

Short Description:

Right Angle Cartridge heaters are used largely used to heat liquid, solid or gas, the application in plastic industry is very wide, such as hot runner system,small mould heating ,plastic package ,Medical equipment plastic ,plastic injection molding machine nozzle heating, Package and cartridge is also used in the cigarette industry, footwear industry, thermoforming machinery.


  • FOB Price: US $2- 30 / Piece
  • Min.Order Quantity: 5 Piece/Pieces
  • Supply Ability: 100000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Product Detail

    Product Tags

    Specification

    Item Name

    Right Angle Cartridge Heater

    Item No.

    PM-RACH

    Voltage

    6-480 V

    Wattage

    Customized

    Wattage density

    1w-25w per square centimeter

    Dimensions

    Customized

    Max. Operation Temp:

    700 Deg C

    Diameter tolerance

    -0.1mm

    Length tolerance

    +/- 1 mm

    Wattage tolerance

    +/- 5 w

    Cold part length

    5-10 mm (could be customized)

    Certificates

    CE, RoHs

    Packaging

    B lister packing with carton box / fumigation free wooden cas

    Material

    Resistance Wire

    Cr20Ni80, high quality Swedish resistance wire is avalible

    Insulation

    Compacted magnesium Oxide, high purity

    Sheath material

    SUS304/SUS316L/Incoloy 800/Titanium etc

    Lead wire

    Pure nickle glass fiber wire, silicone wire, stainless steel braided wire ect

    Accessories Information

    Built in thermo couple

    K type or J type

    Thread/flange

    Thread or flange is available

    Introductions of Right Angle Cartridge heater

    Right Angle Cartridge heaters are used largely used to heat liquid, solid or gas, the application in plastic industry is very wide, such as hot runner system,small mold heating ,plastic package ,Medical equipment plastic ,plastic injection molding machine nozzle heating, Package and cartridge is also used in the cigarette industry, footwear industry, thermo forming machinery.
    High-wattage cartridge heaters belong to a new generation of electric heating elements; they make it possible to use high watt loads in small spaces, thus ensuring excellent reliability in heavy-duty work conditions. Their special construction technology makes them the most advanced type of heating elements. The entire length of the wire wound around a magnesium oxide core is in a faraway position from the axis of the cartridge, very close to the metal sheath, with a very thin and compressed insulating wall in between; this allows excellent heat exchange that allows a much lower temperature of the resistance wire than in other heaters in which the wire is in a deeper position. Besides the use of advanced technology and precise inspection techniques in their manufacturing, Ultramar cartridge heater owe their total reliability to the use of first-class material from the best sources in the market.

    The feature of Right Angle Cartridge heater

    Tube diameter: Φ3mm-Φ30mm

    Tube Material: SS304, SS316, SS321 and NICOLOY800 etc

    Insulation Material: High-purity MgO

    Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire

    Wattage density: high/middle/low (5-25w/cm2)

    Lead Connection Option: Crimped or Swaged leads

    Lead wire type: 10″ Standard (Teflon/silicone high temperature fiberglass)

    The applications of Right Angle Cartridge heater

    Injection moulding – Internal heating of nozzles

    Hot runner systems – Heating of manifolds

    Packaging industry – Heating of cutting bars

    Packaging industry – Heating of hot stamps

    Laboratories – Heating of analytical equipment

    Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

    Telecommunications: Deicing, Enclosure Heater

    Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters

    Food Service: Steamers, Dish Washers,

    Industrial: Packaging Equipment, Hole Punches, Hot Stamp.

    RFQ

    1. Diameter

    2. Length

    3. Internal connection or external connection

    4. Voltage & wattage

    5. What type of lead wire and it’s length

    6. Quantity
