High quality silicone heating belt with one year warranty

Short Description:

Silicone heating belt is extremely thin,light and flexible. And the heater with the silicone rubber electric heating plate can transfer heat to any required place . In processing it can improve heat transfer ,accelerate temperature rising and reduce power need. Glass fiber-reinforced silicone rubber can ensure the heater to be stable in dimension ,without losing flexibility.


  • FOB Price: US $5- 90 / Piece
  • Min.Order Quantity: 10 Piece/Pieces
  • Supply Ability: 10000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 7-15 days
  • Product Detail

    Product Tags

    Introduction of silicone heating belt

    Silicone heating belt is extremely thin,light and flexible. And the heater with the silicone rubber electric heating plate can transfer heat to any required place . In processing it can improve heat transfer ,accelerate temperature rising and reduce power need. Glass fiber-reinforced silicone rubber can ensure the heater to be stable in dimension ,without losing flexibility .
    (1)Design according to actual shape and dimension, and adopt three-dimensional geometry to satisfy the requirements of your equipment .
    (2)Moisture-proof chemical defense silicone rubber material makes the service life of heater much longer .
    (3)It can be simply pasted or attached to our component by vulcanizing, adhesive or fastener ,etc .



    Technical data of silicone heating belt



    Supply Voltage: 0~400 V, 1 or 3 phase

    Insulation Material: Fiberglass reinforced Silicone Rubber

    Max. Operating Temp.: 260 Deg C or 500 Deg F

    Min. Element Temp.: -50 Deg C or -58 Deg F

    Max.Power Density: 5 w/sq.cm depending on application

    Resistance Tolerance: about +/- 5%

    Standard Thickness: 1.5 mm

    Flammability: Flame Retardant

    Moisture Absorption: Moisture proof

    Thermal Protection & Control: On board thermal fuse, thermostat, thermistor and PT100 are available as part of your thermal management solution.

    Power Leads: 1 meter by default,other length available upon request

    Mechanical pressure: 100.00kg/cm²

    Minimum bending radius: 3.20mm



    Benefits of silicone heating belt

    1. Fast heating with a coefficient of heat conductivity of only 1W/m.k. Due to its small thermal capacity, prompt turn on/off can be achieved.

    2. High thermal efficiency: The temperature of electric heating film itself is only tens of centidegrees higher than that of the liquid when heating, which is 2-3 times energy saving than ordinary electric stoves.

    3. Water, acid and alkali resistance, high-strength of electric insulation.

    4. High mechanical strength with 100kg/cm² mechanical pressure.

    5. Small size: Small space occupied when applying this heating product.

    6. Easy application: Its self-insulation and free-of-open-fire property greatly help simplify the techniques of heat preservation and thermal insulation.

    7. Its wide range of temperature,-60°C~250°C, can not be simply achieved by other electrical appliances.

    8. Long service time: Under normal use, the product almost can be permanently and continuously used because nickel and chrome materials are durable to any corrosion, and the silastic has a high surface resistance up to 100kg/cm², which is uncomparable for any other electric heaters.

    9. Made in any size, the temperature of the product can be precisely adjusted by temperature controller.



    Reference Temp and Dimensions of silicone heating belt



    Drum Volume Heater size Voltage (v) Wattage (w) Temp. Control range Weight
    200L 250*1740MM 220V 2000W 30-150℃ Mechanical adjustable 1.6Kg
    200L 125*1740MM 220V  1000W 30-150℃ Mechanical adjustable 1.1Kg
    20L 200*860MM  220V  800W 30-150℃ Mechanical adjutable 0.9Kg
    20L 120*860MM  220V  500W 30-150℃ Mechanical adjutable 0.7Kg


    Applications of silicone heating belt



    1. Industrial equipment, pipelines, barrels, tanks, etc.

    2. Outdoors telecommunication equipment

    3. Medical equipment and devices

    4. Outdoors

    electronic devices

    5.Thermal imaging of imaging equipment

    6. Case protection under cold and moist environment

    7. Industrial ovens and thermal processing equipment

    8. Ventilator supports

    9. Laminating equipment

    10. Vessels

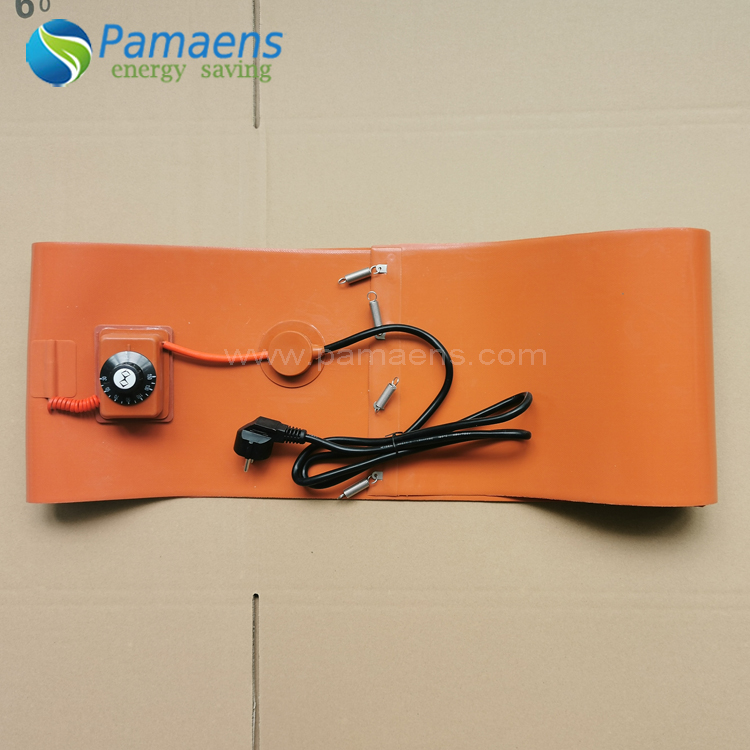

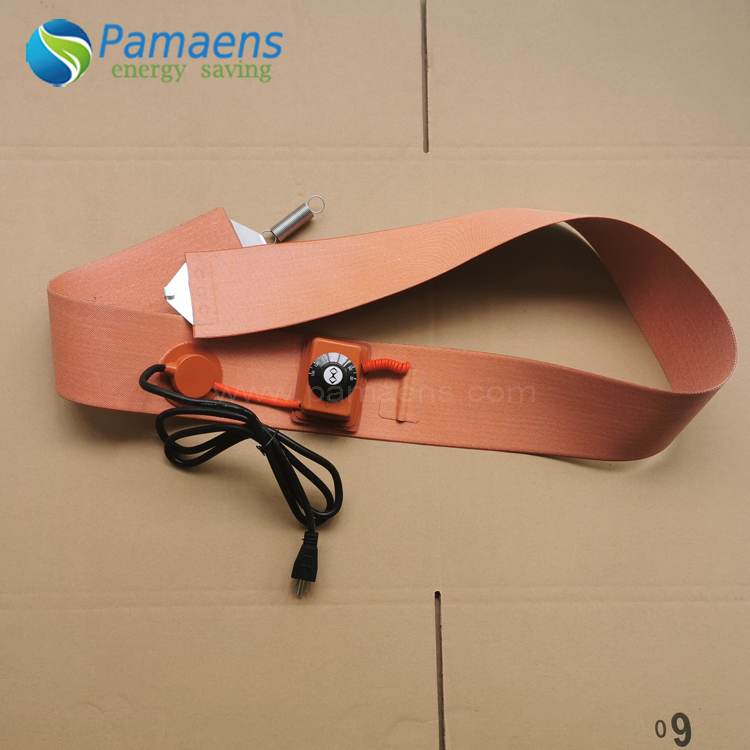

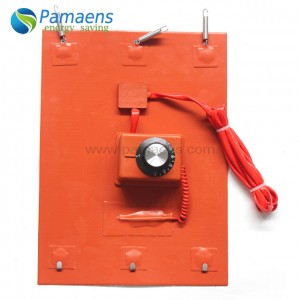

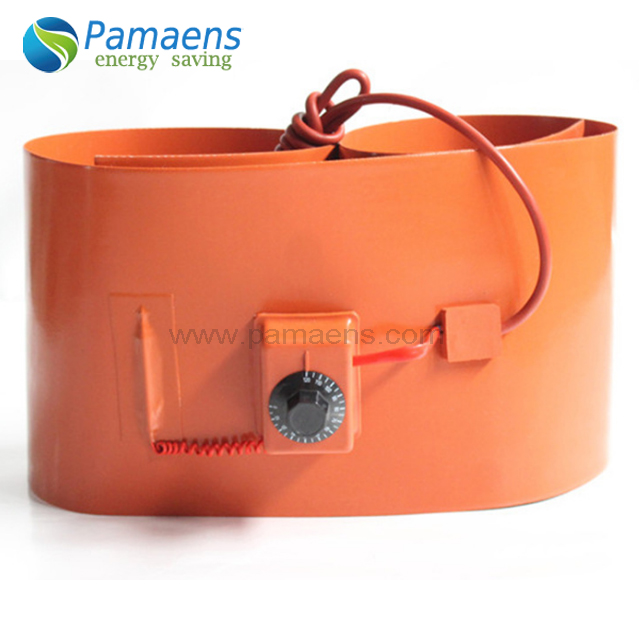

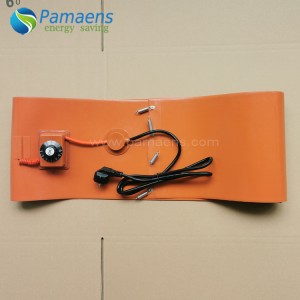

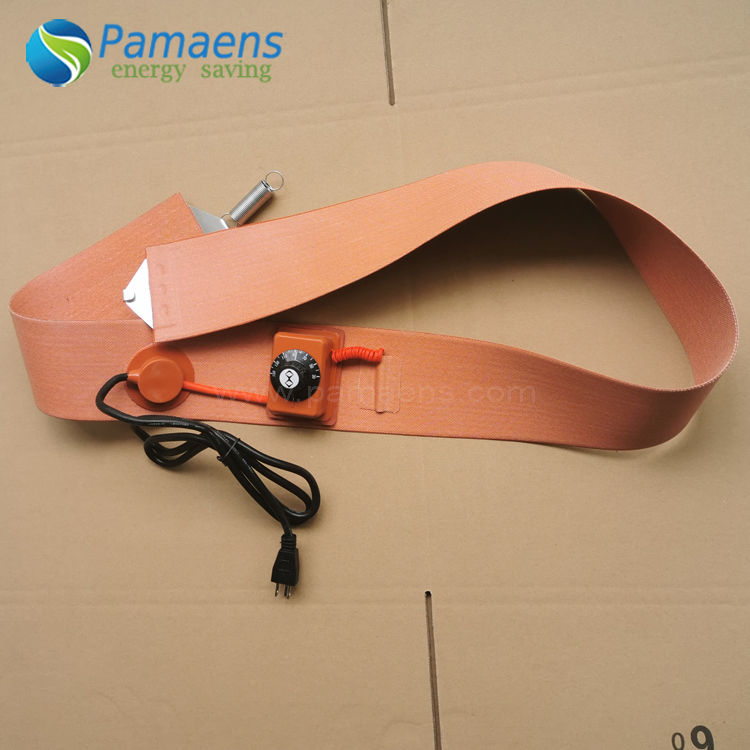

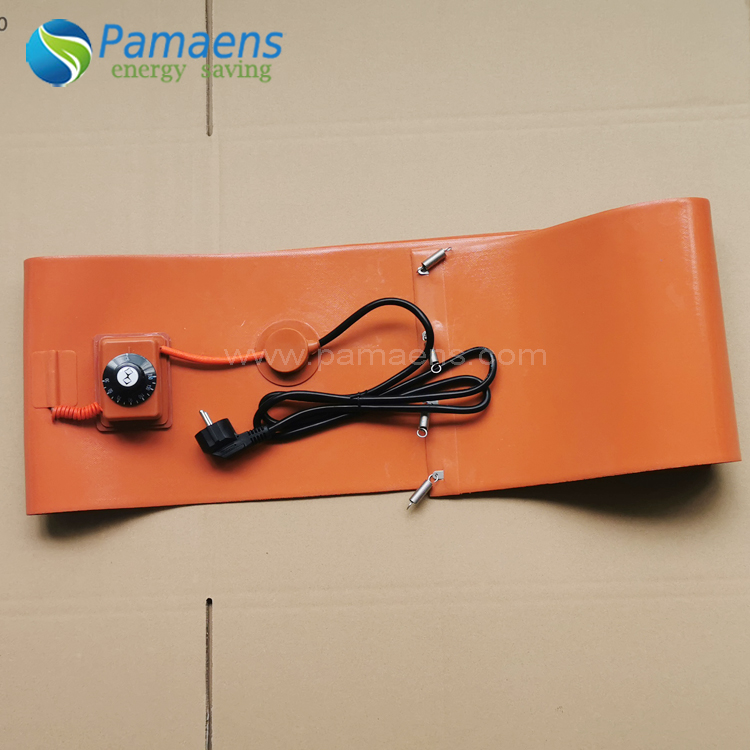

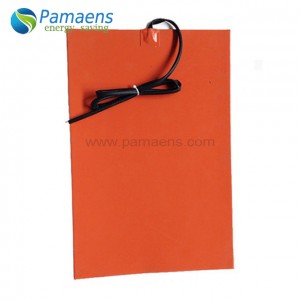

    Reference pictures of silicone heating belt
    Silicone heater-11.jpg Silicone heater-18.jpg
    Silicone heater-21.jpg Silicone heater-28.jpg
    Silicone heater-19.jpg Silicone heater-59.jpg
    Silicone heater-50.jpg Silicone heater-33.jpg



    Packaging & Shipping


    4



    Company Information

    Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.


    Factory-1

    Order Guidance of silicone heating belt

    1. Width/diameter and Length
    2. Voltage
    3. Power
    4. Lead wire type and length
    5. Plug type (optional)
    6. Quantity
