Heating Jacket for 200 Liter Drum

Short Description:

Heating Jackets for 200 Liter Drums are designed to provide practical and efficient means of freeze protection, viscosity control, and ease of maintenance in elevated temperatures, which come with adjustable velcro straps or straps with clips to ensure proper fit of larger and smaller 55 gallon drums/barrels.


  • FOB Price: US $150-300 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 7-15 days
  • Product Detail

    Product Tags

    Specification

    Item Name Heating Jacket for 200 Liter Drum
    Item No. PM-HJD
    Voltage 90-250v / One phase, 380v / three phases
    Wattage Customized
    Wattage density 100w-3000w per square meter
    Dimensions Customized
    Max. Operation Temp: 260 Deg C or 500 Deg F
    Min. Operation Temp: -50 Deg C or -58 Deg F
    Standard Thickness 5-30mm
    Certificates CE
    Packaging Carton box / Fumigation free wooden cas
    Color Grey / Black / Blue
    Material
    Internal layer Silicone coated glass fiber cloth / Oxford cloth
    Middle layer High quality heating wire and aramid fiber (AFRP) insulation
    External layer Silicone coated glass fiber cloth / glass fiber reinforced aluminum cloth
    Accessories Information
    Temperature control Digital /  0-190 deg C, Mechnical 0-150 deg C
    Power cord one to three meters with customized plug

    Introductions of Heating Jacket for 200 Liter Drum

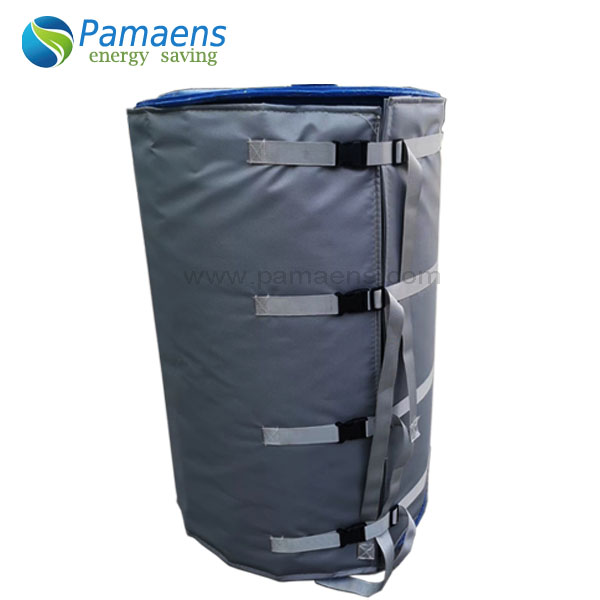

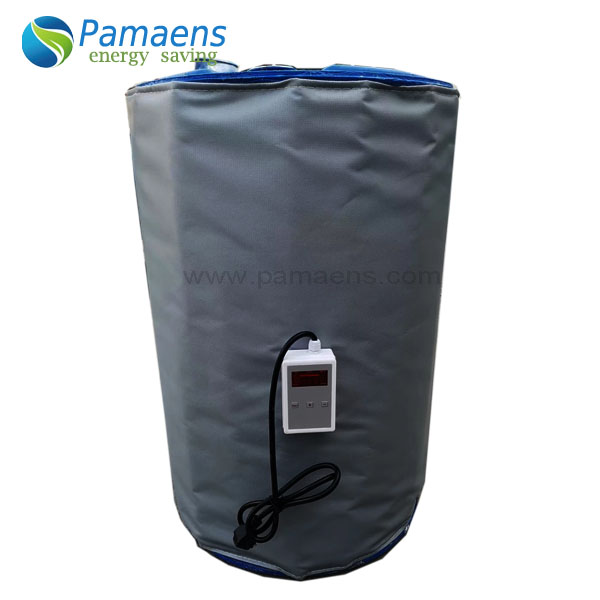

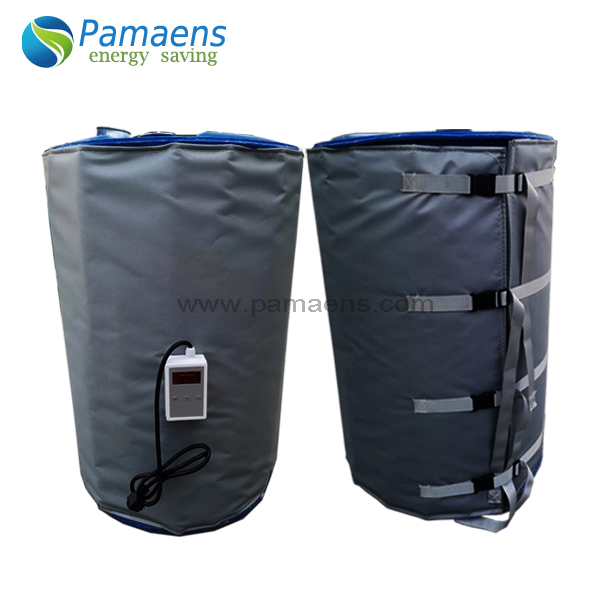

    Our drum heaters are designed to provide practical and efficient means of freeze protection, viscosity control, and ease of maintenance in elevated temperatures, which come with adjustable velcro straps or straps with clips to ensure proper fit of larger and smaller 55 gallon drums/barrels. Wrapping the blanket around the entire drum ensures rapid and even heating. The digital thermostat with timer ensures consistent heating which will prevent under and overheating your material.The blanket heater is high in energy savings when compared to a traditional silicon band heater since it insulates the entire drum and ensures minimal heat loss.

    The feature of Heating Jacket for 200 Liter Drum

    A.Thickened the thermal insulation layer make the heating blanket has better thermal insulation, and faster heating up.
    B. Smoothly lied resistant wire makes the heating blanket heating Uniform.
    C. High temperature resistance flame retardant fabrics are used.
    D. The heating blanket is designed with connection and fixation device, by which the heating area could extend easily.
    E. Different with insulation surface, the temperature tolerance of heating surface is more than 260℃.
    F. The heating blanket is built in temperature control in case of burning of the heating blanket by abnormal use.
    G. Several temperature probes are layout uniformly, making sure the uniform heating.

    Advantages of Heating Jacket for 200 Liter Drum

    1. Integrated type
    2. Custom size and shape
    3. Full coverage heating and insulation, high thermal and heating efficiency
    4. Good flexibility
    5. Uniform heating
    6. Built-in overheat switch to prevent accidental burning of heated body
    7. Large range, high power, fast heating.
    8. High insulation performance of all material
    9. Easy to install and remove, safer and adjustable

    RFQ

    1. Dimension of the drum
    2. Voltage & Wattage
    3. What kind of material inside the tank
    4. What’s the initial temperature of the material
    5. What’s the target temperature of the material
    6. Plug type (optional)
    7. Quantity
