Factory Hot Sales Cast-in Aluminum Band Heater with Long Lifetime
Introduction of Cast-in Aluminum Band Heater
Cast-in Aluminum Band Heaters combine top quality tubular heaters and high thermal conductivity non-ferrous alloys. The heating elements are tested 100% before and after casting. Modern foundry techniques ensure a dense, porosity free casting. After casting the heaters are machined to ensure a close contact on the working surface. Cast In heaters can be supplied with clamping straps or with built in clamping means.
PAMAENS could supply ordinary cast in heater, cast in water cooling heater and cast in air cooling heaters with air blowers in shape of band or flat. Heaters with leads in armor, post terminals, terminal housing and a variety of electrical terminations are available. Standard cooling tube terminations are also available. Casting quality is maintained by periodic radiographic testing. Diagnostic radiography services are available if required.
Classification of Cast-in Aluminum Band Heater
Insulation types: Aluminum, brass and iron
Shapes: Band type and flat type
Heating and cooling: Air cooling cast in aluminum/brass heater, cast in water cooling aluminum/brass heater, ordinary cast in aluminum/brass/iron heater
Heating type: Inner heating and outer heating
Features of Cast-in Aluminum Band Heater
- Temperature: Aluminum alloy up to 400℃, brass alloy up to 650℃,
- Watt Density: Aluminum alloy – 35 w/sq in on heater elements, Brass alloy – 45 w/sq in on heater elements
- Voltage: Up to 480 volts – Single and three phase
- Roller Size: 2″ diameter and up. 1-1/2 width and up (in 1/2″ increments)
- Terminal: 1/4 to 20 Post terminals standard
- Shealth: Stainless Steel
- Mounting Collars:1/4, 3/8, 1/2, 5/8, 3/4Designed Specially for Hot Stamping Efficient
- Efficient Heat Transfer
- Cast-in heaters can be supplied with cooling tubes & end fitting
- Various Heater terminations
- Uniform surface temperatures
Applications of Cast-in Aluminum Band Heater
- Injection and Blow Mould
- Moulds & Dies
- Packaging machinery
- Lab equipments

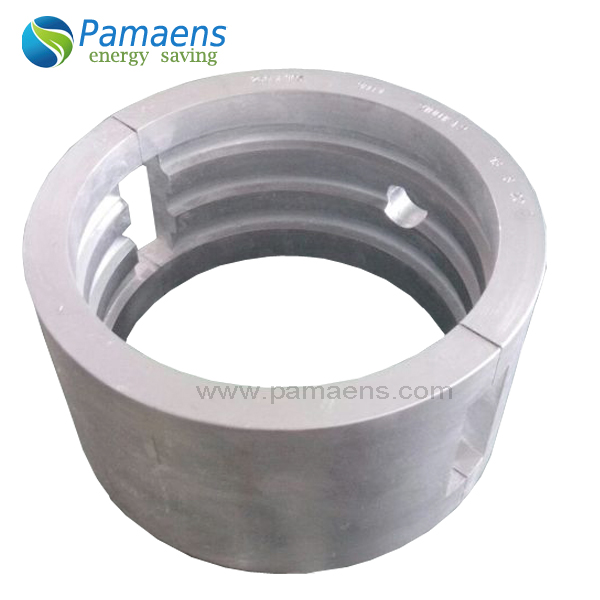

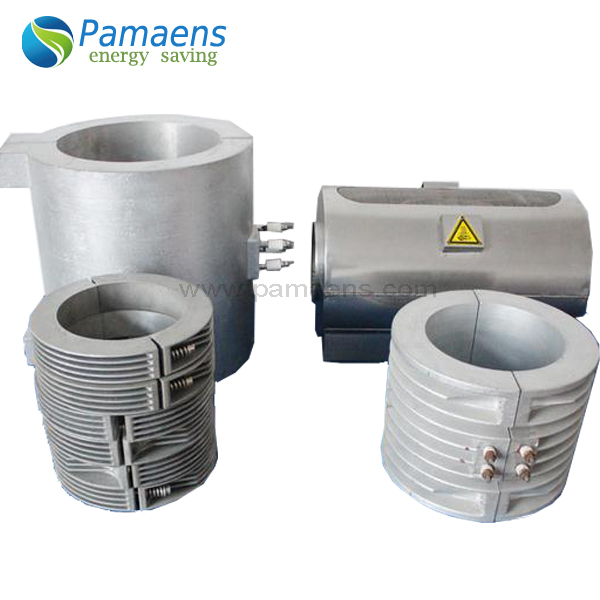

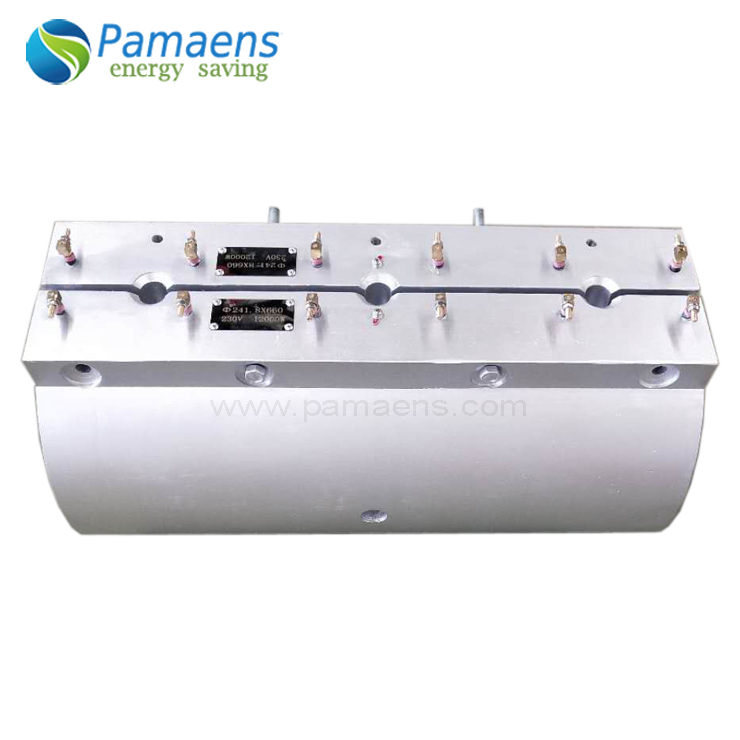

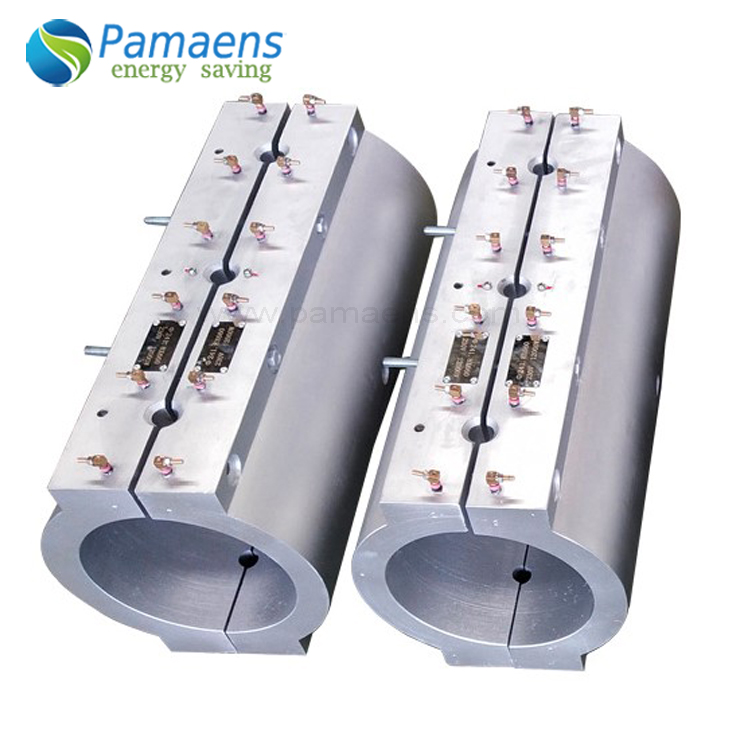

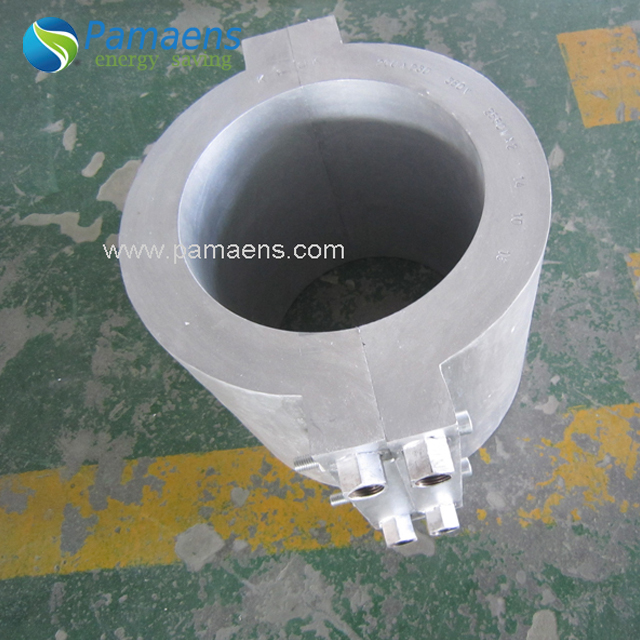

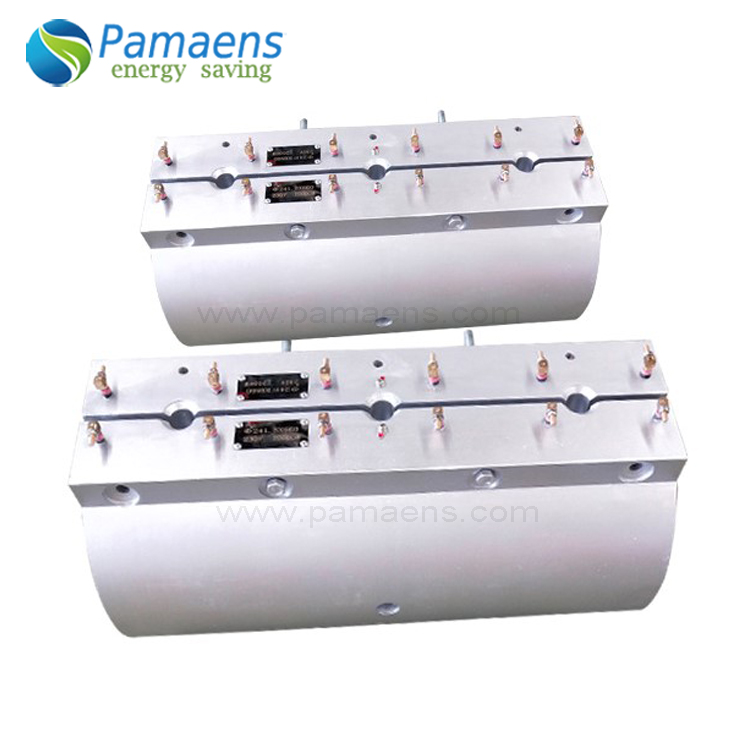

Reference pictures of Cast-in Aluminum Band Heater
Fumigation free wooden case or paper box for Cast-in Aluminum Band Heater
Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.
Order Guidance of Cast-in Aluminum Band Heater
- Diameter and Length
- Lead type and length(connection and fitting type, leads length)
Question and reply you may concern
We are factory and exporter, own ISO9001 and Research and development team and QC department.
Do you accept customized?
Yes , we are ready to turn your great design into perfect products, of course, your special design will be completely confidential. At same time, we are good designer ourselves.
How is your shipping?
We could send the goods on your instruction, if you do not want to handle shipping yourself, we could handle shipping for you. Shortest delivery time and lowest freight are our target, so the freight we provided are always the best, because we check many forwarders and get the best freight for you.
Lowest default rate
One to two year warranty
Best and on time after sale service
You are worried, we would like you to think
How to contact with us?
