Cartridge Heaters 8mm XL150mm for Industrial with Two Year Warranty

Short Description:

Cartridge Heaters 8mm XL150mm are used largely used in plastic industry, such as hot runner system, small mold heating ,plastic package ,Medical equipment plastic ,plastic injection molding machine nozzle heating, Package and cartridge is also used in the cigarette industry, footwear industry, thermoforming machinery.


  • FOB Price: US $2- 30 / Piece
  • Min.Order Quantity: 5 Piece/Pieces
  • Supply Ability: 100000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production Time: 10-15 days
  • Product Detail

    Product Tags

    Description of Cartridge Heaters 8mm XL150mm

    Cartridge Heaters are used largely used to heat liquid, solid or gas, the application in plastic industry is very wide, such as hot runner system,small mould heating ,plastic package ,Medical equipment plastic ,plastic injection molding machine nozzle heating, Package and cartridge is also used in the cigarette industry, footwear industry, thermoforming machinery. Small cartridge heaters are largely used for heating 3D printers, which has high wattage density, and could heating up fast and efficiently. We could make the cartridge heater as small as 1mm in diameter, 15mm in length, voltage from 6v to 480v. Wattage density could be as high as 20w/square cm.

    Cartridge Heaters belong to a new generation of electric heating elements; they make it possible to use high watt loads in small spaces, thus ensuring excellent reliability in heavy-duty work conditions. Their special construction technology makes them the most advanced type of heating elements. The entire length of the wire wound around a magnesium oxide core is in a faraway position from the axis of the cartridge, very close to the metal sheath, with a very thin and compressed insulating wall in between; this allows excellent heat exchange that allows a much lower temperature of the resistance wire than in other heaters in which the wire is in a deeper position. Besides the use of advanced technology and precise inspection techniques in their manufacturing, cartridge heater owe their total reliability to the use of first-class material from the best sources in the market.

    Datasheet of Cartridge Heaters 8mm XL150mm

    Sheath material SUS304,321,316,Incoloy800,840
    Wattage Tolerance +5%, -10%
    Resistance tolerance +10%, -5%
    Voltages available 6v – 650v
    Max operating temp 800ºC
    Length tolerance ±1 mm
    Diameter tolerance -0.02mm
    Standard Cold Zone 5-10mm
    Thermocouple Location type J or K are available
    Insulation resistance (cold) ≥ 500 MΩ
    Maximum leakage current (cold) ≤ 0.5 mA



    Feature of Cartridge Heaters 8mm XL150mm

    • Tube diameter: Φ1mm-Φ32mm
    • Tube Material: SS304, SS316, SS321 and NICOLOY800 etc
    • Insulation Material: High-purity MgO
    • Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire
    • Wattage density: high/middle/low (5-25w/cm2)
    • Lead Connection Option: Crimped or Swaged leads
    • Lead wire type: 10″ Standard (Teflon/silicone high temperature fiberglass)

    Application of Cartridge Heaters 8mm XL150mm

    •  Injection moulding – Internal heating of nozzles
    •  Hot runner systems – Heating of manifolds
    •  Packaging industry – Heating of cutting bars
    •  Packaging industry – Heating of hot stamps
    •  Laboratories – Heating of analytical equipment
    •  Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
    •  Telecommunications: Deicing, Enclosure Heater
    •  Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
    •   Food Service: Steamers, Dish Washers,
    •   Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
    Products Showcase of Cartridge Heaters 8mm XL150mm

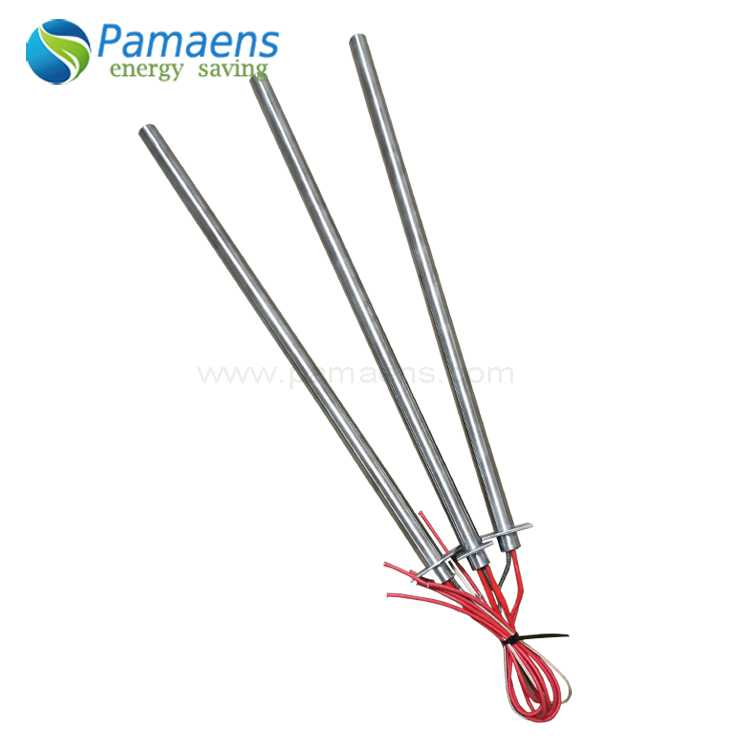

    Cartridge heater-9.jpg Cartridge heater-137.jpg
    Cartridge heater-78.jpg Cartridge heater-16.jpg
    Cartridge heater-86.jpg Cartridge heater-52.jpg
    Cartridge heater-53.jpg Cartridge heater-22.jpg


    Packaging & Shipping

    cartridge-material -12.jpg

    Our Services

    paste-pic-dp_uuid_geg2x



    Company Information

    Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.


    Factory-1

    FAQ of Cartridge Heaters 8mm XL150mm
    1. Diameter
    2. Length
    3. Voltage
    4. Power
    5. Lead & Fitting (connection and fitting type, leads length)
    6. Quantity

    Question and reply you may concern
    About us?
    We are factory and exporter, own ISO9001 and  Research and development team and QC department.
    Do you accept customized?
    Yes , we are ready to turn your great design into perfect products, of course, your special design will be completely confidential. At same time, we are good designer ourselves.
    How is your shipping?
    We could send the goods on your instruction, if you do not want to handle shipping yourself, we could handle shipping for you. Shortest delivery time and lowest freight are our target, so the freight we provided are always the best, because we check many forwarders and get the best freight for you.
    Why choose us?
    Lowest default rateOne to two year warrantyBest and on time after sale serviceYou are worried, we would like you to thinkHow to contact with us?名片
