Hot Runner Coil Heater

Short Description:

Hot Runner Coil Heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.


  • FOB Price: US $15- 45 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 5-15 days
  • Product Detail

    Product Tags

    Introduction of Hot Runner Coil Heater
    Hot Runner Coil Heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.
    Sheath of coil heater: SUS304Insulation of coil heater: Compacted magnesium OxideHeating conductor: NiCr8020

    Thermocouple: K type, J type (optional)

    Leads: Stainless steel braided wire, PTFE wire, glass fiber wire ( On demand)

    Voltage: 24V to 415V

    Temperature resistance: Maxi 800 cent degree



    Outlet types of Hot Runner Coil Heater



    1. Radial type

    2. Tangential type

    3. Azial type



    Standard section Size of Hot Runner Coil Heater

    Ø 1.8mm, Ø 3.0mm
    Ø 3.3mm,  Ø 4,0 mm
    2.2 x 4.0 mm, 2.0 x 4.2 mm
    2.2 x 4.2 mm,  2.5 x 4.0 mm
    2.5 x 4.2 mm,  2.7 x 4.5 mm
    2.7 x 4.2 mm,  3.0 x 3.0 mm
    3.0 x 4.5 mm,  3.3 x 3.3 mm
    Other size could be customized.



    Standard sizes of Hot Runner Coil Heater



    230V Total length straight (incl. cold length)
    2,2 x 4,2 mm
    Ø3,3/3,0×3,0mm
    cold: 65 mm
    Ø 3,0mm
    cold: 65mm
    3,2×3,2mm
    Ø 4,0 mm
    cold:40mm
    2,5×4,0mm
    cold:40mm
    Other types on request
    150 W 265 mm - - -
    175 W - 365 mm 250 mm -
    200 W 315 mm - 300 mm 250 mm
    225 W 345 mm - 350 mm 300 mm
    250 W 400 mm 515 mm 400 mm 350 mm
    290 W 450 mm - 450 mm 400 mm
    330 W - 615 mm 500 mm 450 mm
    350 W 525 mm - - -
    400 W 585 mm 765 mm 600 mm 500 mm
    470 W 665 mm - 700 mm 600 mm
    550 W - - 800 mm 700 mm
    620 W 825 mm - 900 mm 800 mm
    690 W 965 mm - - -
    700 W - - 1000 mm 900 mm
    800 W - - - 1000 mm
    850 W 1165 mm - 1200 mm -
    950 W 1265 mm - 1400 mm 1200 mm
    1000 W - - - -
    1100 W 1465 mm - 1600 mm 1400 mm
    1200 W 1615 mm - 1800 mm 1600 mm
    1400 W 1815 mm - - -
    1600 W 2015 mm - - -
    1800 W - - - -
    2000 W - - - -
    2200 W -

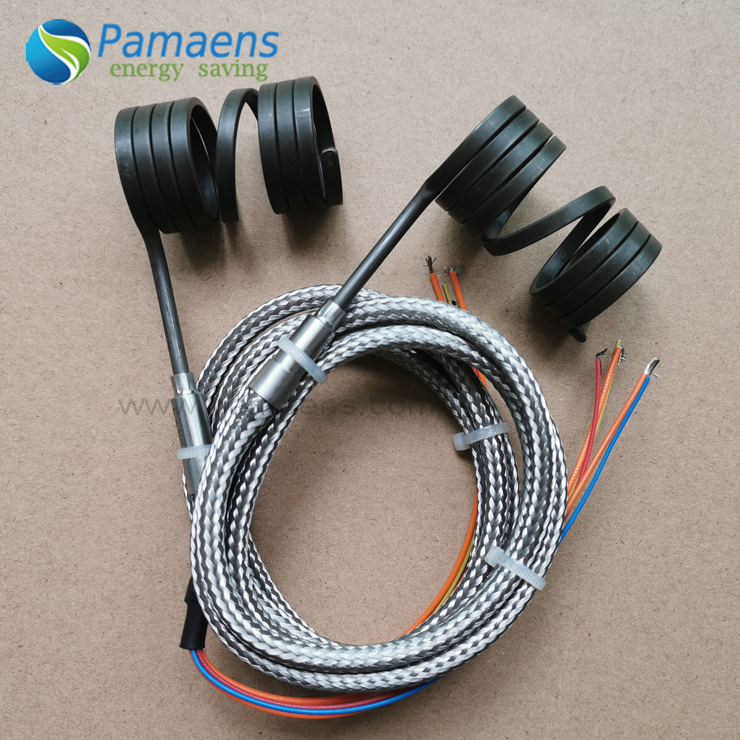

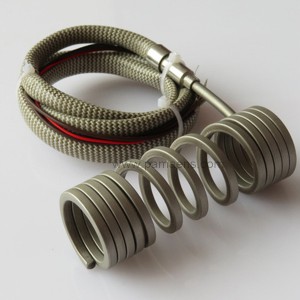

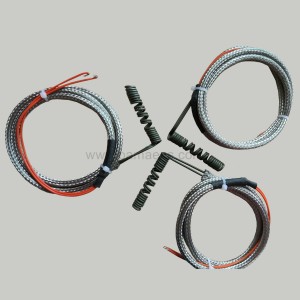

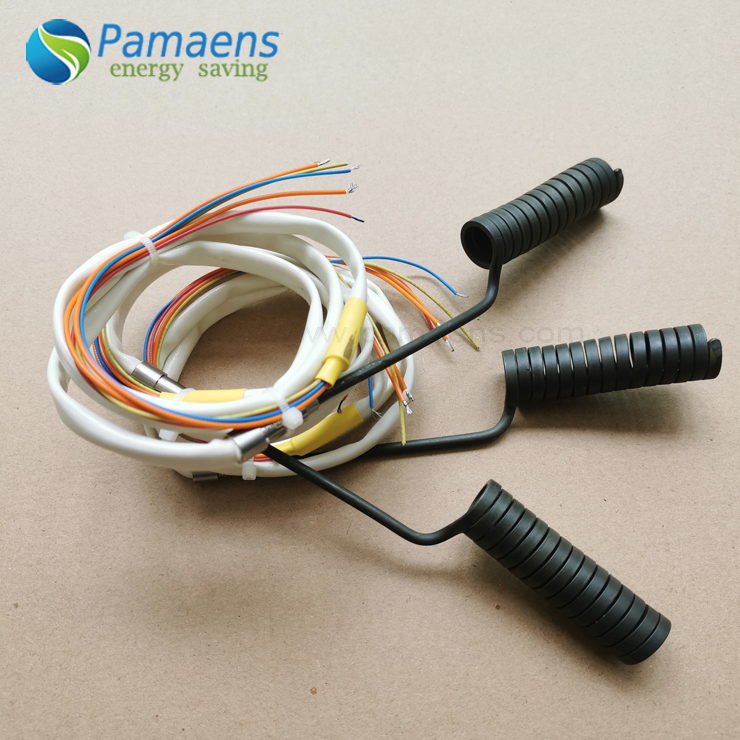

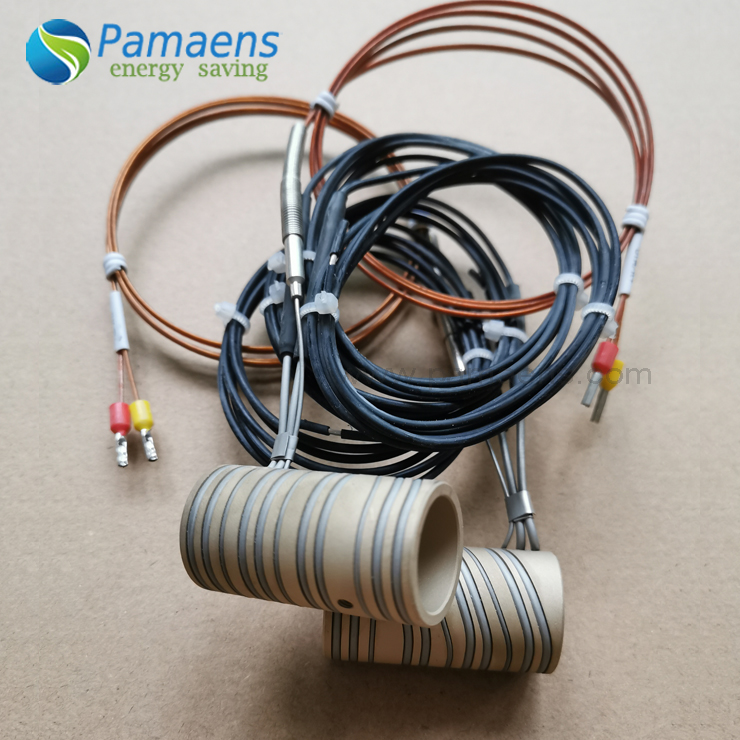

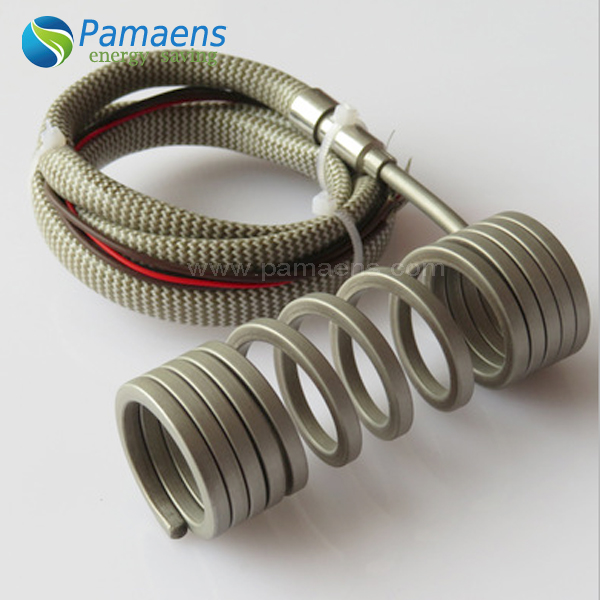

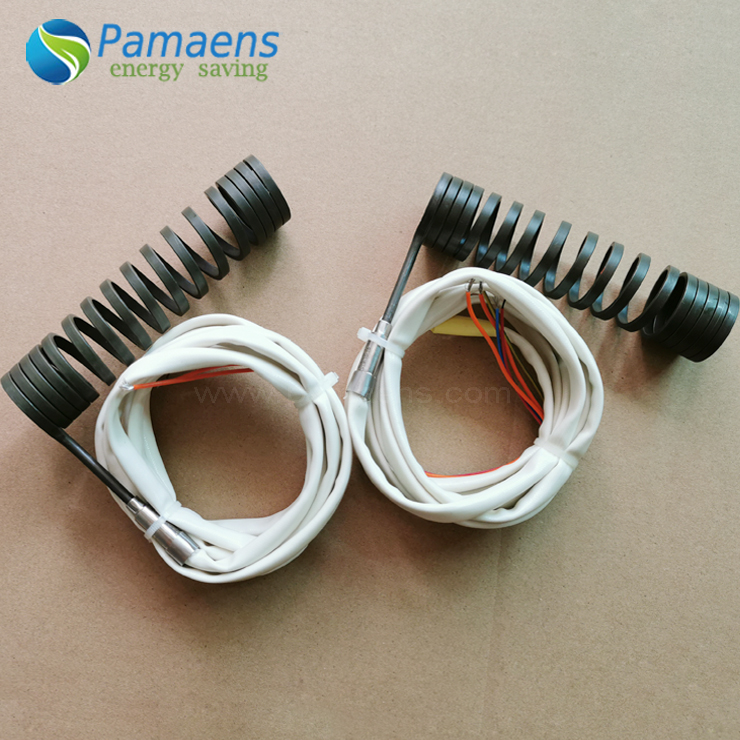

    Products Showcase of Hot Runner Coil Heater



    Coil heater-17.jpgCoil heater-15.jpgCoil heater-12.jpgCoil heater-21

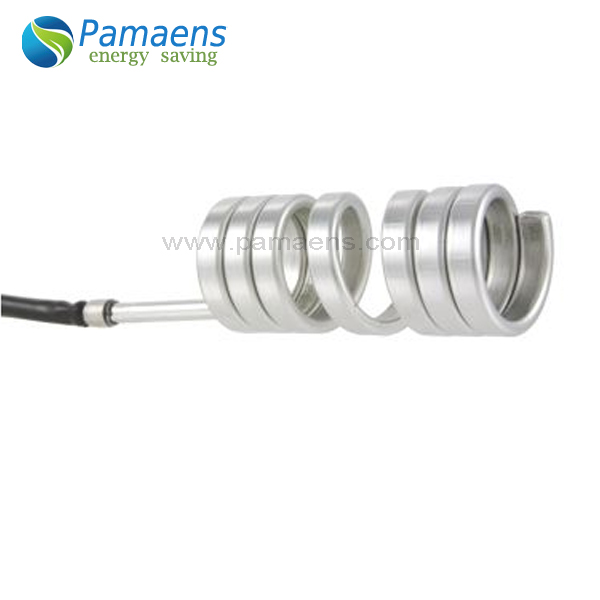

    Coil heater-7.jpg Coil heater-19.jpg
    Coil heater-8.jpg Coil heater-20.jpg
    Coil heater-5.jpg Coil heater-6.jpg



    Packaging & Shipping




    Our Services

    paste-pic-dp_uuid_geg2x





    Company Information

    Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.



    FAQ
    1. Diameter
    2. Width
    3. Voltage
    4. Power
    5. Wire length
    6. Thermocouple type, K type or J type (Optional)
    7. Quantity
    Question and reply you may concern

    Could you introduce your company briefly?

    We are factory and exporter, own ISO9001 and  Research and development team and QC department.

    Do you accept customized?

    Yes , we are ready to turn your great design into perfect products, of course, your special design will be completely confidential. At same time, we are good designer ourselves.

    How is your shipping?

    We could send the goods on your instruction, if you do not want to handle shipping yourself, we could handle shipping for you. Shortest delivery time and lowest freight are our target, so the freight we provided are always the best, because we check many forwarders and get the best freight for you.

    Why choose us?

    Lowest default rate

    One to two year warranty

    Best and on time after sale service
