Customized 2000 watt Drum Heater Heating Blanket with Thermostat and Overheat Protection
Introductions of 2000 watt Drum Heater Heating Blanket
2000 watt Drum Heater Heating Blanket combined by the heating element, base core, fabrics, power cord, junction box, control switch (or thermostat). It could be classified into two types, constant temperature type and adjustable temperature type. The constant temperature type is implanting one or more fixed temperature control element in the electric blanket, when the temperature is lower than the set temperature, the heating blanket automatically starts heating, when the temperature reaches the set temperature; the heating blanket automatically disconnected the power supply, and continues thermal insulation. The whole process is circulated. The temperature adjustable type is built in a temperature probe, which transmit temperature signal to the relay in the temperature control box, and the relay control the connection of the circuit. Temperature could be set up by users according to the using environment and conditions. The ordinary temperature range is -35℃ to 120℃, and for other temperature range, we could customized according to customers’ requirements.
Specifications of 2000 watt Drum Heater Heating Blanket
1 Voltage: 90-250v, 380v, 24v (could be customized)
2 Rated power: 100-1500W/ square meter (according to the user’s different needs can be customized)
3 Rated current: 5A~18A
4 Temperature: Adjustable temperature type≤150℃; Accessories: electronic temperature control box
5 Constant temperature type: 0℃~150℃(5℃/grade)
6 Heating area: Customized, ex.: 1840mm x 880mm.
7 Product size: Customized, ex.:4400mm x 1000mm.
The feature of 2000 watt Drum Heater Heating Blanket
A.Thickened the thermal insulation layer make the heating blanket has better thermal insulation, and faster heating up.
B. Smoothly lied resistant wire makes the heating blanket heating Uniform.
C. High temperature resistance flame retardant fabrics are used.
D. The heating blanket is designed with connection and fixation device, by which the heating area could extend easily.
E. Different with insulation surface, the temperature tolerance of heating surface is more than 260℃.
F. The heating blanket is built in temperature control in case of burning of the heating blanket by abnormal use.
G. Several temperature probes are layout uniformly, making sure the uniform heating.
Advantages of 2000 watt Drum Heater Heating Blanket
1. Integrated type
2. Custom size and shape
3. Full coverage heating and insulation, high thermal and heating efficiency
4. Good flexibility
5. Uniform heating
6. Built-in overheat switch to prevent accidental burning of heated body
7. Large range, high power, fast heating.
8. High insulation performance of all material
9. Easy to install and remove, safer and adjustable

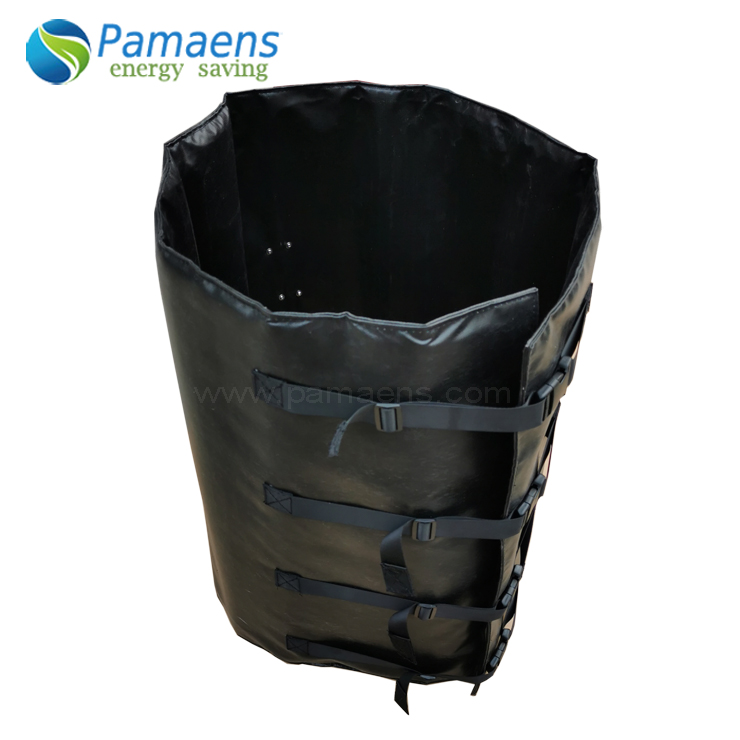

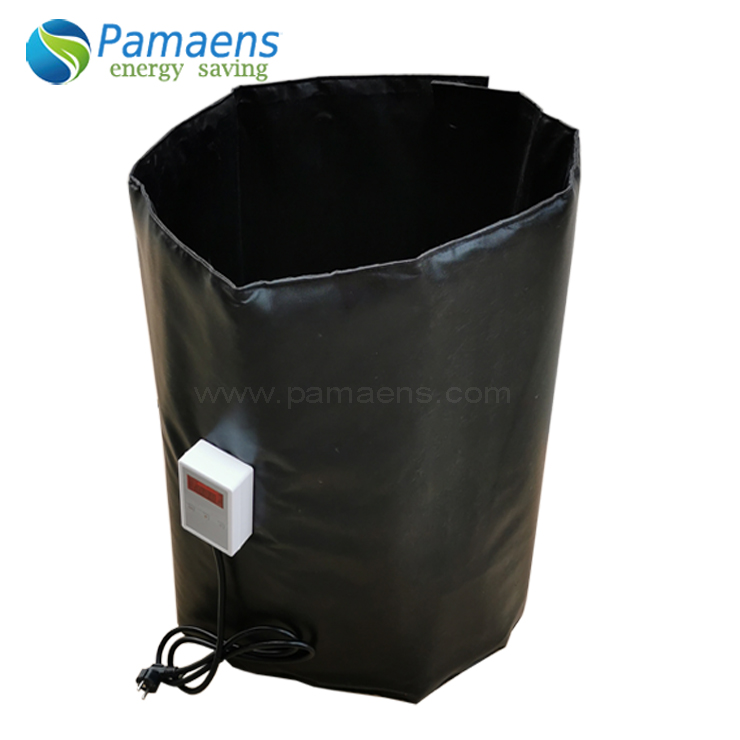

Products Show case of 2000 watt Drum Heater Heating Blanket
Standard export carton packing.
3-15 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, R&D and manufacturing heaters, plastic machinery parts and energy saving products. We have strong R&D team, many of our engineers have more than ten years experience on manufacturing heaters, and we have strict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.
- Dimension of the tank or drum
- Is this a hazardous (ATEX) area?
- What temperature do you want to heat to, and how quickly?
- What is the ambient temperature?
- What is inside the tank or drum?
- Is it solid or liquid at normal ambient temperature?
