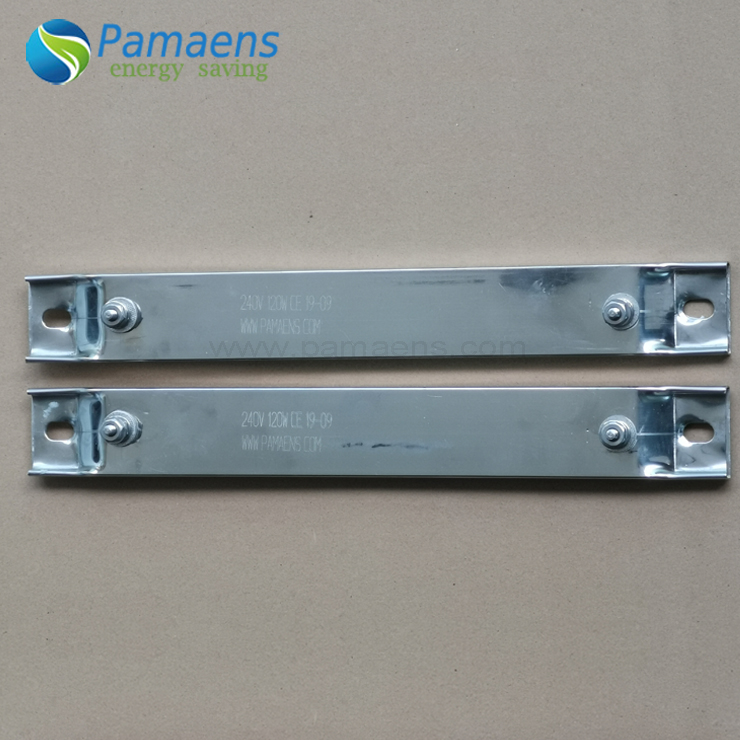

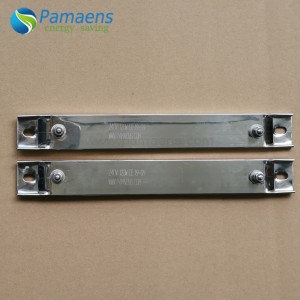

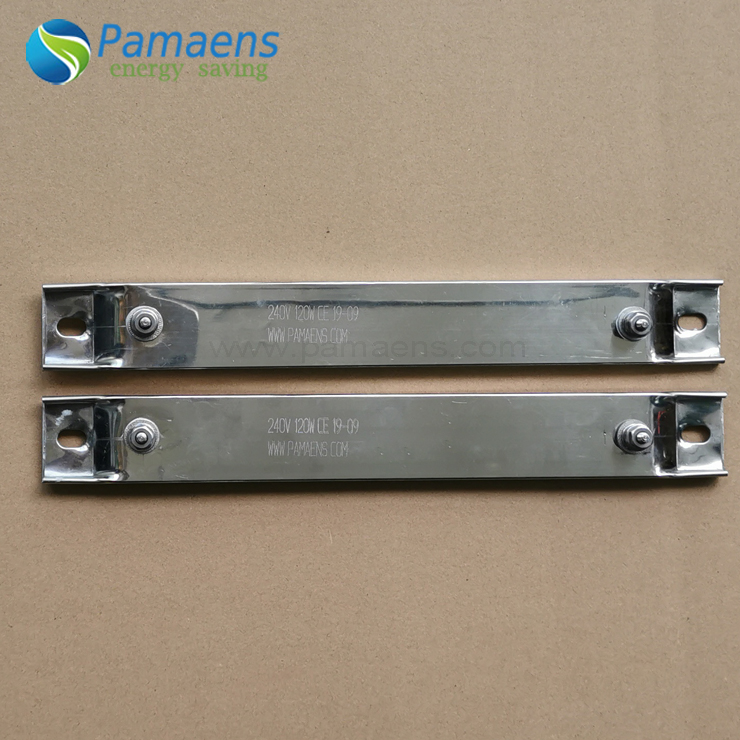

High Power Density 38mm Stainless Steel Strip Heater with Long Lifetime
38mm Stainless Steel Strip Heaters are constructed of specially selected high quality materials, beginning with the high temperature alloy resistance wire uniformly coiled and spaced over the width of the heated length of the strip heater. This controlled coil process and replacement assures uniform heat distribution over the entire active surface of the heater. Special care is taken to secure the stud-type terminal to the high-temperature alloy resistance contact.
The coiled resistance wire is embedded in a special refractory Material that possesses excellent heat transfer characteristics and superior insulation properties. The entire heater assembly is encased in either stainless or chrome steel sheath and is compressed under high pressure. The completed assembly is heated under controlled conditions to bake and semi vitrify the refractory for a rigid, vibration resistant, heavy-duty heating unit.

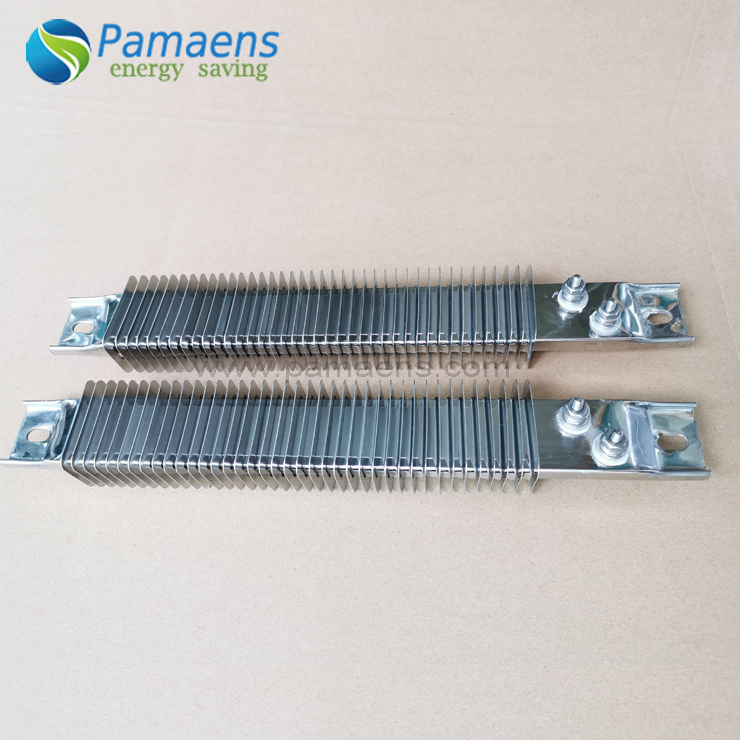

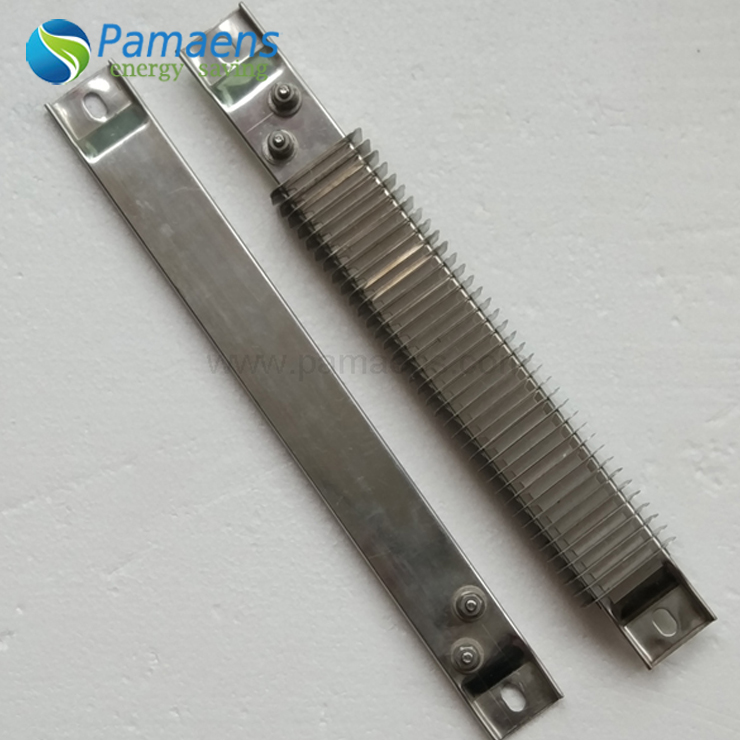

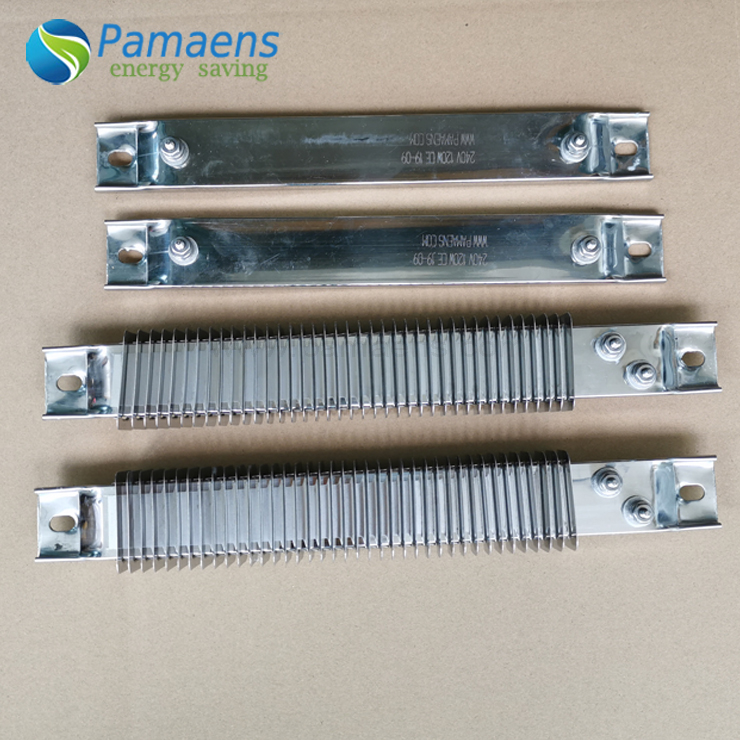

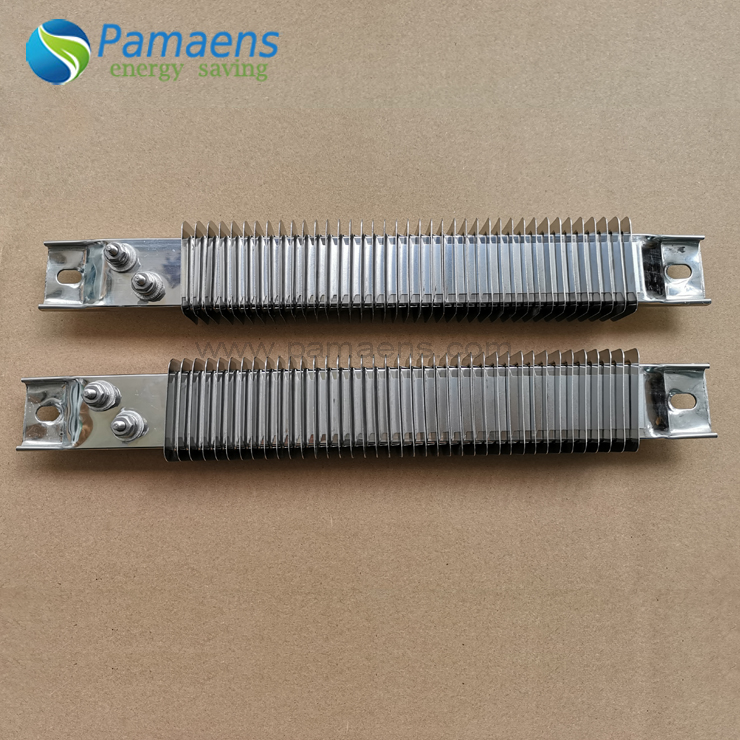

Finned Strip Heater can be finned to improve heat transfer. The fins are specially designed to provide maximum surface contact for good heat dissipation into the finned cross sections, thus resulting in rapid heat transfer to the air.
|Specifications of 38mm Stainless Steel Strip Heater
Ceramic Strip Heaters
|Working Temperature||Intermittent operating max. temp||800°C)|
|Continuous operating temp||550°C|
|Section size:||11 x 38mm|
|section size tolerance||-0.1mm to -1mm|
|Length tolerance||+/- 1 mm|
Construction of 38mm Stainless Steel Strip Heater
1. Seamless stainless steel sheath and fins
2. Post terminals
3. Ceramic element support
4. Element wire situated in close proximity to outside surface for maximum heat transfer and minimum internal temperature while preserving good dielectric qualities.
Applications of 38mm Stainless Steel Strip Heater
- Dies and mold heating
- Resistive Load Banks
- Food warming
- Freeze and moisture protection
- Tank and platen heating
Features of 38mm Stainless Steel Strip Heater
- Watt density: Max 35 w/in²
- Standard Strip width: 40mm
- Standard Finn dimension: 65X35mm
- Maximum Allowable Sheath Temperature:
- Rust resistant Mild Steel 500℃
- Stainless Steel 800℃
Order Guidance of 38mm Stainless Steel Strip Heater
- Width and Length
- Connection type and length
- Installation hole position
