High Heating Efficiency Custom Adhesive Silicone Strips 3M
Adhesive Silicone Strips 3M is extremely thin,light and flexible. And the heater with the silicone rubber electric heating plate can transfer heat to any required place . In processing it can improve heat transfer ,accelerate temperature rising and reduce power need. Glass fiber-reinforced silicone rubber can ensure the heater to be stable in dimension ,without losing flexibility .
(1)Design according to actual shape and dimension, and adopt three-dimensional geometry to satisfy the requirements of your equipment .
(2)Moisture-proof chemical defense silicone rubber material makes the service life of heater much longer .
(3)It can be simply pasted or attached to our component by vulcanizing, adhesive or fastener ,etc .
Technical data of Adhesive Silicone Strips 3M
Supply Voltage: 0~400 V, 1 or 3 phase
Insulation Material: Fiberglass reinforced Silicone Rubber
Max. Operating Temp.: 260 Deg C or 500 Deg F
Min. Element Temp.: -50 Deg C or -58 Deg F
Max.Power Density: 5 w/sq.cm depending on application
Resistance Tolerance: about +/- 5%
Standard Thickness: 1.5 mm
Flammability: Flame Retardant
Moisture Absorption: Moisture proof
Thermal Protection & Control: On board thermal fuse, thermostat, thermistor and PT100 are available as part of your thermal management solution.
Power Leads: 1 meter by default,other length available upon request
Mechanical pressure: 100.00kg/cm²
Minimum bending radius: 3.20mm
Benefits of Adhesive Silicone Strips 3M
1. Fast heating with a coefficient of heat conductivity of only 1W/m.k. Due to its small thermal capacity, prompt turn on/off can be achieved.
2. High thermal efficiency: The temperature of electric heating film itself is only tens of centidegrees higher than that of the liquid when heating, which is 2-3 times energy saving than ordinary electric stoves.
3. Water, acid and alkali resistance, high-strength of electric insulation.
4. High mechanical strength with 100kg/cm² mechanical pressure.
5. Small size: Small space occupied when applying this heating product.
6. Easy application: Its self-insulation and free-of-open-fire property greatly help simplify the techniques of heat preservation and thermal insulation.
7. Its wide range of temperature,-60°C~250°C, can not be simply achieved by other electrical appliances.
8. Long service time: Under normal use, the product almost can be permanently and continuously used because nickel and chrome materials are durable to any corrosion, and the silastic has a high surface resistance up to 100kg/cm², which is uncomparable for any other electric heaters.
9. Made in any size, the temperature of the product can be precisely adjusted by temperature controller.
Reference Temp and Dimensions of Adhesive Silicone Strips 3M
|Drum Volume||Heater size||Voltage (v)||Wattage (w)||Temp. Control range||Weight|
|200L||250*1740MM||220V||2000W||30-150℃ Mechanical adjustable||1.6Kg|
|200L||125*1740MM||220V||1000W||30-150℃ Mechanical adjustable||1.1Kg|
|20L||200*860MM||220V||800W||30-150℃ Mechanical adjutable||0.9Kg|
|20L||120*860MM||220V||500W||30-150℃ Mechanical adjutable||0.7Kg|
Applications of Adhesive Silicone Strips 3M
1. Industrial equipment, pipelines, barrels, tanks, etc.
2. Outdoors telecommunication equipment
3. Medical equipment and devices
5.Thermal imaging of imaging equipment
6. Case protection under cold and moist environment
7. Industrial ovens and thermal processing equipment
8. Ventilator supports
9. Laminating equipment

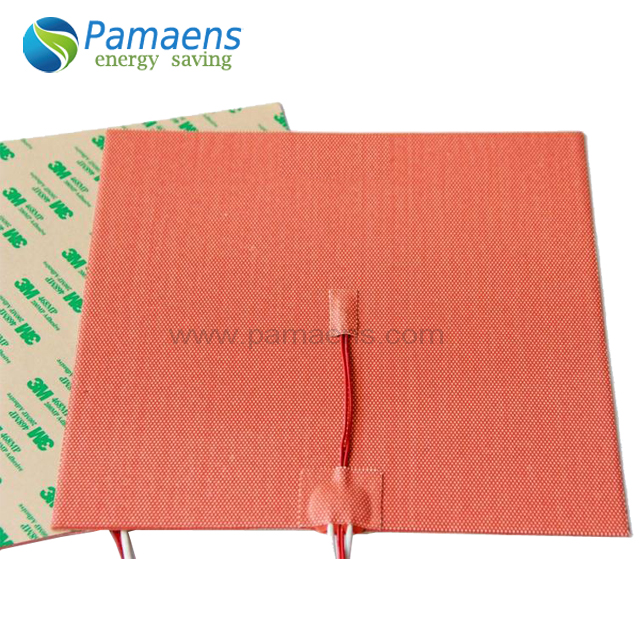

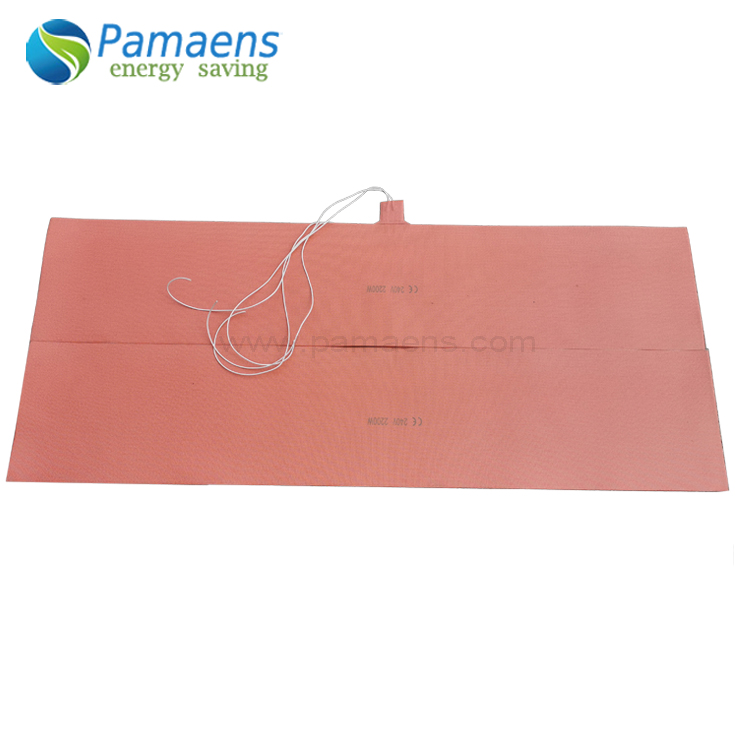

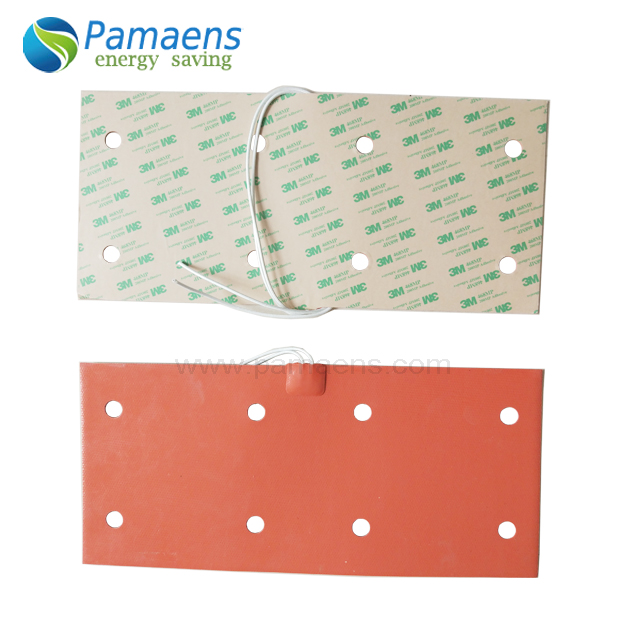

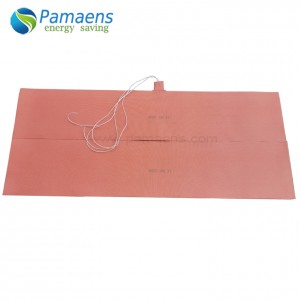

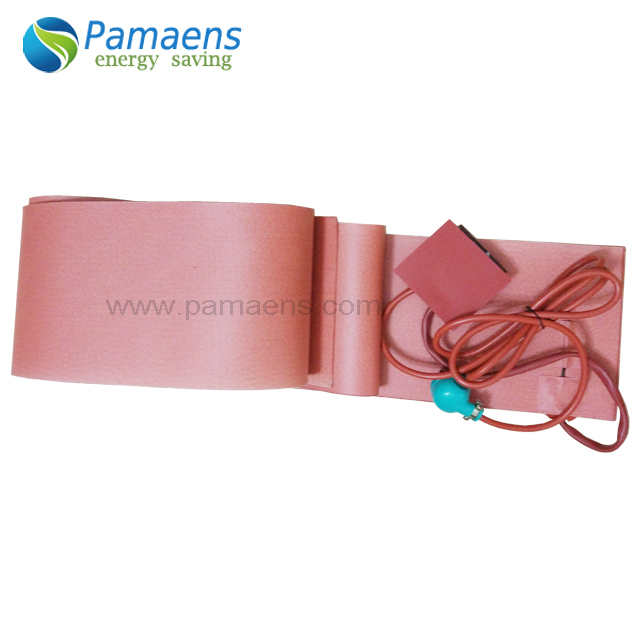

|Reference pictures of Adhesive Silicone Strips 3M|
Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.
- Width/diameter and Length
- Lead wire type and length
- Plug type (optional)
Question and reply you may concern:
We are factory and exporter, own ISO9001 and Research and development team and QC department.
Do you accept customized?
Yes , we are ready to turn your great design into perfect products, of course, your special design will be completely confidential. At same time, we are good designer ourselves.
How is your shipping?
We could send the goods on your instruction, if you do not want to handle shipping yourself, we could handle shipping for you. Shortest delivery time and lowest freight are our target, so the freight we provided are always the best, because we check many forwarders and get the best freight for you.
Why choose us?
Lowest default rate
One to two year warranty
Best and on time after sale service
