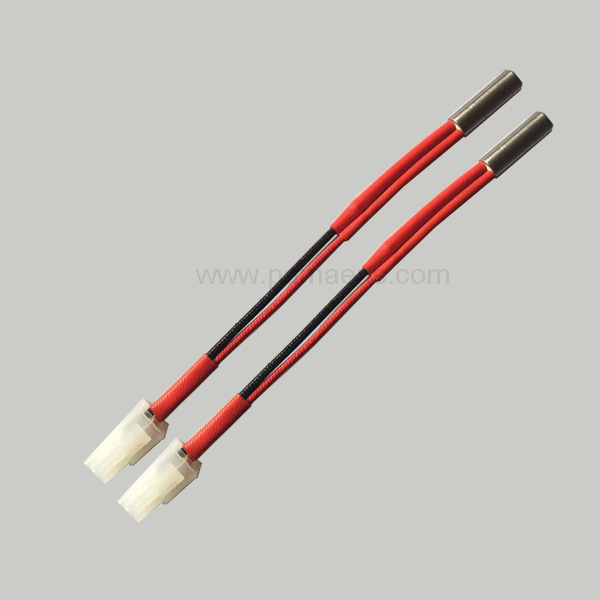

Cartridge Heater for 3D Printer

Short Description:

Our cartridge heating elements provide the best heating solutions for 3 D printer. It has high temperature output, heating up rapidly. Temperature resistance is as high as 500 deg C. Lifetime is as long as 5 years.


  • FOB Price: US $2- 30 / Piece
  • Min.Order Quantity: 5 Piece/Pieces
  • Supply Ability: 100000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production Time: 10-15 days
  • Product Detail

    Product Tags

    Specification

    Item Name

    Cartridge Heater for 3D Printer

    Item No.

    PM-CH

    Voltage

    6-220v

    Wattage

    Customized

    Wattage density

    1w-25w per square centimeter

    Dimensions

    Customized

    Max. Operation Temp:

    700 Deg C

    Diameter tolerance

    -0.1mm

    Length tolerance

    +/- 1 mm

    Wattage tolerance

    +/- 5 w

    Cold part length

    5-10 mm (could be customized)

    Certificates

    CE, RoHs

    Packaging

    Blister packing with carton box / fumigation free wooden cases

    Material

    Resistance Wire

    Cr20Ni80, high quality Swedish resistance wire is available

    Insulation

    Compacted magnesium Oxide, high purity

    Sheath material

    SUS304/SUS316L/Incoloy 800/Titanium etc

    Lead wire

    Pure nickel glass fiber wire, silicone wire, stainless steel braided wire ect

    Accessories Information

    Built in thermocouple

    K type or J type

    Connectors

    Optional

    Introductions of Cartridge Heater for 3D Printer

    Our cartridge heating elements provide the best heating solutions for 3D printer. It has high temperature output, heating up rapidly. Temperature resistance is as high as 500 deg C. Lifetime is as long as 5 years.

    The Feature of Cartridge Heater for 3D Printer

    Tube diameter: Φ3mm-Φ6mm

    Tube Material: SS304, SS316, SS321 and NICOLOY800 etc

    Insulation Material: High-purity MgO

    Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire

    Wattage density: high/middle/low (5-25w/cm2)

    Lead Connection Option: Crimped or Swaged leads

    Lead wire type: 500mm Standard (Teflon/silicone high temperature fiberglass)

    The Advantages of Cartridge Heater for 3D Printer

    High power density

    Heating up rapidly

    High temperature resistance

    Long lifetime

    Precise dimensions

    RFQ

    1. Diameter

    2. Length

    3. Internal connection or external connection

    4. Voltage & wattage

    5. What type of lead wire and it’s length

    6. Quantity
