Specification |
|
|
Item Name |
Customized Heating Jackets |
|
Item No. |
PM-CHJ |
|
Voltage |
90-250v |
|
Wattage |
Customized |
|
Wattage density |
100w-3000w per square meter |
|
Dimensions |
Customized |
|
Heating zones: |
One to three heating zones are available |
|
Max. Operation Temp: |
260 Deg C |
|
Min. Operation Temp: |
-50 Deg C |
|
Standard Thickness |
5-30mm |
|
Certificates |
CE |
|
Packaging |
Carton box / Fumigation free wooden cas |
|
Color |
Grey / Black / Blue |
|
Material |
|
|
Internal layer |
Silicone coated glass fiber cloth / Oxford cloth |
|
Middle layer |
High quality heating wire and aramid fiber (AFRP) insulation |
|
External layer |
Silicone coated glass fiber cloth / glass fiber reinforced aluminum cloth |
|
Accessories Information |
|
|
Temperature control |
Digital / -50-190 deg C, Mechanical -20-150 deg C |
|
Thermostat |
Limit the temperature of the heater to certain temperature (optional) |
|
Power cord |
one to three meters with customized plug |
|
Coverage: |
Full coverage or half coverage |
|

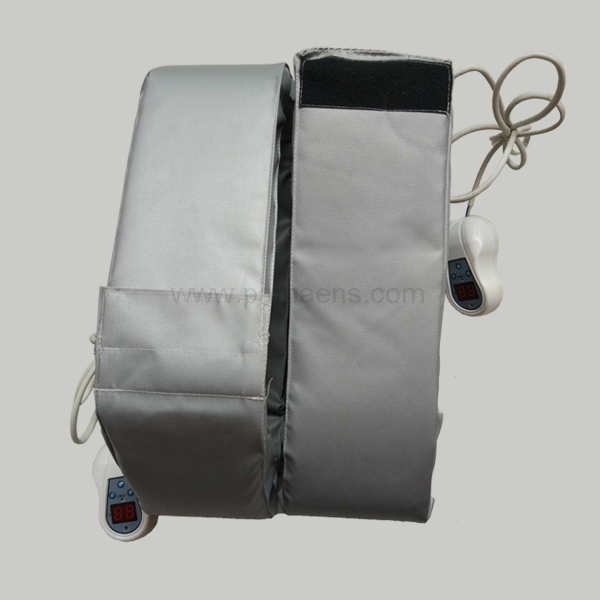

Introductions of Customized Heating Jackets |
|
|
Customized Heating Jacket is an industry-leading, full-coverage or half-coverage industrial heating blanket specifically designed for plastic or metal drums, tanks, buckets, propane cylinders, valves, pipes, modes etc. The heater jacket runs at 90-250v, 100-6000watts. PAMAENS has changed the conventional method of transferring heat to gas cylinders. This revolutionary design optimizes container pressure and increases cylinder efficiency. It heats the containers or modes to a preset, reliable temperature of -55-260 ºC. And the temperature is controlled precisely by the temperature control of the heater. |
|
|
The feature of Customized Heating Jackets |
|
|
A. Thickened the thermal insulation layer make the heating blanket has better thermal insulation, and faster heating up. |
|
|
B. Smoothly lied resistant wire makes the heating blanket heating Uniform. |
|
|
C. High temperature resistance flame retardant fabrics are used. |
|
|
D. The heating blanket is designed with connection and fixation device, by which the heating area could extend easily. |
|
|
E. Different with insulation surface, the temperature tolerance of heating surface is more than 260℃. |
|
|
F. The heating blanket is built in temperature control in case of burning of the heating blanket by abnormal use. |
|
|
G. Several temperature probes are layout uniformly, making sure the uniform heating. |
|
|
Advantages of Customized Heating Jackets |
|
|
1. Integrated type |
|
|
2. Custom size and shape |
|
|
3. Full coverage heating and insulation, high thermal and heating efficiency |
|
|
4. Good flexibility |
|
|
5. Uniform heating |
|
|
6. Built-in overheat switch to prevent accidental burning of heated body |
|
|
7. Large range, high power, fast heating. |
|
|
8. High insulation performance of all material |
|
|
9. Easy to install and remove, safer and adjustable |
|
|
RFQ |
|
|
1. Dimension of the drum |
|
|
2. Voltage & Wattage |
|
|
3. What’s the initial temperature of the gas |
|
|
4. What’s the target temperature of the gas |
|
|
5. Plug type (optional) |
|
|
6. Quantity |
|
