Customized Flexible Pipe Heating Jackets with Adjustable Temperature Control

Short Description:

PAMAENS flexible heating jackets are made of high quality durable heating wire, insulation blanket, flame retardant flexible cloth, which are suitable as trace heaters for customer pipes, also pre-shaped pipes. Heating of bundles of pipes is also possible. PAMAENS heating jackets are removable and resuable, and our heating jackets has fastern system and temperature control system, so the customer has a heating system that is easy to install and can be replaced.


  • FOB Price: US $50- $600 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 5000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Product Detail

    Product Tags

    Introductions of Flexible Pipe Heating Jackets



    PAMAENS flexible heating jackets are made of high quality durable heating wire, insulation blanket, flame retardant flexible cloth, which are suitable as trace heaters for customer pipes, also pre-shaped pipes. Heating of bundles of pipes is also possible.

    PAMAENS heating jackets are removable and resuable, and our heating jackets has fastern system and temperature control system, so the customer has a heating system that is easy to install and can be replaced.



    Operating temperature from frost protection to 500°C
    Rated voltage 110v or 230 V AC (other voltages could be customized)
    Rated power depending on sizes and heating temperature
    Heat insulation up to 250°C silicone
    up to 450°C textile glass
    up to 500°C silicate fibre
    Heating jacket lengths 0.3 m up to approx. 10 m; optionally can also be split into individual segments, so that greater lengths or complete installations can be incorporated in the system.
    Temperature sensor Fe-CuNi type J, NiCr-Ni type K, PT100 and integral control system possible
    Pipe diameter from capillary to 20 mm outer diameter (larger diameters on request)
    Bend radii adaptable to the heating system
    Connecting cable 1.8 m / 3 m
    Plug connection optional

    The feature of Flexible Pipe Heating Jackets

    A.Thickened the thermal insulation layer make the heating blanket has better thermal insulation, and faster heating up.

    B. Smoothly lied resistant wire makes the heating blanket heating Uniform.

    C. High temperature resistance flame retardant fabrics are used.

    D. The heating blanket is designed with connection and fixation device, by which the heating area could extend easily.

    E. Different with insulation surface, the temperature tolerance of heating surface is more than 260℃.

    F. The heating blanket is built in temperature control in case of burning of the heating blanket by abnormal use.

    G. Several temperature probes are layout uniformly, making sure the uniform heating.



    Advantages of Flexible Pipe Heating Jackets

    1. Integrated type

    2. Custom size and shape

    3. Full coverage heating and insulation, high thermal and heating efficiency

    4. Good flexibility

    5. Uniform heating

    6. Built-in overheat switch to prevent accidental burning of heated body

    7. Large range, high power, fast heating.

    8. High insulation performance of all material

    9. Easy to install and remove, safer and adjustable

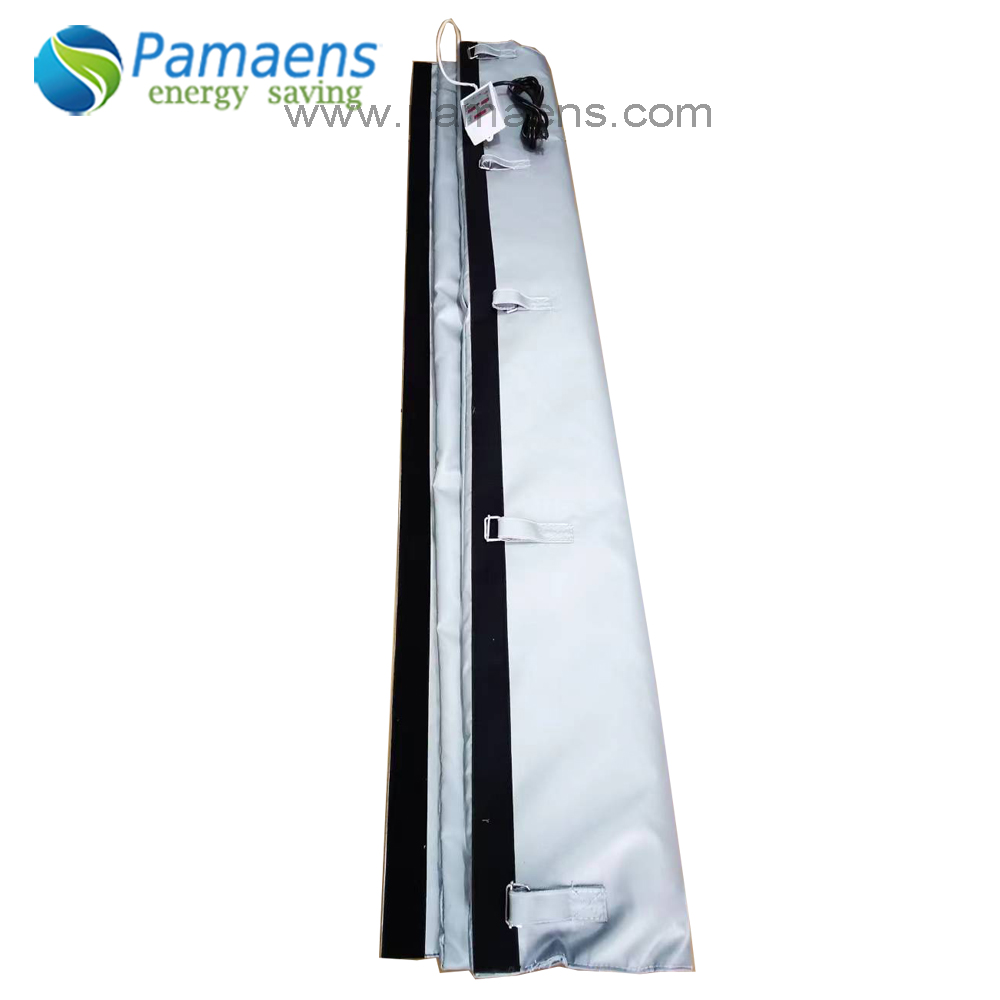

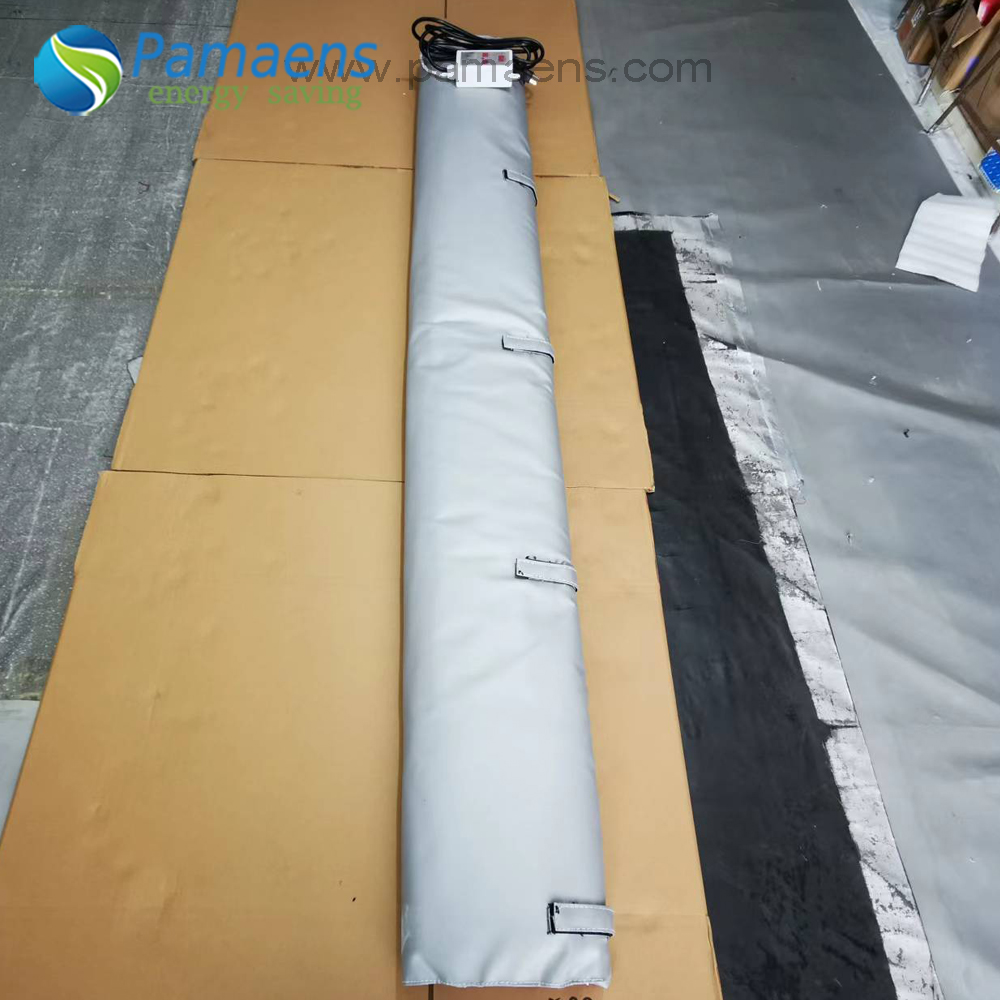

    Products Show case of Flexible Pipe Heating Jackets



    Pipe heating jacket-8.jpg -9.jpg
    -1.jpg -2.jpg
    -5.jpg -6.jpg
    -7.jpg -8.jpg
    Drum heater-221.jpg Heating jacket-3.jpg



    Packaging & Shipping

    Package and shipping of Flexible Pipe Heating Jackets

    Standard export carton packing.

    DELIVERY TIME:

    3-15 days after confirming order,detail delivery date should be decided according to
    production season and order quantity.


    Our Services
    220L plastic drum heater self temperature controlled
    Company Information

    About us



    bathroom tubular heater

    Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, R&D and manufacturing heaters, plastic machinery parts and energy saving products. We have strong R&D team, many of our engineers have more than ten years experience on manufacturing heaters, and we have strict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.



    220L plastic drum heater self temperature controlled

    How to Order



    Ordering of Flexible Pipe Heating Jackets

    1. Width/diameter and Length
    2. Voltage
    3. Power
    4. Lead wire type and length
    5. Plug type (optional)
    6. Quantity



    FAQ
    QHow can I get the sample to check your quality?

    AAfter price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.

    QWhat can I get the price?

    AWe usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

    QWhat is your term of delivery?

    AWe accept EXW, FOB or C&F Shanghai, DDU etc. You can choose the one which is the most convenient or cost effective for you.


    QWhat about the lead time for the mass production?

    A NrnoooOur production time is 10-20 days depends on the order quantity and the season you place the order.
