Infrared Heating Elements

Short Description:

Infrared Heating Elements are working under temperature 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the range of 2 to 10 micron, which is in the most suitable distance for plastics and many other materials absorb, which makes infrared ceramic heater the most efficient infrared radiant emitter on the market.

  • FOB Price: US $3-15 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 5-15 days
  • Product Detail

    Product Tags

    High Performance Infrared Heating Elements

    Infrared Heating Elements are working under temperature 300°C to 700°C (572°F – 1292°F) producing infrared wavelengths in the range of 2 to 10 micron, which is in the most suitable distance for plastics and many other materials absorb, which makes infrared ceramic heater the most efficient infrared radiant emitter on the market.

    A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.

    Our Infrared Heaters are designed to produce maximum output in form of heat energy. They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against any damage.
    Longer service life is achieved since the resistance of the heaters is made to remain constant over the whole temperature range. The glaze used in this heater has excellent radiation properties therefore the radiation efficiency is also very high.

    Construction and material of Infrared Heating Elements

    Insulator: High thermal shock resistance ceramic material

    Resistance wire: High quality Ni80Cr20

    Glaze Layer: good radiation metal oxide materials with moderate additives to increase radiation intensity and enhance the suitability of the glaze.

    Reference standard sizes of Infrared Heating Elements

    1.   60*60mm;60mm*120mm;120mm*120mm;240mm*60mm;240mm*80mm

    2.   Other sizes, power and voltage can be customized

    3.   Built in thermocouple available

    Features of Infrared Heating Elements

    1.     Radiation feature: The monochromatic radiation rate of our infrared ceramic heater reaches 90%, and the reverse radiation rate is larger than 83%.

    2.     Thermal response time: Less than 20 minutes from the room temperature to the set temperature

    3.     Durability: The surface keeps smooth after five times heating and cooling exchanges.

    4.     The radiation surface temperature uniformity: ≤15%

    5.     Power error: ≤5%

    6.     Cold insulation resistance: 500V mega meter >2m

    7.     Thermal insulation resistance: 500V megameter >0.5m

    8.     The service life of >3000 hours


    Applications of Infrared Heating Elements

    In Thermoforming & Vacuum Forming Machines

    In PVC Pipe Belling / Socketing Machines

    In Hot Stamping Machines

    As Heat Therapy Equipment

    In Shrink Packaging

    Application Cases of Infrared Heating Elements

    Reference pictures of Infrared Heating Elements

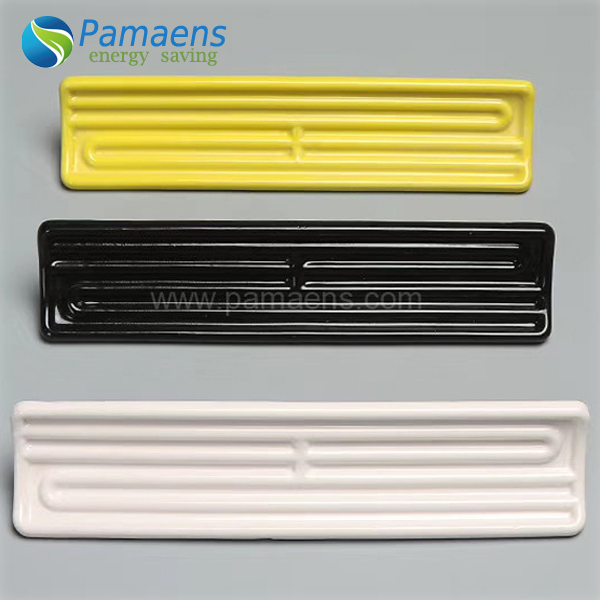

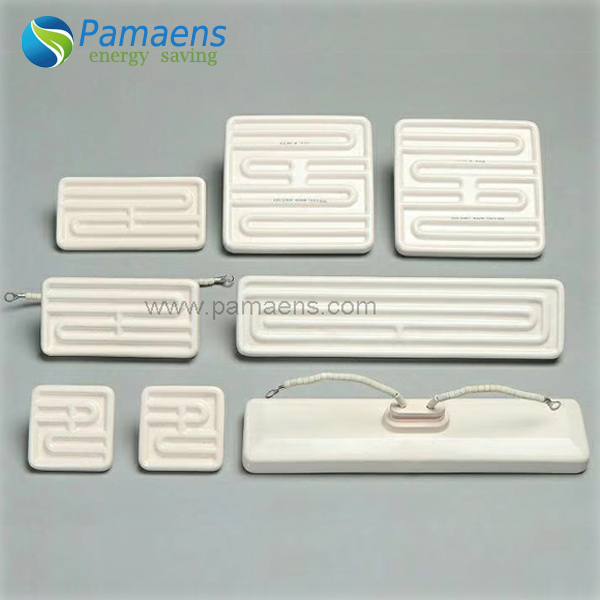

    Infrared ceramic heater-5.jpg Infrared ceramic heater-6.jpg
    Infrared ceramic heater-13.jpg Infrared ceramic heater-19.jpg

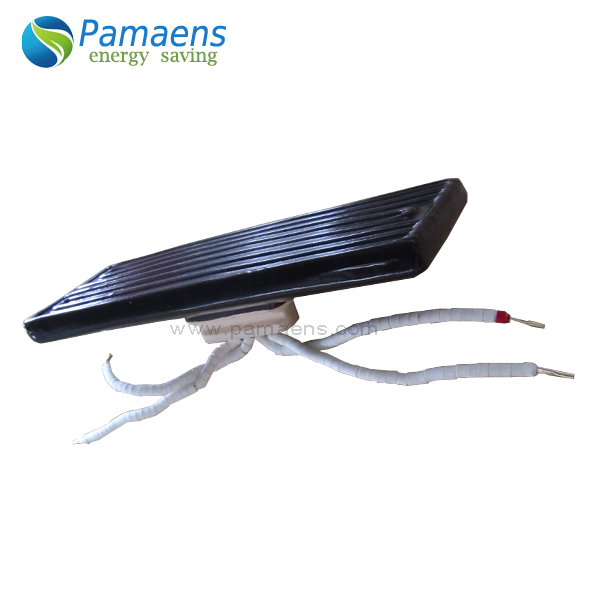

    Infrared ceramic heater-21.jpg Infrared ceramic heater-24.jpg

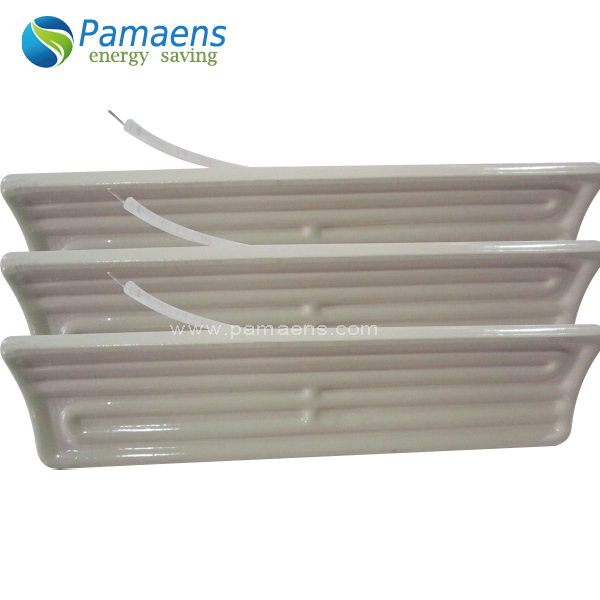

    Infrared ceramic heater-18.jpg Infrared ceramic heater-25.jpg
    Packaging & Shipping


    Our Services


    Company Information

    Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.





    Length and width of the heater

    Shape of the heater: Hollow, Trough, Flat, ceramic bulb

    Voltage & Power

    Built-in thermocouple type, J type or K type (optional)



    Question and reply you may concern

    Are you a trading company?

    We are factory and exporter, own ISO9001 and  Research and development team and QC department.

    Do you accept customized?

    Yes , we are ready to turn your great design into perfect products, of course, your special design will be completely confidential. At same time, we are good designer ourselves.

    How is your shipping?

    We could send the goods on your instruction, if you do not want to handle shipping yourself, we could handle shipping for you. Shortest delivery time and lowest freight are our target, so the freight we provided are always the best, because we check many forwarders and get the best freight for you.

    Why choose us?

    Lowest default rate

    One to two year warranty

    Best and on time after sale service

    You are worried, we would like you to think
