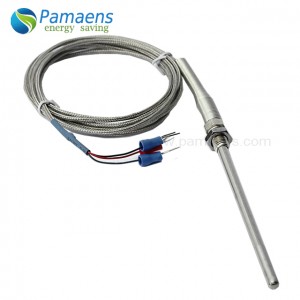

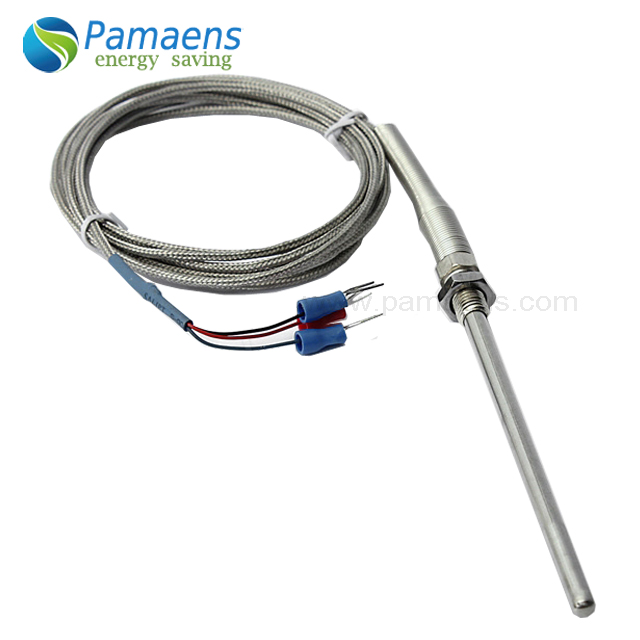

Fast Response K Type Thermocouple 1200 Degree

Short Description:

A thermocouple is a simple, robust and cost-effective temperature sensor used in a wide range of temperature measurement processes. It consists of two dissimilar metal wires, joined at one end. When properly configured, thermocouples can provide measurements over a wide range of temperatures.


  • FOB Price: US $2- 30 / Piece
  • Min.Order Quantity: 10 Piece/Pieces
  • Supply Ability: 100000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 10-15 days
  • Product Detail

    Product Tags

    Specifications of K Type Thermocouple

    Product name Screw type thermocouple Length of compensation wire 0.5 -1000 meter
    Model No. WRNT-02 Material of probe Brass
    Type K/J/ (E type could be customized) Material of wire Precision shielded wire
    Temperature range 0-600 deg C/ 0-400 deg C Insulated Yes
    Screw M6 or M8 Installation Install by screw



    Description of K Type Thermocouple

    A thermocouple is a simple, robust and cost-effective temperature sensor used in a wide range of temperature measurement processes. It consists of two dissimilar metal wires, joined at one end. When properly configured, thermocouples can provide measurements over a wide range of temperatures.

    Known for their versatility as temperature sensors, thermocouples are manufactured in a variety of styles, such as thermocouple probes,thermocouple probes with connectors, transition joint thermocouple probes, infrared thermocouples, bare wire thermocouple or even just thermocouple wire.



    Features of K Type Thermocouple

    •  Customized diameter, sheath lengths and lead length
    •  Stainless steel braided or hose protection
    •  K, J, T and E calibrations
    •  Grounded, ungrounded and exposed junctions
    •  Flat and drill point
    •  Epoxy sealed cold ends
    •  Flexible extensions
    •  Miner coated and stainless steel sheaths
    •  Straight, 45° bend or 90° bend
    •  12 mm and 15 mm locking bayonet caps



    Performance Capabilities of Thermocouple

    Thermocouples are suitable for measuring over a large temperature range, from −270 up to 3000 °C (for a short time, in inert atmosphere).Applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, other industrial processes and fog machines. They are less suitable for applications where smaller temperature differences need to be measured with high accuracy, for example the range 0–100 °C with 0.1 °C accuracy. For such applications thermistors, silicon bandgap temperature sensors and resistance thermometers are more suitable.



    Applications of K Type Thermocouple

    • Food processing equipment

    • De-icing

    • Plating baths

    • Industrial processing

    • Medical equipment

    • Pipe tracing control

    • Industrial heat treating

    • Packaging equipment

    • Liquid temperature measurement

    • Refrigerator temperature control

    • Oven temperature control



    Reference pictures of K Type Thermocouple



    Thermocouple-68.jpg Thermocouple-69.jpg
    Thermocouple-82.jpg Thermocouple-76.jpg
    Thermocouple-85.jpg Thermocouple-70.jpg
    Thermocouple-12.jpg Thermocouple-17.jpg

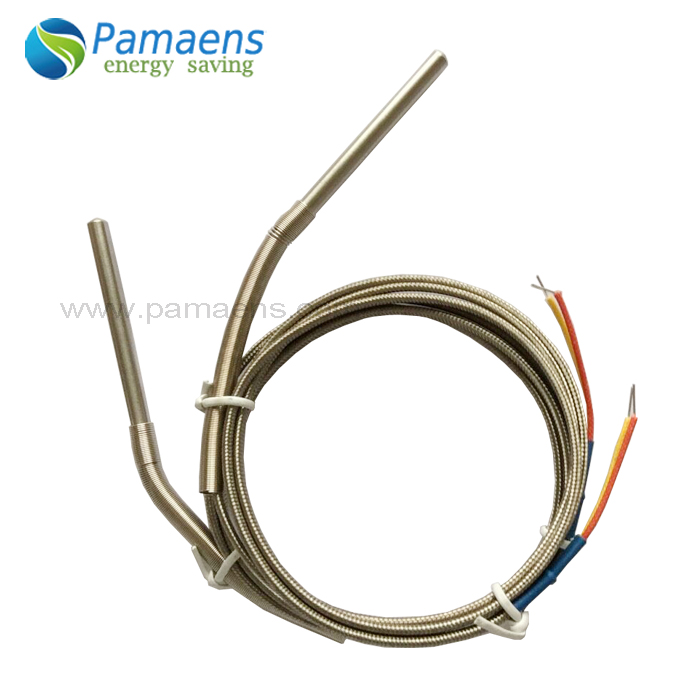

    Thermocouple-26.jpg Thermocouple-67.jpg
    Packaging & Shipping
    Fumigation free wooden case or cardboard box for K Type Thermocouple

    Our Services

    u shape tubular heater

    Company Information

    Factory-1

    Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, R&D and manufacturing heaters, plastic machinery parts and energy saving products. We have strong R&D team, many of our engineers have more than ten years experience on manufacturing heaters, and we have strict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.


    Certifications

    u shape tubular heater



     Order Guidance of K Type Thermocouple



    1. Diameter and length of probe
    2. Type, K type, J type, E type, T type etc.
    3. Temperature range
    4. Length of wire, and type of wire
    5. Thread modle number if have
    6. Quantity
    FAQ

    How can I get the sample to check your quality?

    After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.



    What can I get the price?

    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.



    What is your term of delivery?

    We accept EXW, FOB or C&F Shanghai, DDU etc. You can choose the one which is the most convenient or cost effective for you.



    What about the lead time for the mass production?

    Our production time is 10-20 days depends on the order quantity and the season you place the order.
