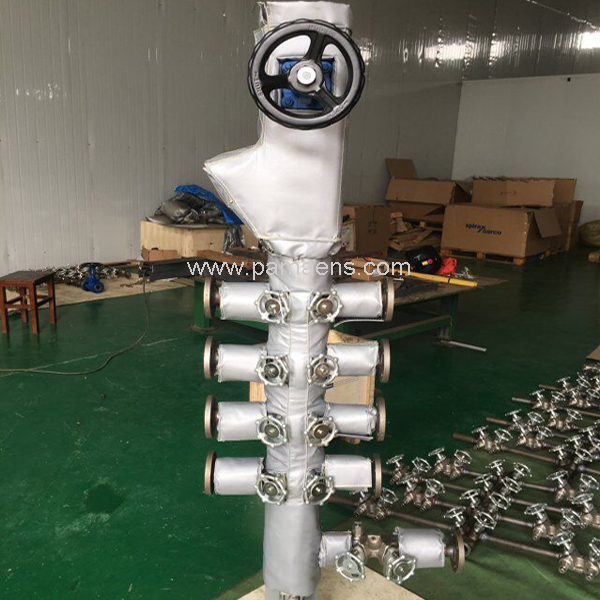

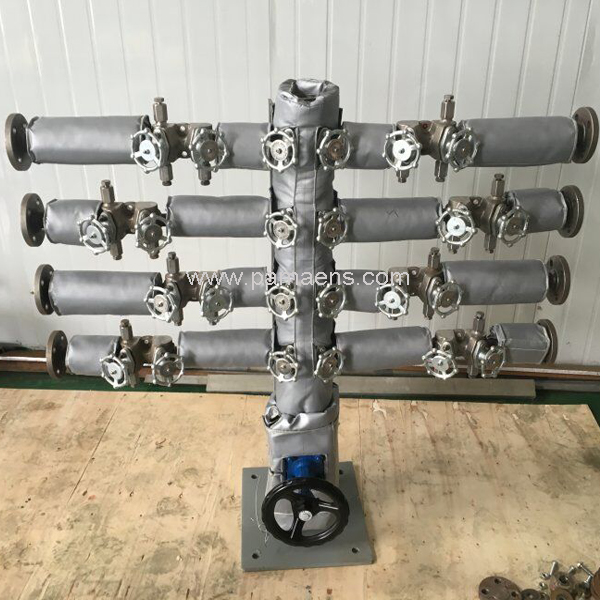

Manifold Insulation Cover

Short Description:

Manifold Insulation Cover has three to five layers, liner is glass fiber cloth or ceramic fiber cloth, and insulating layer is ceramic or glass fiber insulation blanket, and the protection layer is ceramic fiber with high temperature resistance paint coat, which is water, oil, acid and alkali proof.


  • FOB Price: US $10- 99 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 7-15 days
  • Product Detail

    Product Tags

    Specification

    Item Name

    Manifold Insulation Cover

    Item No.

    PM-MIC

    Dimensions

    Depending on the dimensions of the valves

    Max. Operation Temp:

    1150 Deg C

    Thickness:

    5-150mm (could be customized)

    Construction

    Three to four layers

    Material attributes

    Water, oil and acid resistance, fire proof

    Thermal conductivity

    0.035 W/M•K- 0.045 W/M•K±0.005 (Normal temperature)

    Everage energy saving rate

    25% to 40%

    Normal lifetime

    3 to 5 years

    Packaging

    Carton box / fumigation free wooden cas

    Warranty

    One Year

    Material

    Liner

    Glass fiber / ceramic fiber / SS braided cloth/ teflon cloth / High-silica cloth etc depending on the operation temerature

    Filling material

    Glass fiber insulation blanket / ceramic fiber insulation blanket / aerogel insulation blanket etc

    External layer

    Silicone coated glass fiber cloth / teflon cloth

    Sewing thread

    High temperature resistance aramid thread

    Accessories Information

    Fittings

    Velcro, straps, clips, spring and hook etc

    Introductions of Manifold Insulation Cover

    Manifold Insulation Cover has three to five layers, liner is glass fiber cloth or ceramic fiber cloth, and insulating layer is ceramic or glass fiber insulation blanket, and the protection layer is ceramic fiber with high temperature resistance paint coat, which is water, oil, acid and alkali proof. The standard thickness is about 25 to 30 mm. Removable, valve insulation jackets are an effective and convenient way to prevent heat loss, and protect equipment and personnel. Our valve insulation jackets are designed with draw cords and lacing hook and wire. This makes them easy to install, remove, and reinstall.

    The types of Manifold Insulation Cover

    A) Cold insulation type

    B) Low temperature insulation type (below 300℃);

    C) Standard type (300—600℃).

    D) High temperature insulation type (above 600 C).

    The features of Manifold Insulation Cover

    Thermal conductivity: 0.035 W/M•K- 0.045 W/M•K±0.005 (Normal temperature)

    Temperature tolerance: high temperature tolerance: 1000-280℃, low temperature tolerance 70℃

    Inflaming retarding: non flammable (Fireproof A class, GB8624-2006, German standard DIN4102, A1 class)

    Density: 110-220Kg/m

    Thickness: 5-150MM

    Moisture absorption rate: <5%

    The applications of Manifold Insulation Cover

    Gate valves

    Globe valves / ball valves

    Butter-fly valves

    Check valves

    Etc

    Benefits of Manifold Insulation Cover

    Removable & Reusable

    Personnel Protection

    Meets & Exceeds OSHA’s “Touch Safe” Rating

    Reduces Energy Consumption

    Improves Equipment Efficiency & Longevity

    Reduces Heat Loss & Unnecessary Emissions

    RFQ

    1. Dimensions or drawing of the valves which will be covered

    2. Surface temperature of the valves

    3. Thickness of the thermal insulation jacket or blankets

    4. Type, PN and DN number of the valves
