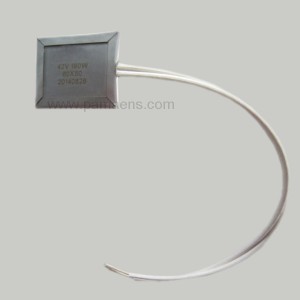

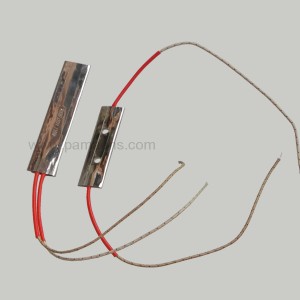

Mica Heating Plate

Short Description:

Mica heating plate is one kind heating element of making resistance twist on insulation mica sheet. Mica heater plate ( heater band ) use good insulation property mica and heat-resistant property, mica plate ( sheet ) as support and insulation layer, stainless steel board as support protection shell, it can be made as plate shape, sheet shape, column shape, canister shape, band shape etc different shapes heating element.


  • FOB Price: US $8- 99 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 7-15 days
  • Product Detail

    Product Tags

    Specification

    Item Name

    Mica Heating Plate

    Item No.

    PM-MHP

    Voltage

    6~480 V, 1 or 3 phase

    Wattage

    Customized

    Types

    Square type, round type, L type etc

    Standard Thickness

    5 mm -15 mm

    Maximum wattage density

    5 w/sq cm

    Sheath temperature

    600°C

    Max. operating temp:

    600°C

    Wattage tolerance

    +/- 5%

    Certificates

    CE, RoHs

    Packaging

    Fumigation free wooden case

    Material

    Core

    Cr20Ni80, high quality Swedish resistance wire is avalible

    Sheath material

    SS304, SS201,zinc coating aluminum sheet

    Insulation

    High quality mica sheet

    Accessories Information

    Connection

    Connection box, direct wire, ceramic wiring block, binding posts, plugs etc

    High temperature wire

    Fiber glass wire, stainless steel braided wire, Armour cable etc

    Introductions of Mica Heating Plate

    Mica heating plate is one kind heating element of making resistance twist on insulation mica sheet. Mica heater plate ( heater band ) use good insulation property mica and heat-resistant property, mica plate ( sheet ) as support and insulation layer, stainless steel board as support protection shell, it can be made as plate shape, sheet shape, column shape, canister shape, band shape etc different shapes heating element. It can be designed high power as 1000W, max temperature 600 °C

    The feature of Mica Heating Plate

    1. Heat-resistant, endure high temperature as 600°C.

    2. Good insulation property, insulation resistance is bigger than 100.

    3. Light weight, thin thickness, small volume, big power.

    4. Mica band heater can be easily designed any shapes according to demand, low cost.

    The applications of Mica Heating Plate

    Plastic Extrusion

    Injection Molding

    Blow-Molding

    Pressure Molding

    Structural Foam

    Food Industry

    Container Pipe and Tank Heating

    Packaging

    Chemical, Oil & Gas Industries

    RFQ

    1. Length, width, and thickness

    2. Voltage & wattage

    3. Connection type

    4. Wire length if have

    5. Position of holes if have

    6. Polished or un polished

    7. Quantity
