Specification |
|
|
Item Name |
PT100 Sensor |
|
Item No. |
PM-PT100 |
|
Size |
Customized |
|
Calibrations of thermocouple |
PT100/PT1000 |
|
Response time |
3-5 s |
|
Temperature |
0 to 1200 deg C |
|
Prob material |
Miner coated and stainless steel sheaths |
|
Types |
Probe, Screw, 1/4 NPT, M6, M8 |
|
Shapes |
Straight, 45° bend or 90° bend |
|
Accuracy |
Class A or Class B |
|
Certificates |
CE, RoHs |
|
Packaging |
Fumigation free wooden case |
|
Material |
|
|
Prob |
SS 304, SS 316L |
|
Wire |
Fiber glass wire, SS braided wire, teflon wire, PETF wire, silicone wire etc |
|
Accessories Information |
|
|
Thread or flange |
Customized |
|
Connection box |
Optainal |
|
Connectors |
Optainal |
|

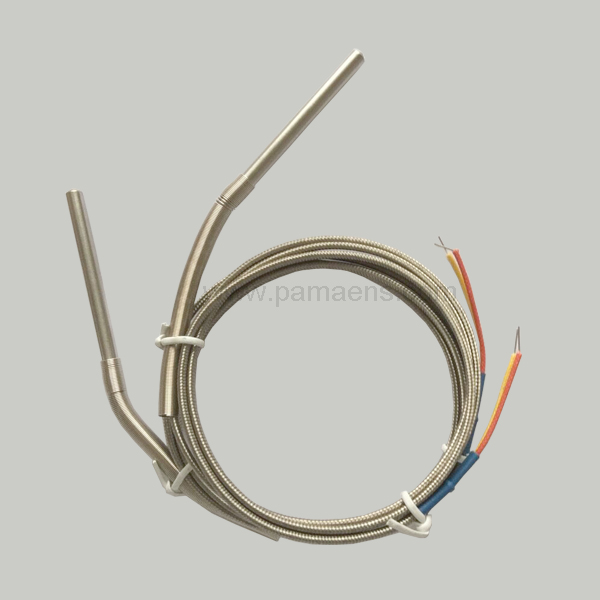

Introductions of PT100 Sensor |
|
|
PT100 sensors consists of two conductors of different materials (usually metal alloys) that produce a voltage in the vicinity of the point where the two conductors are in contact. The voltage produced is dependent on, but not necessarily proportional to, the difference of temperature of the junction to other parts of those conductors. Thermocouples are a widely used type of temperature sensor for measurement and control and can also be used to convert a temperature gradient into electricity. |
|
|
The feature of PT100 Sensor |
|
|
Customized diameter, sheath lengths and lead length |
|
|
Stainless steel braided or hose protection |
|
|
PT100 and PT1000 |
|
|
Grounded, ungrounded and exposed junctions |
|
|
Flat and drill point |
|
|
Epoxy sealed cold ends |
|
|
Flexible extensions |
|
|
Miner coated and stainless steel sheaths |
|
|
Straight, 45° bend or 90° bend |
|
|
12 mm and 15 mm locking bayonet caps |
|
|
The applications of PT100 Sensor |
|
|
1. Food processing equipment |
|
|
2. De-icing |
|
|
3. Plating baths |
|
|
4. Industrial processing |
|
|
6. Medical equipment |
|
|
7. Pipe tracing control |
|
|
8. Industrial heat treating |
|
|
9. Packaging equipment |
|
|
10. Liquid temperature measurement |
|
|
11. Refrigerator temperature control |
|
|
12. Oven temperature control |
|
|
RFQ |
|
|
Diameter and length of probe |
|
|
Type of the extended wire and length |
|
|
Temperature range |
|
|
Thread type if have |
|
|
Quantity |
|
