Specification |
|
|
Item Name |
Cast Bronze Band Heater / Cast Brass Heater |
|
Item No. |
PM-CBBH |
|
Voltage |
110~650 V, 1 or 3 phase |
|
Wattage |
Customized |
|
Standard Thickness |
1 inch, 1.5 inch, 2 inch (could be customized) |
|
Maximum wattage density |
1-6 w/sq cm |
|
Sheath temperature |
650°C |
|
Max. operating temp: |
650°C |
|
Wattage tolerance |
+/- 5% |
|
Certificates |
CE, RoHs |
|
Packaging |
Fumigation free wooden case |
|
Material |
|
|
Heating tube |
Stainless steel 304 tube with Cr20Ni80 |
|
Insulation material |
Brass or bronze alloy |
|
Accessories Information |
|
|
Connection |
Connection box, explosion proof connection box, ceramic wiring block, binding posts, plugs etc |
|

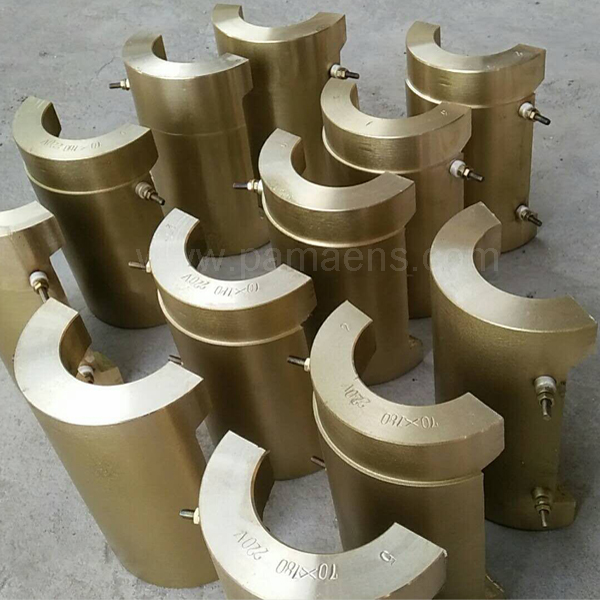

Introductions of Cast Bronze Band Heater / Cast Brass Heater |
|
|
Cast in brass heater or cast in bronze heater is high efficiency heating band, which using high quality heating tube as heating elements, insulated by high quality brass or bronze alloy. Cast in brass heater or cast in bronze heater has high power density, maximum could be 6w/sq cm, and working temperature could be 650-700 deg C. Besides high heating efficiency, the service time of brass or bronze heater is very long, much longer than other types of band heaters. |
|
|
The feature of Cast Bronze Band Heater / Cast Brass Heater |
|
|
Temperature: Brass alloy up to 700℃, |
|
|
Watt Density: Maximum 6 w/sq cm on heater elements |
|
|
Voltage: Up to 650 volts – Single and three phase |
|
|
Roller Size: 2″ diameter and up. 1-1/2 width and up (in 1/2″ increments) |
|
|
Terminal: 1/4 to 20 Post terminals standard |
|
|
Sheath: Stainless Steel (optinal) |
|
|
Mounting Collars:1/4, 3/8, 1/2, 5/8, 3/4Designed Specially for Hot Stamping Efficient |
|
|
Efficient Heat Transfer |
|
|
Various Heater terminations |
|
|
Uniform surface temperatures |
|
|
The applications of Cast Bronze Band Heater / Cast Brass Heater |
|
|
Injection and Blow Mould |
|
|
Extruders |
|
|
Moulds & Dies |
|
|
Packaging machinery |
|
|
Lab equipments |
|
|
RFQ |
|
|
1. Diameter, width, and thickness |
|
|
2. Voltage & wattage |
|
|
3. Connection type |
|
|
4. Wire length if have |
|
|
5. Position of thermocouple holes if have |
|
|
7. Quantity |
|
