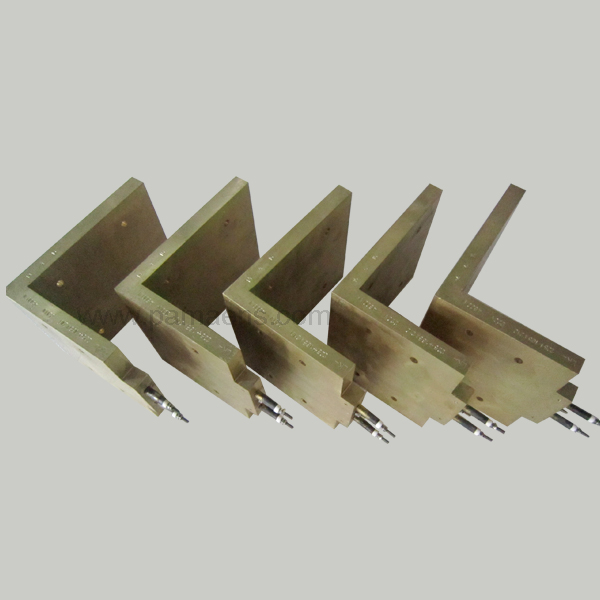

Cast Brass Heating Plate

Short Description:

Heating tube is embedded in to high quality aluminum or brass alloy by mold and cast into different shapes, such as circular, flat, rectangular, air-cooled, water-cooled and other special-shaped. Brass heating plate can be perfect fitted to the heated body after finishing which can be widely used in plastic machinery, die, cable machinery, chemicals, rubber, petroleum and other equipment. Cast brass heating plate features long life, good insulation, corrosion resistance, coersvie field etc. Explosion proof aluminum heating plate is widely used extreme environment.


  • FOB Price: US $20- 99 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 10-25 days
  • Product Detail

    Product Tags

    Specification

    Item Name

    Cast Brass Heating Plate

    Item No.

    PM-CBHP

    Voltage

    110~650 V, 1 or 3 phase

    Wattage

    Customized

    Construction

    Ordinary, water cooled

    Standard Thickness

    1 inch (could be customized)

    Maximum wattage density

    5 w/sq cm

    Sheath temperature

    600°C

    Max. operating temp:

    600°C

    Wattage tolerance

    +/- 5%

    Certificates

    CE, RoHs

    Packaging

    Fumigation free wooden case

    Material

    Heating tube

    Stainless steel 304 tube with Cr20Ni80

    Insulation material

    Aluminum, brass, bronze,iron

    Water tube

    Stainless steel 304 tube (just for water cooled band heater)

    Accessories Information

    Connection

    Connection box, explosion proof connection box, ceramic wiring block, binding posts, plugs etc

    Introductions of Cast Brass Heating Plate

    Heating tube is embedded in to high quality aluminum or brass alloy by mold and cast into different shapes, such as circular, flat, rectangular, air-cooled, water-cooled and other special-shaped. Brass heating plate can be perfect fitted to the heated body after finishing which can be widely used in plastic machinery, die, cable machinery, chemicals, rubber, petroleum and other equipment. Cast brass heating plate features long life, good insulation, corrosion resistance, coersvie field etc. Explosion proof aluminum heating plate is widely used extreme environment.

    The feature of Cast Brass Heating Plate

    Temperature: Aluminum alloy up to 400℃, brass alloy up to 650℃,

    Watt Density: Aluminum alloy – 35 w/sq in on heater elements, Brass alloy  – 45 w/sq in on heater elements

    Voltage: Up to 480 volts – Single and three phase

    Terminal: 1/4 to 20 Post terminals standard

    Efficient Heat Transfer

    Cast-in heaters can be supplied with cooling tubes & end fitting

    Various Shapes fit for different surfaces

    Various Heater terminations

    Uniform surface temperatures

    The applications of Cast Brass Heating Plate

    Injection and Blow Mould

    Extruders

    Moulds & Dies

    Packaging machinery

    Lab equipments

    Attributes of Cast Brass Heating Plate

    Insulation types: Aluminum, brass and iron

    Shapes: circular, flat, rectangular, air-cooled, water-cooled and other special-shaped

    Heating and cooling: Air cooling cast in aluminum/brass heater, cast in water cooling aluminum/brass heater, ordinary cast in aluminum/brass/iron heater

    RFQ

    1. Dimensions (width, length and thickness)

    2. Voltage & wattage

    3. Connection type

    4. Wire length if have

    5. Position of thermocouple holes if have

    6. Types: cast aluminum heating plate or cast brass heating plate

    7. Quantity
