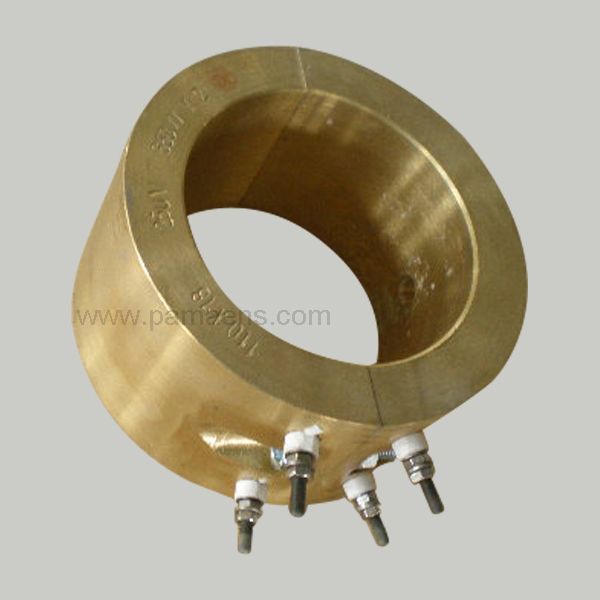

Cast Bronze Band Heater

Short Description:

Cast in brass heater or cast in bronze heater is high efficiency heating band, which using high quality heating tube as heating elements, insulated by high quality brass or bronze alloy. Cast in brass heater or cast in bronze heater has high power density, maximum could be 6w/sq cm, and working temperature could be 650-700 deg C. Besides high heating efficiency, the service time of brass or bronze heater is very long, much longer than other types of band heaters.


  • FOB Price: US $20- 99 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 10-25 days
  • Product Detail

    Product Tags

    Specification

    Item Name

    Cast Bronze Band Heater / Cast Brass Heater

    Item No.

    PM-CBBH

    Voltage

    110~650 V, 1 or 3 phase

    Wattage

    Customized

    Standard Thickness

    1 inch, 1.5 inch, 2 inch (could be customized)

    Maximum wattage density

    1-6 w/sq cm

    Sheath temperature

    650°C

    Max. operating temp:

    650°C

    Wattage tolerance

    +/- 5%

    Certificates

    CE, RoHs

    Packaging

    Fumigation free wooden case

    Material

    Heating tube

    Stainless steel 304 tube with Cr20Ni80

    Insulation material

    Brass or bronze alloy

    Accessories Information

    Connection

    Connection box, explosion proof connection box, ceramic wiring block, binding posts, plugs etc

    Introductions of Cast Bronze Band Heater / Cast Brass Heater

    Cast in brass heater or cast in bronze heater is high efficiency heating band, which using high quality heating tube as heating elements, insulated by high quality brass or bronze alloy. Cast in brass heater or cast in bronze heater has high power density, maximum could be 6w/sq cm, and working temperature could be 650-700 deg C. Besides high heating efficiency, the service time of brass or bronze heater is very long, much longer than other types of band heaters.

    The feature of Cast Bronze Band Heater / Cast Brass Heater

    Temperature: Brass alloy up to 700℃,

    Watt Density: Maximum 6 w/sq cm on heater elements

    Voltage: Up to 650 volts – Single and three phase

    Roller Size: 2″ diameter and up. 1-1/2 width and up (in 1/2″ increments)

    Terminal: 1/4 to 20 Post terminals standard

    Sheath: Stainless Steel (optinal)

    Mounting Collars:1/4, 3/8, 1/2, 5/8, 3/4Designed Specially for Hot Stamping Efficient

    Efficient Heat Transfer

    Various Heater terminations

    Uniform surface temperatures

    The applications of Cast Bronze Band Heater / Cast Brass Heater

    Injection and Blow Mould

    Extruders

    Moulds & Dies

    Packaging machinery

    Lab equipments

    RFQ

    1. Diameter, width, and thickness

    2. Voltage & wattage

    3. Connection type

    4. Wire length if have

    5. Position of thermocouple holes if have

    7. Quantity
