High Quality Ceramic Heater & Fins & Air Blower
Introduction of Ceramic Heater & Fins & Air Blower
Ceramic Heaters & Fins & Air Blowers are mainly suitable for fully extruded parts. They are combined of several heaters with cooling system. According to the applications, the main parts can be combined into one system, as the extrusion cylinder is completely covered, the temperature will be uniform, and at the same time it has a bigger radiation area. It can also eliminate the frictional heat caused by extrusion. As the ceramic beads have good conductivity, using it as insulator, the heater could heat up and cool down faster and more efficiently. This heater is recommended for customers with high cost performance requirements.
Applications of Ceramic Heater & Fins & Air Blower
(Especially for Products which are sensitive to temperature.)
Container Pipe and Tank Heating
Chemical, Oil & Gas Industries
Types of Ceramic Heater & Fins & Air Blower
Air cooled ceramic heater
Air cooled mica heater
Air cooled aluminum heater
Air cooled ceramic heater with ceramic fins
Air cooled ceramic heater with copper fins
Air cooled ceramic heater with nickel plated copper fins
Features of Ceramic Heater & Fins & Air Blower
These Fins are available in width of 45mm, 60mm & 75mm.
Aluminium Fins take 25% & Copper fins takes 35% less time to reach set temperature of 350° C than standard Fins.
Aluminium Fins take 30% & Copper fins takes 35% less time for cooling from 350° C to 100° C than standard Fins.
If working temperature requirement is around 300° to 350° C, it is recommended to use Aluminium Fins as it is cost wise economical.
Aluminium & Copper cooling fins have a maximum operating temperature of 450° C.
These fins can also be used in mounting between heaters as cooling fins.
Advantages of Ceramic Heater & Fins & Air Blower
To heat and cool the barrel
Improves Quality of finished products
Available with Various Diameter, Length, Voltage, Wattage and Configurations.
Perforated heater with fins to provide faster cooling.

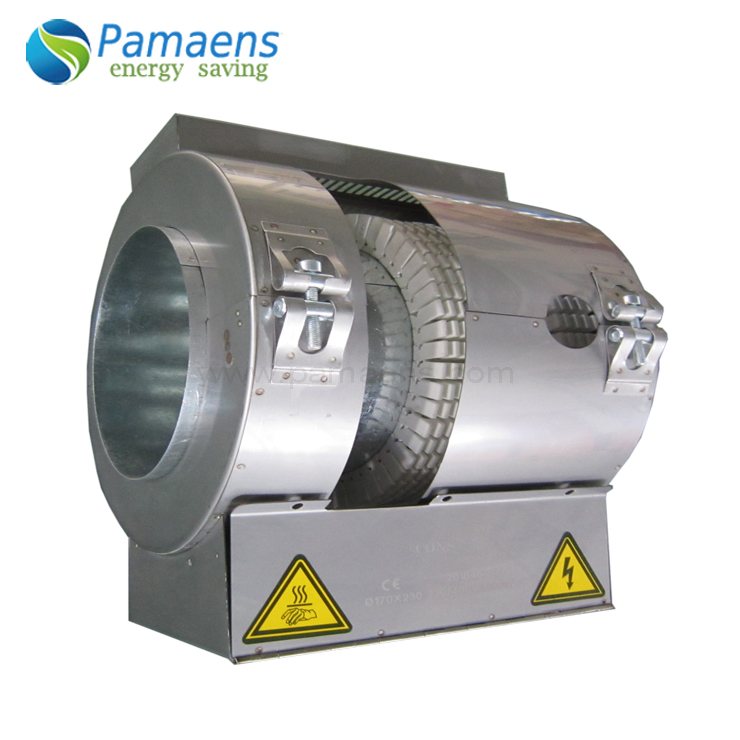

Reference pictures of Ceramic Heater & Fins & Air Blower
Fumigation free wooden case or paper box for Ceramic Heater & Fins & Air Blower.
Order Guidance of Ceramic Heater & Fins & Air Blower
- Width/diameter and Length
- Lead wire type and length
