High Efficiency Aluminum Cast Heating Plate Made of New Aluminum Pig

Short Description:

Aluminum Cast Heating Plate combine top quality tubular heaters and high thermal conductivity non-ferrous alloys. The heating elements are tested 100% before and after casting.


  • FOB Price: US $20- 250 / Piece
  • Min.Order Quantity: 2 Piece/Pieces
  • Supply Ability: 1000 Pieces per Month
  • Shipping: Express, ocean shipping, air shipping
  • Payment Terms: T/T, PAYPAL, WESTERN UNION
  • Production time: 10-25 days
  • Product Detail

    Product Tags

    Introduction of Aluminum Cast Heating Plate

    Aluminum Cast Heating Plate combine top quality tubular heaters and high thermal conductivity non-ferrous alloys. The heating elements are tested 100% before and after casting. Modern foundry techniques ensure a dense, porosity free casting. After casting the heaters are machined to ensure a close contact on the working surface. Cast In heaters can be supplied with clamping straps or with built in clamping means.



    PAMAENS could supply ordinary cast in heater, cast in water cooling heater and cast in air cooling heaters with air blowers in shape of band or flat. Heaters with leads in armor, post terminals, terminal housing and a variety of electrical terminations are available. Standard cooling tube terminations are also available. Casting quality is maintained by periodic radiographic testing. Diagnostic radiography services are available if required.



    Classification of Aluminum Cast Heating Plate

    Insulation types: Aluminum, brass and iron

    Shapes: Band type and flat type

    Heating and cooling: Air cooling cast in aluminum/brass heater, cast in water cooling aluminum/brass heater, ordinary cast in aluminum/brass/iron heater

    Heating type: Inner heating and outer heating



    Features of Aluminum Cast Heating Plate

    • Temperature: Aluminum alloy up to 400℃, brass alloy up to 650℃,
    • Watt Density: Aluminum alloy – 35 w/sq in on heater elements, Brass alloy  – 45 w/sq in on heater elements
    • Voltage: Up to 480 volts – Single and three phase
    • Roller Size: 2″ diameter and up. 1-1/2 width and up (in 1/2″ increments)
    • Terminal: 1/4 to 20 Post terminals standard
    • Shealth: Stainless Steel
    • Mounting Collars:1/4, 3/8, 1/2, 5/8, 3/4Designed Specially for Hot Stamping Efficient
    • Efficient Heat Transfer
    • Cast-in heaters can be supplied with cooling tubes & end fitting
    • Various Heater terminations
    • Uniform surface temperatures

    Applications of Aluminum Cast Heating Plate

    • Injection and Blow Mould
    • Extruders
    • Moulds & Dies
    • Packaging machinery
    • Lab equipments

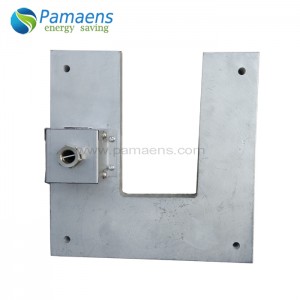

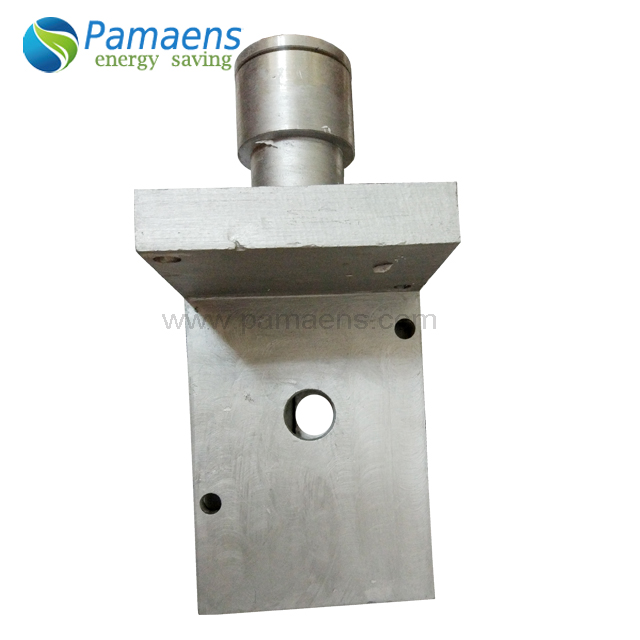

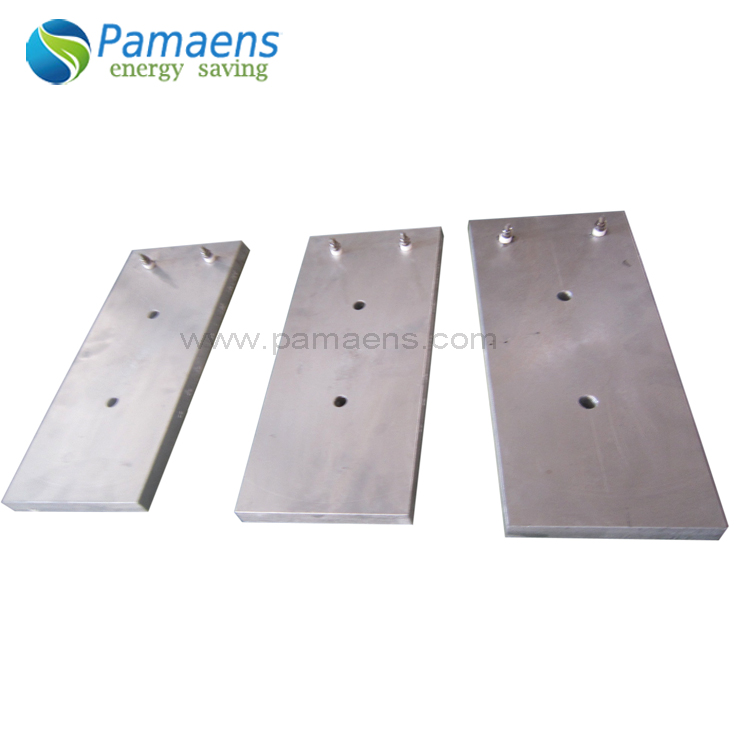

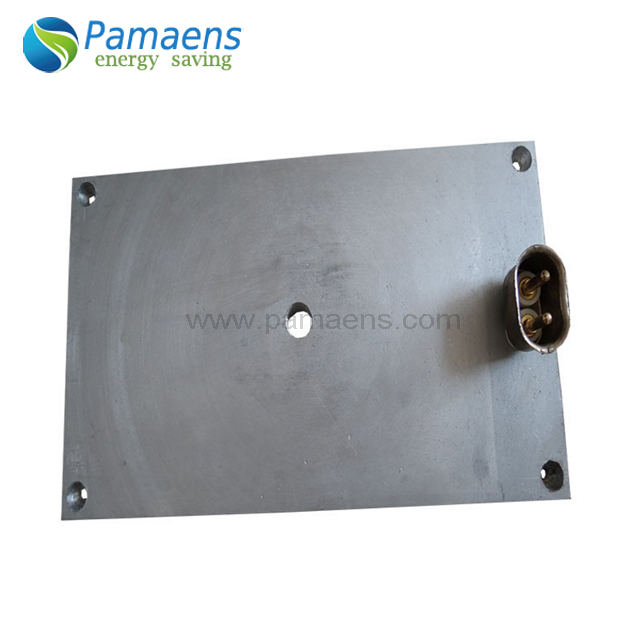

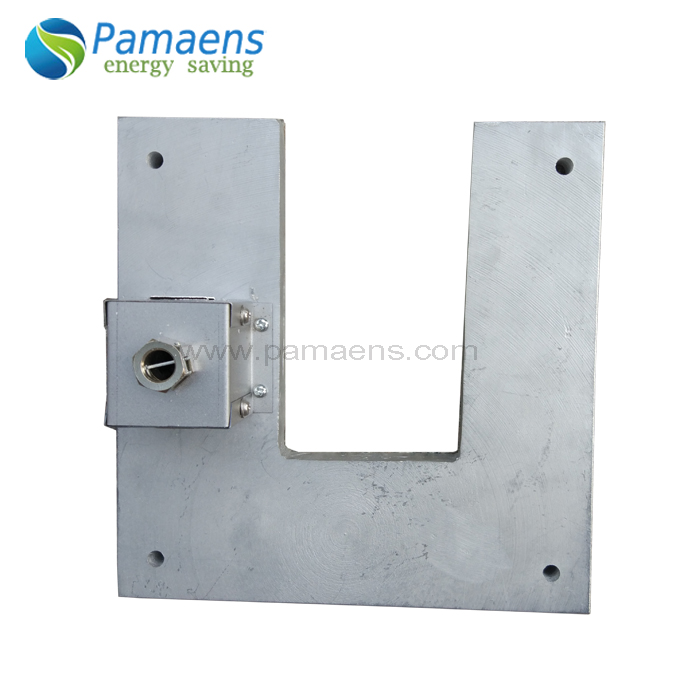

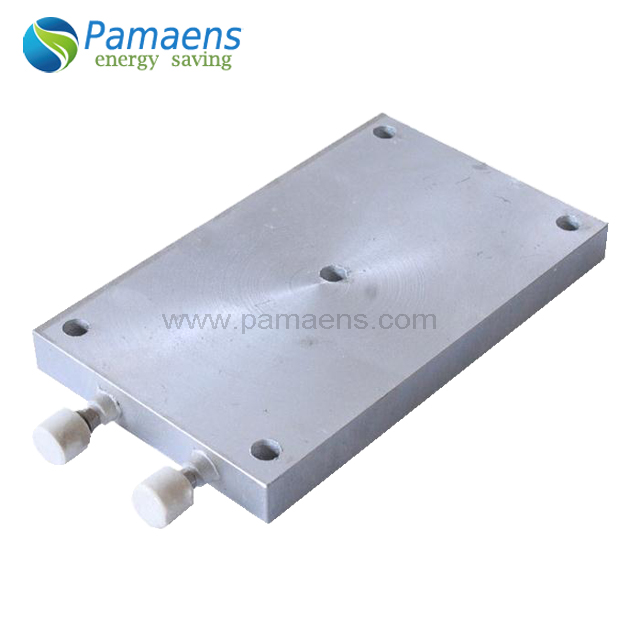

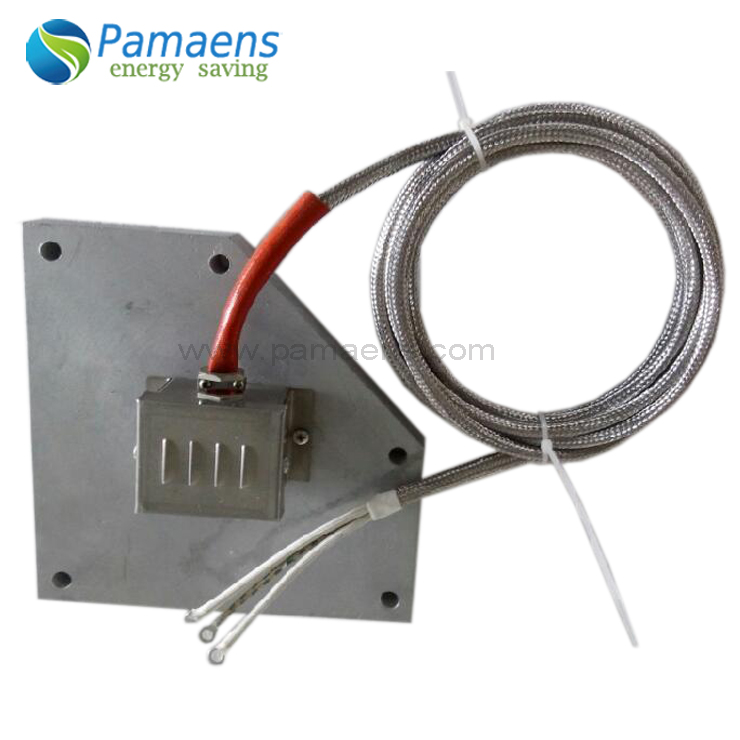

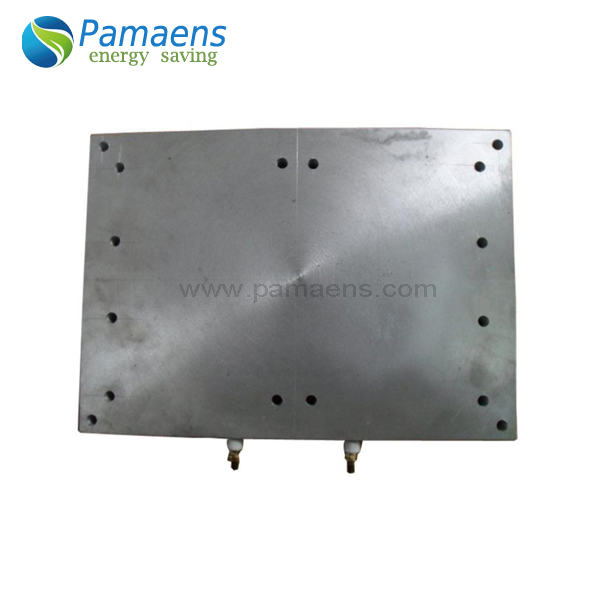

    Reference pictures of Aluminum Cast Heating Plate





    cast aluminum plate heater cast aluminum plate heater
    cast aluminum plate heater cast aluminum plate heater
    Cast aluminum heater-37.jpg Cast aluminum heater-62.jpg
    cast aluminum plate heater cast aluminum plate heater
    cast aluminum plate heater cast aluminum plate heater




    Packaging & Shipping

    Fumigation free wooden case or paper box for Aluminum Cast Heating Plate

    cast heater

    Our Services

    cast heater

    Company Information

    Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.

    cast heater



    FAQ

    Order Guidance of Aluminum Cast Heating Plate

    1. Width and Length
    2. Voltage
    3. Power
    4. Lead type and length(connection and fitting type, leads length)
    5. Quantity

    Question and reply you may concern

    About us:

    We are factory and exporter, own ISO9001 and  Research and development team and QC department.



    Do you accept customized?

    Yes , we are ready to turn your great design into perfect products, of course, your special design will be completely confidential. At same time, we are good designer ourselves.



    How is your shipping?

    We could send the goods on your instruction, if you do not want to handle shipping yourself, we could handle shipping for you. Shortest delivery time and lowest freight are our target, so the freight we provided are always the best, because we check many forwarders and get the best freight for you.



    Our advantages:

    Lowest default rate

    One to two year warranty

    Best and on time after sale service

    You are worried, we would like you to think



    How to contact with us?

    cast heater
